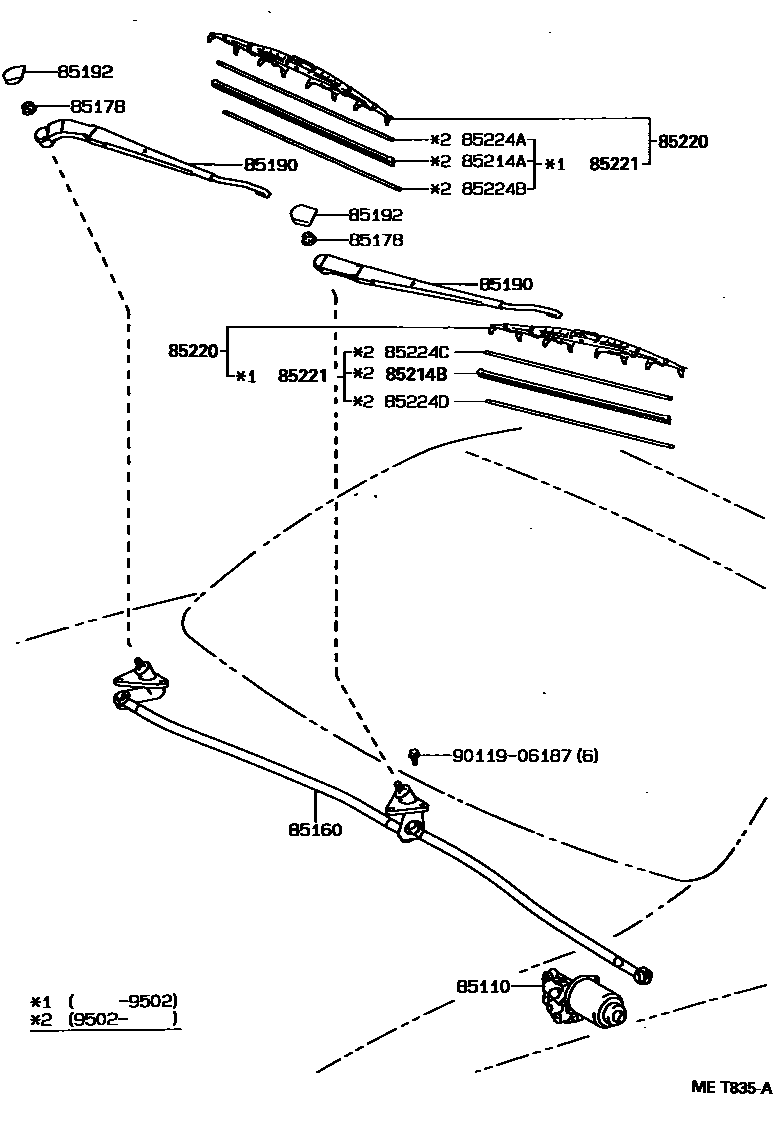

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12800iAE10#,CE100,EE101..RHD199205

main85110-12810iAE10#,CE100,EE10#..LHD199205

85160LINK ASSY, WINDSHIELD WIPER

main85150-12780iAE10#,CE100,EE10#..LHD199205

main85150-12810iAE10#,CE100,EE101..RHD199205

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113×2iAE10#,CE100,EE10#199205

85190ARM ASSY, WINDSHIELD WIPER

main85211-12300iAE10#,CE100,EE10#..LHD199205

RH

main85211-12310iAE10#,CE100,EE101..RHD199205-199301

RH

main85211-12311iAE10#,CE100,EE101..RHD199301

RH

main85221-12260iAE10#,CE100,EE101..RHD199205-199301

LH

main85221-12261iAE10#,CE100,EE101..RHD199301

LH

main85221-12280iAE10#,CE100,EE10#..LHD199205

LH

85192COVER, WINDSHIELD WIPER ARM

main85292-12020×2iAE10#,CE100,EE10#199205

85214ARUBBER, WIPER, RH

main85214-20330iAE10#,CE100,EE10#..LHD199502

main85214-30260iAE10#,CE100,EE101..RHD199502

85214BRUBBER, WIPER, LH

main85214-20320iAE10#,CE100,EE101..RHD199502

main85214-30260iAE10#,CE100,EE10#..LHD199502

85220BLADE ASSY, WINDSHIELD WIPER

main85212-12300iAE10#,CE100,EE10#..LHD199205-199212

RH

main85212-12301iAE10#,CE100,EE10#..LHD199212

RH

sub85212-16092

main85212-12310iAE101,CE100,EE101..RHD199205-199210

RH

main85212-12311iAE10#,CE100,EE101..RHD199210-199301

RH

main85212-12312iAE10#,CE100,EE101..RHD199301

RH

main85222-12690iAE101,CE100,EE101..RHD199205-199210

LH

main85222-12691iAE10#,CE100,EE101..RHD199210-199301

LH

main85222-12692iAE10#,CE100,EE101..RHD199301

LH

main85222-12720iAE10#,CE100,EE10#..LHD199205-199212

LH

main85222-12721iAE10#,CE100,EE10#..LHD199212

LH

sub85222-1G100

85221BLADE, WINDSHIELD WIPER

main85213-12300iAE101,CE100,EE10#..LHD199205-199210

LH

main85213-12310iAE101,CE100,EE10#..LHD199205-199210

RH

main85213-12330iAE10#,CE100,EE101..RHD199210-199502

LH

main85213-30270iAE10#,CE100,EE10#..LHD199210-199502

RH

main85223-1G040iAE101,CE100,EE101..RHD199205-199210

LH

main85223-30400iAE10#,CE100,EE101..RHD199210-199502

LH

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-30380iAE10#,CE100,EE101..RHD199502

main85224-30430iAE10#,CE100,EE10#..LHD199502

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-30380iAE10#,CE100,EE101..RHD199502

main85224-30420iAE10#,CE100,EE10#..LHD199502

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-30380iAE10#,CE100,EE10#..LHD199502

main85224-30430iAE10#,CE100,EE101..RHD199502

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-30380iAE10#,CE100,EE10#..LHD199502

main85224-30420iAE10#,CE100,EE101..RHD199502

9011906187

main90119-06187

14 parts on this diagram · 1 diagram in section
