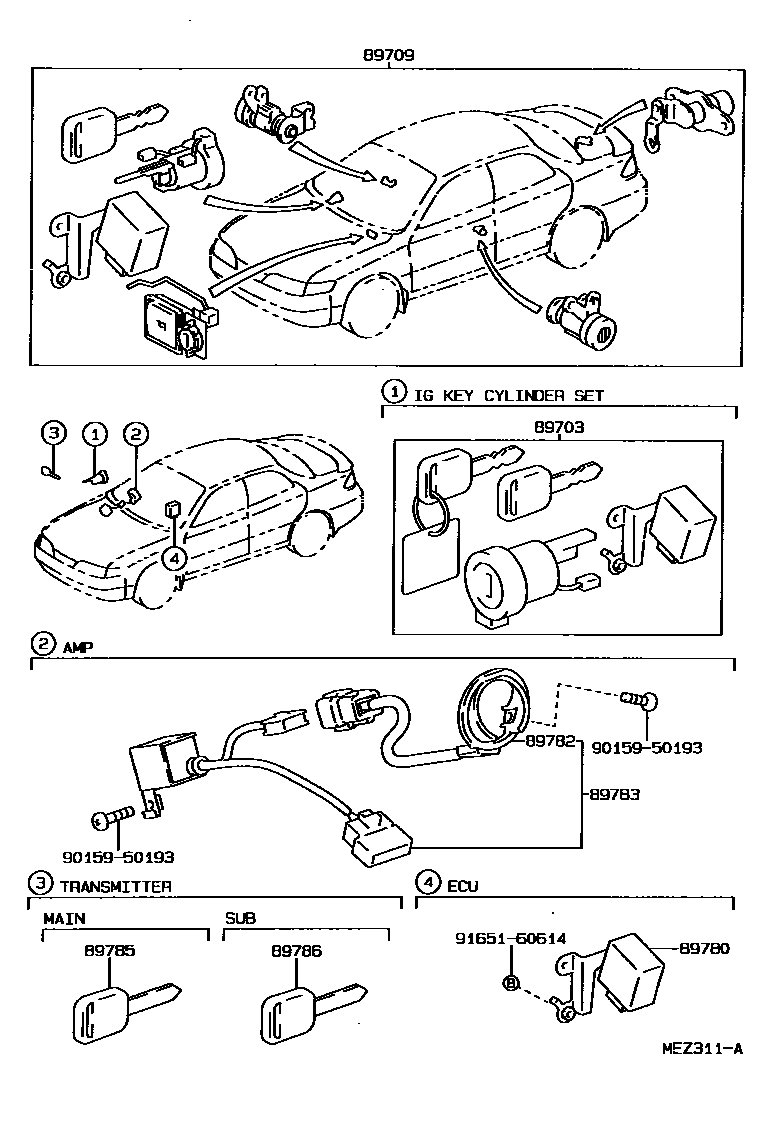

ANTI-THEFT DEVICE

0001 1 0002 1

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-12010iAE101,EE101..RHD199505

main89703-12030iAE101,EE101..LHD199505

main89703-12070iCE100..RHD199605

main89703-12090iCE100..LHD199605

89709COMPUTER SET, TRANSPONDER KEY

main89709-12120iAE101,EE101..LHD..(GLI,SI,XLI)199505

main89709-12140iEE101..STD199505

main89709-12150iAE101,EE101..RHD199505

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-12010iAE101,EE101..RHD199505

main89780-12030iAE101,EE101..LHD199505

89782COIL, TRANSPONDER KEY

main89782-12010iAE101,EE101199505-199605

89783AMPLIFIER, TRANSPONDER KEY

main89783-12010iAE101,EE101199505-199605

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-12020iAE101,EE101199505-199605

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-12020iAE101,EE101199505-199605

9015950193

main90159-50193

9165160614

main91651-60614

9 parts on this diagram · 2 diagrams in section
