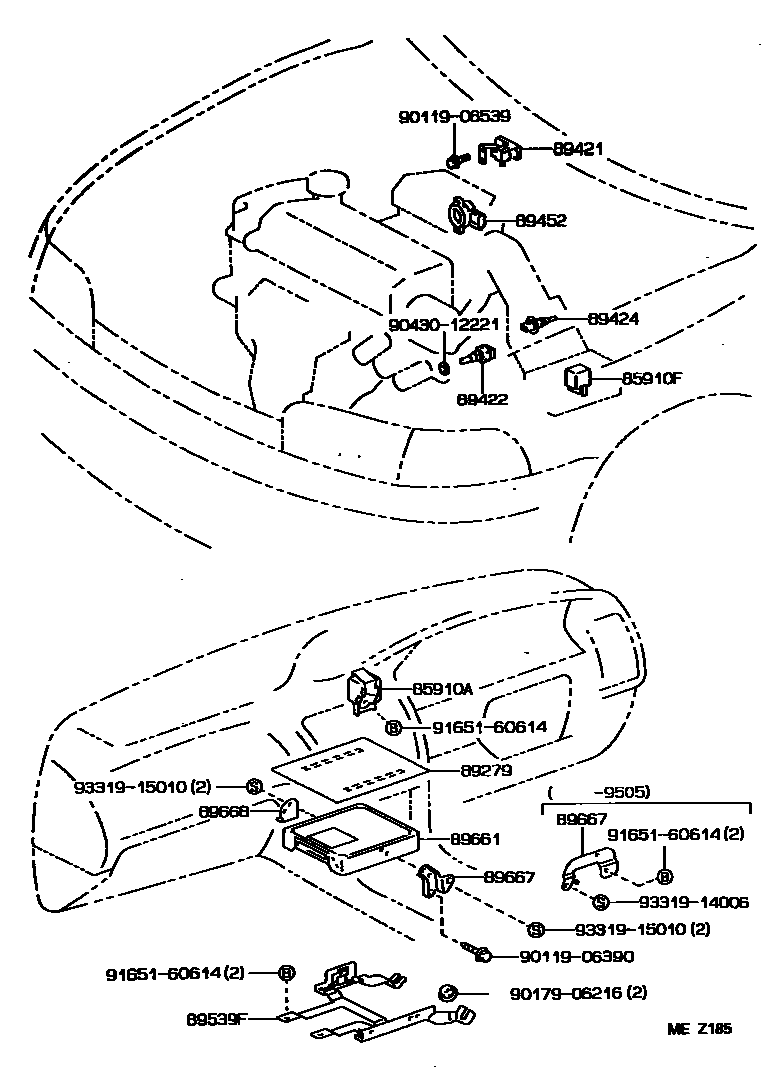

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-12020iAE10#,EE101..RHD199205

main85910-12060iAE10#,EE101..LHD199205

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iAE10#,EE101199206-199211

main90987-02010iAE101,EE101199205-199211

sub90987-02009

89279COVER, ENGINE CONTROL COMPUTER

main89279-12080iAE10#,EE101199205-199407

main89279-12100iAE101199505

main89279-12110iAE10#,EE101199407-199505

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-02010iAE101,EE101..LHD199404-199704

main89420-12060iAE10#..RHD199205-199402

FUJI

sub89420-12070

main89420-12070iAE101,EE101..RHD199205-199402

NIPPONDENSO

main89420-12070iAE10#,EE101..RHD199402-199704

main89420-12090iAE10#,EE101..LHD199205-199404

sub89420-02010

main89420-12090iAE10#..LHD199404-199703

NIPPONDENSO

sub89420-02010

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iEE101199205

main89422-35010iAE10#199205

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAE10#,EE101199205

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-10010iEE101199205-199505

main89452-10040iEE101199702

sub89452-20130

main89452-20130iEE101199601-199702

main89452-22090iAE101199205-199601

89539FBRACKET, COMPUTER

main89539-12050iAE10#,EE101199205-199505

89661COMPUTER, ENGINE CONTROL

main89661-12880iAE101199205-199505

main89661-1A040iAE102199211-199505

main89661-1A080iEE101199205-199505

main89661-1A340iAE101199505-199605

main89661-1A410iEE101..5F199505

main89661-1A420iEE101..3FC199505

main89661-1A500iEE101199505

W(ANTI THEFT DEVICE)

main89661-1A560iAE101199505-199605

W(ANTI THEFT DEVICE)

main89661-1A650iAE101..5F199605

main89661-1A660iAE101..5F199605

W(ANTI THEFT DEVICE)

main89661-1A670iAE101..4FC199605

main89661-1A680iAE101..4FC199605

W(ANTI THEFT DEVICE)

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12110iAE10#,EE101199205-199505

main89667-12120iAE101,EE101199505

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12050iAE10#,EE101199205

9011906390

main90119-06390

9011906539

main90119-06539

9017906216

main90179-06216

9043012221

main90430-12221

9165160614

main91651-60614

9331914006

main93319-14006

9331915010

main93319-15010

18 parts on this diagram · 2 diagrams in section
