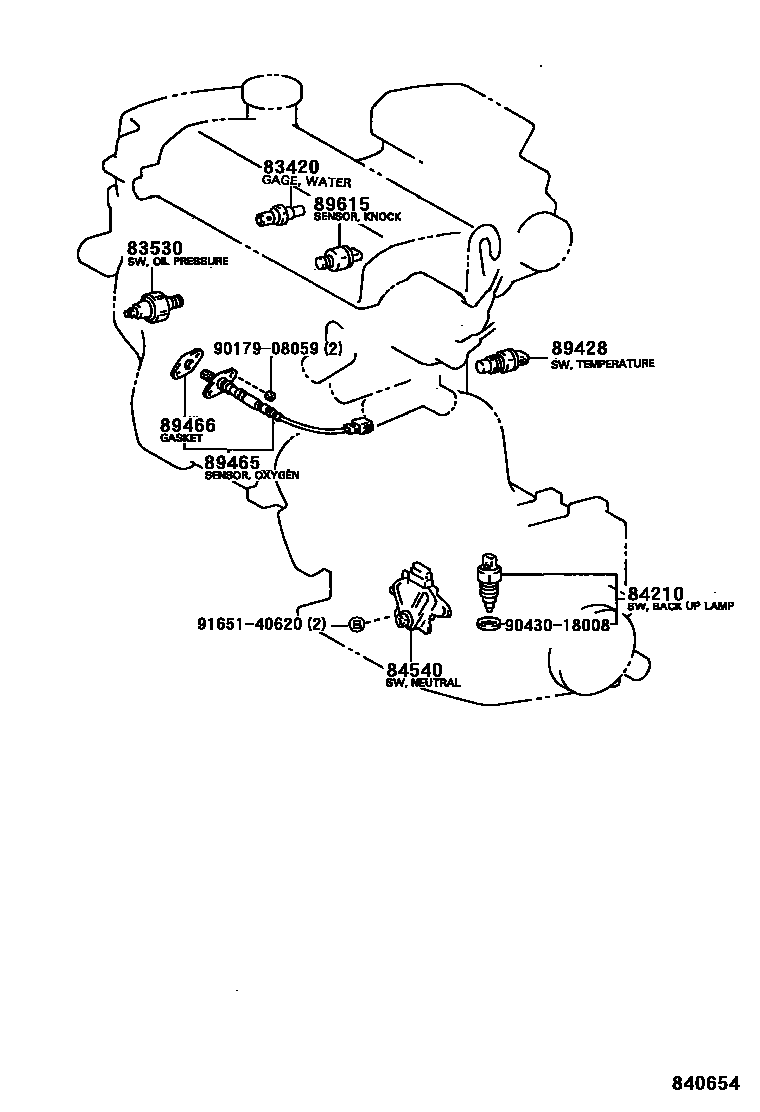

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSAXLE 0002 1ENGINE & TRANSAXLE 0003 1ENGINE & TRANSAXLE 0004 1ENGINE ROOM 0005 1INSTRUMENT PANEL SWITCH 0006 1INSTRUMENT PANEL SWITCH 0007 1COWL RH 0008 1COWL LH 0009 1COWL LH 0010 1COWL RH 0011 1COMBINATION SWITCH 0012 1COMBINATION SWITCH 0013 1ROOF & FRONT DOOR 0014 1FLOOR,REAR DOOR & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEE10#199205

main83420-16050iAE10#199205-199212

main83420-20020iCE100199205

main83420-20040iAE10#199212-199402

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iEE10#199205-199411

NIPPONDENSO

main83530-30051iAE101199205-199208

sub83530-60050

main83530-30090iEE10#199205-199409

YAZAKI

sub83530-60020

main83530-30100iCE100199205

sub83530-60010

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAE10#,CE100,EE10#..5F199205

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16040iAE101,EE101..ATM199205-199505

main84540-16050iAE101,EE101..ATM199505-199704

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iAE10#,EE10#199205

main89428-33010iCE100199205

89465SENSOR, OXYGEN

main89465-12410iAE101..4FC199605

main89465-19575iAE101199505-199605

main89465-19675iEE101199505

89466GASKET, OXYGEN SENSOR

main89466-12020iAE101,EE101..3FC,5F199605

89615SENSOR, KNOCK CONTROL

main89615-12030iAE10#199205-199704

TOYOTA

sub89615-22050

main89615-22030iAE10#199205-199704

MATSUSHITA

9017908059

main90179-08059

9043018008

main90430-18008

9165140620

main91651-40620

11 parts on this diagram · 14 diagrams in section
