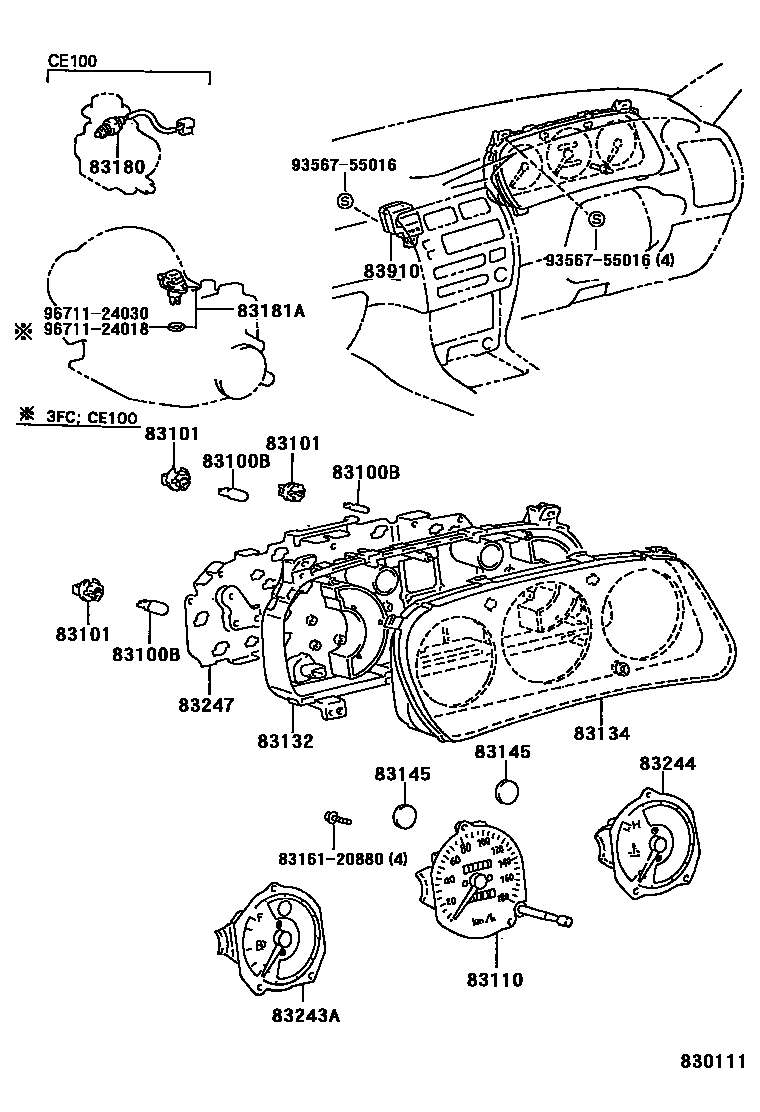

METER

0001 1W/O(TACHOMETER) 0002 1W/O(TACHOMETER) 0003 1W(TACHOMETER) 0004 1W(TACHOMETER) 0005 1W(TACHOMETER) 0006 1W(TACHOMETER)

83100BBULB, COMBINATION METER, NO.1

main83109-12030iAE10#,CE100,EE10#199205

12V 3.4W,BLUE CAP

main83109-95J00×4iCE100,EE101..RHD..(XL,XLI)199205-199301

14V 3.78W

main83119-1A020×4iCE100,EE101..RHD..(XL,XLI)199505

12V 3.4W,W(BLUE CAP)

main83119-24010iAE101..SI199505-199605

12V 1.4W W(SOCKET)

main83119-24430iAE101,EE101..RHD..(GLI,XLI)199505

12V 1.4W BLUE CAP

main83119-24710×3iAE101..RHD..SI199505-199605

14V 3.4W,ORANGE CAP

main83119-24730iAE101..SI199505-199605

14V 1.4W,ORANGE CAP

main83119-2A100×4iCE100,EE101..RHD..(XL,XLI)199301-199505

14V 3.8W,W(BLUE CAP)

main83119-32010iAE101..SI,XLI;CE100,EE101..LHD199605

14V 3.0W

main83120-60010×2iCE100,EE101..RHD..(XL,XLI)199605-199704

14V 2.0W

main90981-11018iAE10#,CE100,EE10#199205

12V 1.2W W/O SOCKET

main99132-12034iAE10#,CE100,EE10#199205

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iEE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;AE101..HB..LHD..5F..GLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI199205-199704

12V 3.4W

main83101-14040iEE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;AE101..HB..LHD..5F..GLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI199205-199704

12V 1.4W

main83101-20040iCE100,EE101..RHD..(XL,XLI)199605-199704

12V 3W,3.4W

main83101-32020iAE101..SI,XLI;CE100,EE101..LHD199605-199704

14V 3.0W

83110SPEEDOMETER ASSY

main83110-1E680iCE100..RHD199205-199405

main83110-1E681iCE100..RHD199405

main83110-1E730iAE101..RHD199205-199405

main83110-1E731iAE101..RHD..GLI199505

main83110-1E850iEE101..RHD..XLI199205-199405

main83110-1E851iEE101..RHD..XLI199405

main83110-1E860iEE101..RHD..XLI199205-199405

W(TACHOMETER)

main83110-1E861iEE101..RHD..GLI199405

W(TACHOMETER)

main83110-1E880iAE102..RHD199211-199405

main83110-1E881iAE102..RHD199405-199505

main83110-1E882iAE101..RHD..SI199505-199605

main83110-1H010iAE102..LHD199211-199505

main83110-1H011iAE101..XLI199605

KM/H(WHITE) & W(TACHOMETER)

main83110-1H040iAE101..XLI199205-199505

main83110-1H050iCE100,EE100..LHD199205-199505

main83110-1H060iEE101..LHD..(STD,XLI)199205-199505

main83110-1H061iEE101..LHD199505

main83110-1H110iEE101..LHD..GLI199205-199505

main83110-1H120iEE100199205-199505

W(TACHOMETER)

main83110-1H130iAE101..XLI199205

W(TACHOMETER)

main83110-1H330iAE101..XLI199505

main83110-1H340iCE100..LHD199505

main83220-12030iEE101..RHD..XLI199605

MILE/KM,W(TACHOMETER)

main83220-12040iEE101..LHD..XLI199605

KM/H(WHITE) & W(TACHOMETER)

main83220-12050iAE101..RHD..SI199605

83132CASE, COMBINATION METER

main83132-1A530iAE101,EE101..RHD..GLI199505

main83132-1A590iAE101..RHD..SI199505-199605

main83132-1A610iAE101,CE100,EE10#..LHD..(STD,XL,XLI)199205

main83132-1A630iAE101,EE101..LHD..(GLI,SI)199205-199505

main83132-1A650iAE101..LHD..SI199505

main83132-1E040iCE100,EE101..RHD..(XL,XLI)199205

main83841-12520iAE101..RHD..SI199605

83134COVER, COMBINATION METER, NO.1

main83134-1E040iCE100,EE101..RHD..(XL,XLI)199205-199704

83145LENS, METER, NO.1

main83145-89320×2iCE100,EE101..RHD..(XL,XLI)199205

83180DETECTOR ASSY, REVOLUTION

main83180-12020iCE100199605

W(ANTI THEFT DEVICE)

main83180-32020iCE100..HB199205

83181ASENSOR, SPEEDOMETER

main83181-12020iAE10#,EE10#..4FC,5F199205

main83181-12030iCE100199205

main83181-12040iEE101..3FC199205

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-1E100iCE100,EE101..RHD..(XL,XLI)199205-199305

main83243-1E140iCE100,EE101..RHD..(XL,XLI)199305

main83243-1H170iEE10#..LHD..(STD,XL,XLI)199205-199305

W(TACHOMETER)

main83243-1H171iEE101..LHD..GLI199305-199505

main83243-1H190iAE101..LHD..(GLI,SI)199205-199305

W(TACHOMETER)

main83243-1H191iAE101..XLI199305

W(TACHOMETER)

main83243-1H250iAE102..RHD199211-199305

main83243-1H251iAE102..RHD199305-199505

main83243-1H270iAE102..LHD199211-199305

main83243-1H271iAE102..LHD199305-199505

main83243-1H272iAE101..LHD..SI199505

main83243-1H351iEE101..LHD199505

main83243-1H370iAE101..XLI199205-199305

main83243-1H371iAE101..XLI199305-199505

main83243-1H390iEE101..LHD..(STD,XLI)199205-199305

main83243-1H391iEE101..LHD..(STD,XLI)199305-199505

main83243-1H410iCE100..LHD199205-199305

main83243-1H411iCE100..LHD199305

main83243-1H470iEE101..RHD..XLI199205-199305

W(TACHOMETER)

main83243-1H471iEE101..RHD..XLI199305

W(TACHOMETER)

main83243-1H510iEE100199205-199305

main83243-1H511iEE100199305-199505

main83243-1H590iAE101..XLI199505

main83243-1H690iAE101..RHD..SI199505

main83882-12540iEE101..RHD..XLI199605

W(SPEEDOMETER---MILE/KM & TACHOMETER)

main83882-12550iEE101..LHD..XLI199605

KM/H(WHITE) & W(TACHOMETER)

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-1A890iEE101..RHD..XLI199205

W(TACHOMETER)

main83244-1E030iAE101,EE101..LHD..(STD,XLI)199205-199505

W(TACHOMETER)

main83244-1E031iAE101..LHD..GLI199505

W(TACHOMETER)

main83244-1E050iEE100199205-199505

W(TACHOMETER)

main83244-1E080iEE101..RHD..XLI199205

main83244-1E100iCE100..RHD199205

main83244-1E150iAE101,EE10#..LHD..(STD,XL,XLI)199205

main83244-1E170iCE100..LHD199205

main83883-12540iEE101..RHD..XLI199605

W(SPEEDOMETER---MILE/KM & TACHOMETER)

main83883-12550iEE101..LHD..XLI199605

KM/H(WHITE) & W(TACHOMETER)

83247PLATE, METER CIRCUIT

main83149-12050iAE101,EE10#..LHD..(STD,XL,XLI)199205-199505

main83149-12051iAE101,EE101..LHD..(STD,XLI)199505-199605

main83149-12070iCE100..LHD199205-199505

main83149-12071iCE100..LHD199505-199605

main83149-12150iEE101..RHD..XLI199205

W(TACHOMETER)

main83149-12170iAE101..RHD199205-199505

main83149-1E060iEE101..RHD..XLI199205

main83149-1E080iCE100..RHD199205

main83247-1H690iAE101,EE101..LHD..(GLI,SI)199205-199505

W(TACHOMETER)

main83247-1H691iAE101,EE101..LHD..(STD,XLI)199505-199605

W(TACHOMETER)

main83247-1H790iAE101..RHD..SI199505-199605

main83247-1H830iAE102..LHD199211-199505

main83247-1H831iAE101..LHD..SI199505-199605

main83861-12450iAE101..LHD..GLI199605

W(TACHOMETER)

main83861-12470iAE101,EE101..LHD..(STD,XLI)199605

main83861-12490iCE100..LHD199605

main83861-12510iAE101..LHD..(SI,XLI)199605

KM/H(WHITE) & W(TACHOMETER)

main83861-12520iAE101..RHD..SI199605

83910CLOCK ASSY

main83910-12460iAE10#,CE100,EE101..RHD199205

JECO

main83910-12470iAE10#,CE100,EE10#..LHD199205

main83910-12480iAE10#,CE100,EE101..RHD199205

RHYTHM

8316120880CASE, COMBINATION METER MIRROR, NO.1

main83161-20880

9356755016

main93567-55016

9671124018

main96711-24018

9671124030

main96711-24030

16 parts on this diagram · 6 diagrams in section
