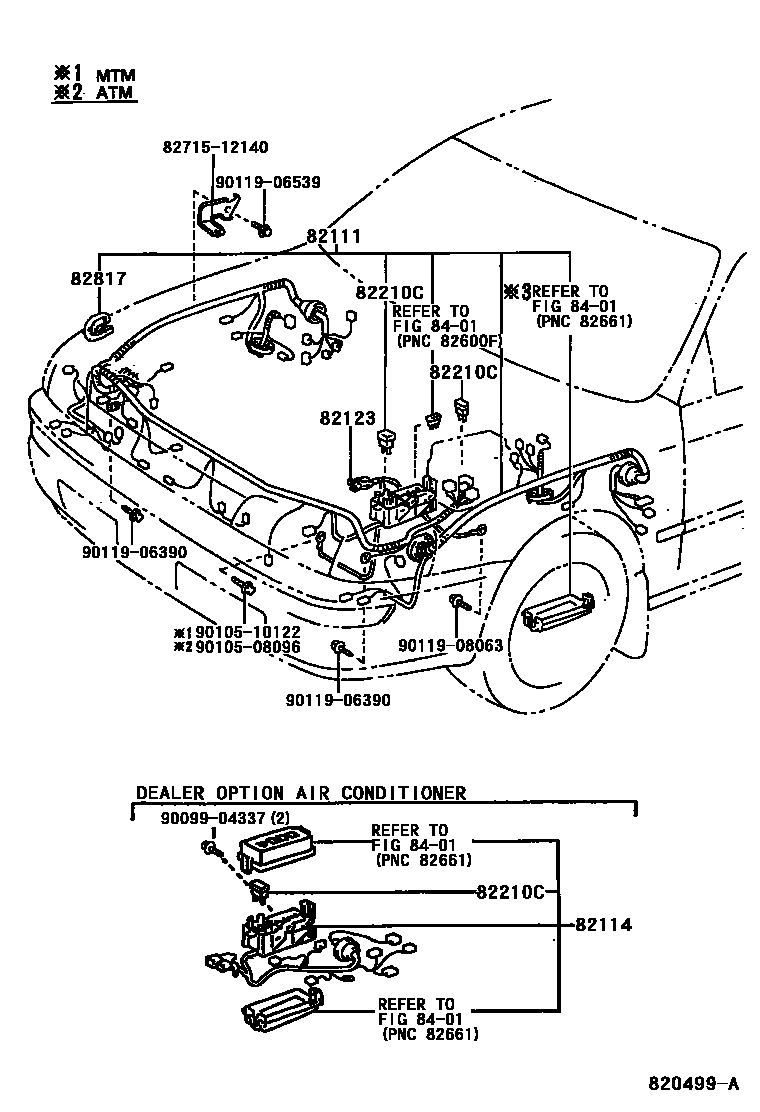

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
W(ABS)
W(ABS)
W(ABS)
NORWAY,ICELAND OR SWEDEN SPEC
NORWAY,ICELAND OR SWEDEN SPEC
ICELAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS)
*FRG
*FRG
*FRG & W(ABS)
EUROPEAN POSSESSION SPEC OR ISRAEL SPEC
EUROPEAN POSSESSION SPEC OR ISRAEL SPEC
EUROPEAN POSSESSION SPEC
EUROPEAN POSSESSION SPEC
W(ABS)
*FRG & W(HEAD LAMP CLEANER)
*FRG & W(HEAD LAMP CLEANER)
W(ABS)
W(ABS)
W(ABS)
W(ABS)
W(ABS)
W(ABS)
W(ABS)
W(ABS)
W(ABS)
ICELAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS)
FINLAND SPEC & W(ABS),NORWAY SPEC & W(ABS),ICELAND SPEC & W(ABS) OR DENMARK SPEC &W(ABS)
NORWAY SPEC & W(ABS),ICELAND SPEC & W(ABS),DENMARK SPEC & W(ABS) OR SWEDEN SPEC &W(ABS)
*FRG & W(ABS)
*FRG & W(ABS)
*FRG & W(ABS)
FINLAND SPEC
FINLAND SPEC
FINLAND SPEC & W(ABS)
FINLAND SPEC & W(ABS)
W(ABS)
W(ABS)
W(ABS)
W(WVTA VIN PLATE)
W(ABS) & W/O(REAR SEAT)
NORWAY SPEC OR DENMARK SPEC & W/O(REAR SEAT)
NORWAY SPEC & W(ABS) OR DENMARK SPEC & W(ABS) & W/O(REAR SEAT)
FINLAND,NORWAY OR DENMARK SPEC
SWEDEN SPEC & W(ABS)
EUROPEAN POSSESSION SPEC & W(WVTA VIN PLATE &SMOKE LAVEL);EUROPEAN POSSESSION SPEC& W/O(REAR SEAT)
EUROPEAN POSSESSION SPEC & W(WVTA VIN PLATE)
ROYAL SPECIAL(GERMANY)
EUROPEAN POSSESSION SPEC
EUROPEAN POSSESSION SPEC
82114WIRE, ENGINE ROOM, NO.4
W(ABS)
W(ABS)
W(ABS)
82123WIRE, ENGINE, NO.3
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK
80A,TERM.:MALE,BLK
GLOW RESISTER
50A,TERM.:MALE,RED
100A,TERM.:MALE,BLUE
40A,TERM.:MALE,GRN
82817PROTECTOR, WIRING HARNESS, NO.1
8401
8271512140BRACKET,WIRING HARNESS CLAMP
main82715-12140
9009904337
main90099-04337
9010508096
main90105-08096
9010510122
main90105-10122
9011906390
main90119-06390
9011906539
main90119-06539
9011908063
main90119-08063
13 parts on this diagram · 16 diagrams in section
