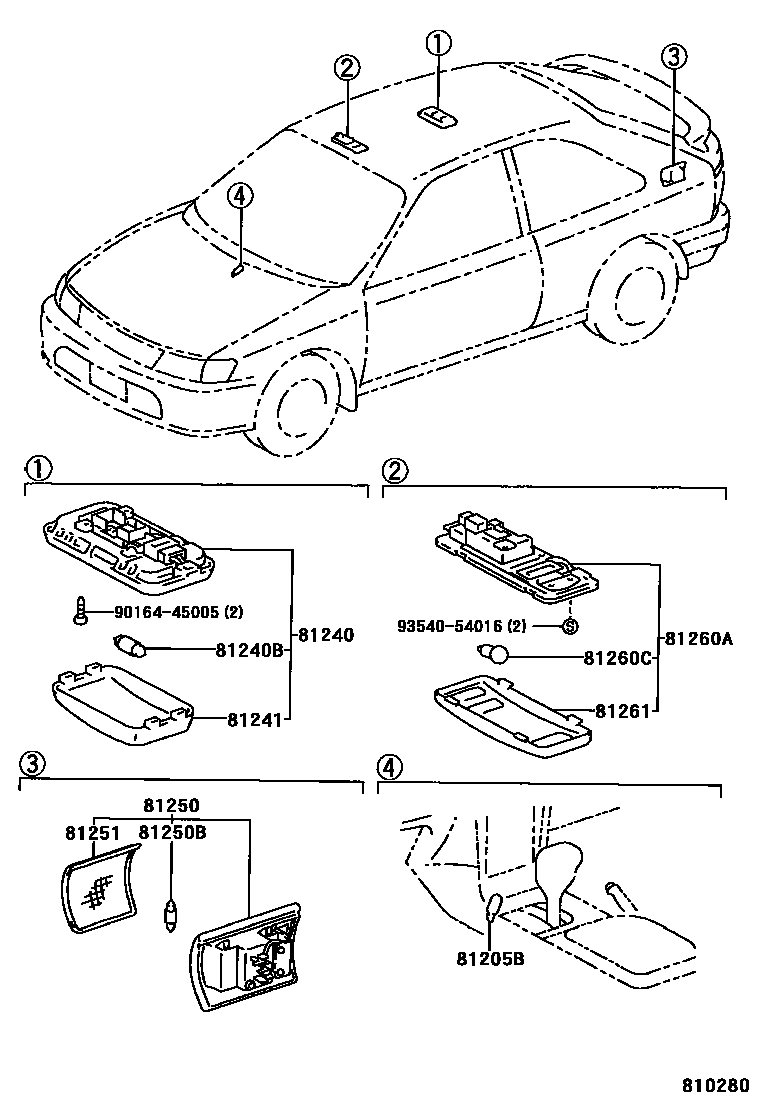

INTERIOR LAMP

0001 1 0002 1

81205BBULB, ASH RECEPTACLE LAMP

main90981-11018iAE10#,CE100,EE10#199411

12V 1.2W W/O SOCKET

81240LAMP ASSY, ROOM, NO.1

main81240-12040-B0iAE10#,CE100,EE10#199205-199305

LIGHT GRAY,TRIM1#

main81240-12040-J0iAE101,CE100,EE10#..GLI,STD,XL,XLI199205-199305

LIGHT BLUE,TRIM8#

main81240-12060-B0iAE10#,CE100,EE10#199305-199704

LIGHT GRAY,TRIM1#

main81240-12060-J0iAE101,CE100,EE10#..GLI,STD,XL,XLI199305-199704

LIGHT BLUE,TRIM8#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iAE10#,CE100,EE10#199305

12V 8W

main99132-12100iAE10#,CE100,EE10#199205-199305

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-12020iAE10#,CE100,EE10#199205

81250LAMP ASSY, ROOM, NO.2

main81250-12040-B0iAE10#,CE100,EE10#199205

SHADOW GRAY,TRIM1#

main81250-12040-J0iAE101,CE100,EE10#..GLI,STD,XL,XLI199205

DARK BLUE,TRIM8#

81250BBULB, ROOM LAMP, NO.2

main99132-13050iAE10#,CE100,EE10#199205

12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-12040iAE10#,CE100,EE10#199205

81260ALAMP ASSY, MAP

main81260-20160-S3iAE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI199205

SHADOW GRAY,TRIM1#

main81260-20160-W5iAE101,CE100,EE10#..GLI,XL,XLI199205

LIGHT BLUE,TRIM8#

81260CBULB(FOR MAP LAMP)

main90981-12014iAE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI199205

12V 10W

81261LENS AND COVER, MAP LAMP

main81261-20160-03iAE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI199205-199305

SHADOW GRAY,TRIM1#

main81261-20160-B0iAE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI199305

LIGHT GRAY,TRIM1#

main81261-20160-J0iAE101,CE100,EE10#..GLI,XL,XLI199205

LIGHT BLUE,TRIM8#

9016445005

main90164-45005

9354054016

main93540-54016

12 parts on this diagram · 2 diagrams in section
