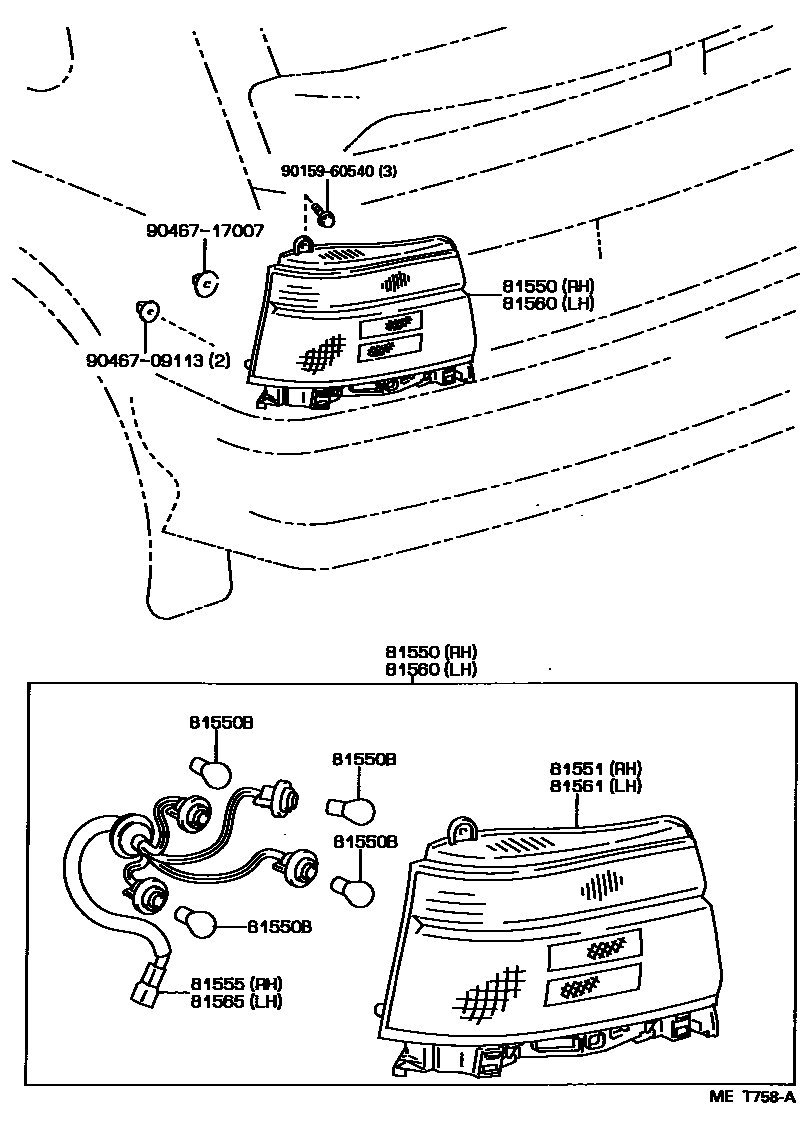

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-1A740iAE10#,CE100,EE101..HB..RHD199205-199405

main81550-1A741iAE10#,CE100,EE101..HB..RHD199405

main81550-1A750iAE10#,CE100,EE10#..HB..LHD199205-199405

main81550-1A751iAE10#,CE100,EE10#..HB..LHD199405

main81550-1A780iAE10#,CE100,EE10#..LB199205-199405

main81550-1A781iAE10#,CE100,EE10#..LB199405-199505

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×2iAE10#,CE100,EE10#..LB199205-199505

12V 21W,TURN

main99132-21210×2iAE10#,CE100,EE10#199205

12V 21/5W,TAIL & STOP

81551LENS, REAR COMBINATION LAMP, RH

main81551-1A740iAE10#,CE100,EE101..HB..RHD199205-199405

main81551-1A741iAE10#,CE100,EE101..HB..RHD199405

main81551-1A750iAE10#,CE100,EE10#..HB..LHD199205-199405

main81551-1A751iAE10#,CE100,EE10#..HB..LHD199405

main81551-1A780iAE10#,CE100,EE10#..LB199205-199405

main81551-1A781iAE10#,CE100,EE10#..LB199405-199505

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-1A740iAE10#,CE100,EE101..HB..RHD199205

main81555-1A780iAE10#,CE100,EE10#..LB199205-199505

main81565-1A680iAE10#,CE100,EE10#..HB..LHD199205

81560LAMP ASSY, REAR COMBINATION, LH

main81560-1A680iAE10#,CE100,EE101..HB..RHD199205-199405

main81560-1A681iAE10#,CE100,EE101..HB..RHD199405

main81560-1A690iAE10#,CE100,EE10#..HB..LHD199205-199405

main81560-1A691iAE10#,CE100,EE10#..HB..LHD199405

main81560-1A740iAE10#,CE100,EE10#..LB199205-199405

main81560-1A741iAE10#,CE100,EE10#..LB199405-199505

81561LENS, REAR COMBINATION LAMP, LH

main81561-1A680iAE10#,CE100,EE101..HB..RHD199205-199405

main81561-1A681iAE10#,CE100,EE101..HB..RHD199405

main81561-1A690iAE10#,CE100,EE10#..HB..LHD199205-199405

main81561-1A691iAE10#,CE100,EE10#..HB..LHD199405

main81561-1A740iAE10#,CE100,EE10#..LB199205-199405

main81561-1A741iAE10#,CE100,EE10#..LB199405-199505

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-1A740iAE10#,CE100,EE10#..HB..LHD199205

main81555-1A780iAE10#,CE100,EE10#..LB199205-199505

main81565-1A680iAE10#,CE100,EE101..HB..RHD199205

9015960540

main90159-60540

9046709113

main90467-09113

9046717007

main90467-17007

10 parts on this diagram · 2 diagrams in section
