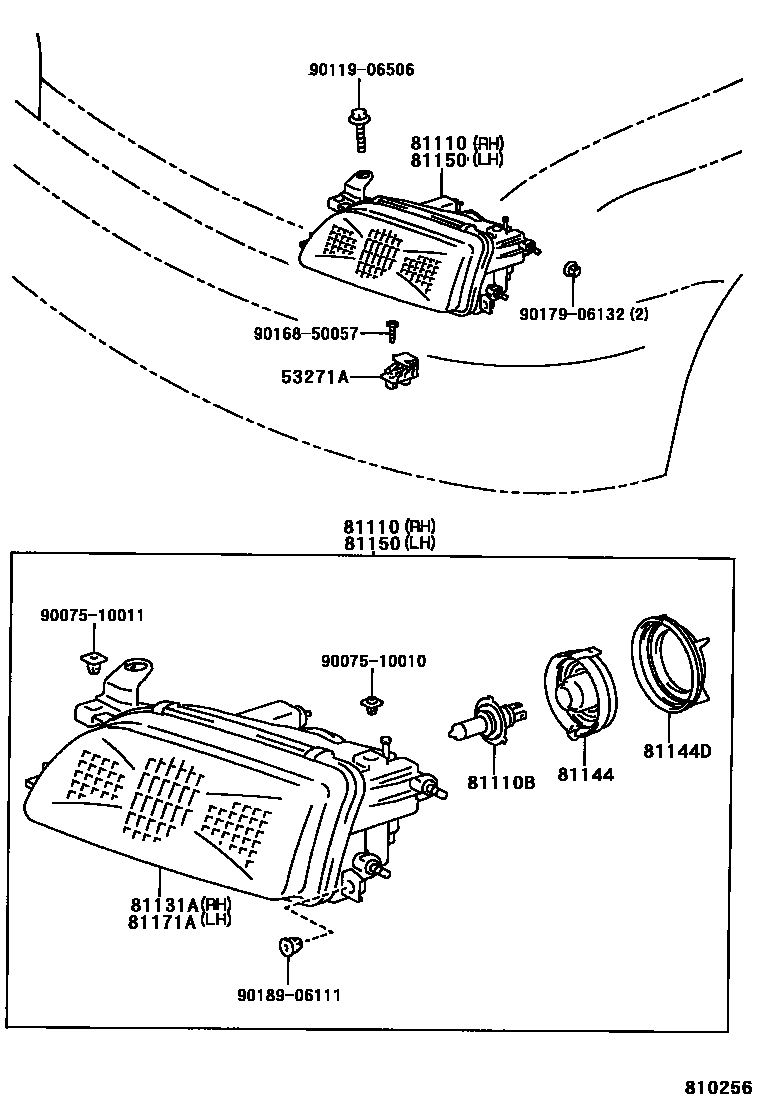

HEADLAMP

53271ABRACKET, HEADLAMP MOUNTING

main53271-12040×2iAE10#,CE100,EE10#199205-199309

main53271-12060×2iAE10#,CE100,EE10#199309

81110HEADLAMP ASSY, RH

main81110-1E230iAE10#,CE100,EE10#..LB..LHD199205-199305

main81110-1E231iAE10#,CE100,EE10#..LB..LHD199305-199505

main81110-1E240iAE10#,CE100,EE101..LB..LHD199205-199303

HALOGEN YELLOW

sub81110-1E241

main81110-1E260iAE102..5D..RHD;AE101,CE100,EE101..LB199205-199305

W(LEVELING);RIGHT SIDE TRAFFIC

main81110-1E261iAE10#,CE100,EE101..LB199405-199505

W(LEVELING);RIGHT SIDE TRAFFIC

main81110-1E270iAE10#,CE100,EE101..LB..RHD199205-199305

LEFT SIDE TRAFFIC;W(LEVELING)

main81110-1E271iAE10#,CE100,EE101..LB..RHD199305-199505

LEFT SIDE TRAFFIC;W(LEVELING)

main81110-1E280iAE10#,CE100,EE10#..HB..LHD199205-199305

main81110-1E281iAE10#,CE100,EE10#..HB..LHD199305-199503

main81110-1E282iAE10#,CE100,EE10#..HB..LHD199503-199704

main81110-1E290iAE102..3D..RHD;AE101,CE100,EE101..HB..(3FC,5F)199205-199305

RIGHT SIDE TRAFFIC

main81110-1E291iAE10#,CE100,EE101..HB199405-199503

RIGHT SIDE TRAFFIC

main81110-1E292iAE10#,CE100,EE101..HB199503-199704

W(LEVELING)

main81110-1E300iAE10#,CE100,EE10#..HB..LHD199205-199303

HALOGEN YELLOW

sub81110-1E301

main81110-1E310iAE10#,CE100,EE101..HB..RHD199205-199305

LEFT SIDE TRAFFIC

main81110-1E311iAE10#,CE100,EE101..HB..RHD199305-199405

LEFT SIDE TRAFFIC

main81110-1E312iAE10#,CE100,EE101..HB..RHD199405-199704

LEFT SIDE TRAFFIC

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iAE10#,CE100,EE10#..HB199302-199401

12V 60/55W,*HAL *WH

sub90981-13058

main90981-13016×2iEE100..HB;AE10#,CE100,EE101..LHD199205-199303

12V 60/55W,*HAL *YE

sub90981-13H01

main90981-22003×2iAE10#,CE100,EE101..HB..RHD199401

12V 60/55W,*HAL *WH

sub90981-13055

main90981-22004×2iEE100;AE10#,CE100,EE101..LB;AE10#,CE100,EE101..HB..LHD199401

12V 60/55W,*HAL *WH

sub90981-13055

81131AUNIT, HEADLAMP, RH

main81105-1E310iAE10#,CE100,EE101..HB..RHD199205

LEFT SIDE TRAFFIC

main81130-1E230iAE10#,CE100,EE10#..LB..LHD199205-199305

main81130-1E231iAE10#,CE100,EE10#..LB..LHD199305-199505

main81130-1E260iAE102..5D..RHD;AE101,CE100,EE101..LB199205-199305

W(LEVELING);RIGHT SIDE TRAFFIC

main81130-1E261iAE102..5D..RHD;AE101,CE100,EE101..LB199305-199405

W(LEVELING);RIGHT SIDE TRAFFIC

main81130-1E270iAE10#,CE100,EE101..LB..RHD199205-199305

LEFT SIDE TRAFFIC;W(LEVELING)

main81130-1E271iAE10#,CE100,EE101..LB..RHD199305-199505

LEFT SIDE TRAFFIC;W(LEVELING)

main81130-1E280iAE10#,CE100,EE10#..HB..LHD199205-199305

main81130-1E281iAE10#,CE100,EE10#..HB..LHD199305-199503

main81130-1E282iAE10#,CE100,EE10#..HB..LHD199503

main81130-1E290iAE102..3D..RHD;AE101,CE100,EE101..HB..(3FC,5F)199205-199305

RIGHT SIDE TRAFFIC

main81130-1E291iAE10#,CE100,EE101..HB199405-199503

RIGHT SIDE TRAFFIC

main81130-1E292iAE10#,CE100,EE101..HB199503

W(LEVELING)

81144COVER, HEADLAMP, NO.1

main81139-1E310×2iAE10#,CE100,EE101..HB..RHD199205

main90075-99058×2iEE100;AE10#,CE100,EE101..LB;AE10#,CE100,EE101..HB..LHD199205

W(LEVELING)

81144DCAP, HEADLAMP LOCKING

main81112-1E310×2iAE10#,CE100,EE101..HB..RHD199205

main90075-99057×2iEE100;AE10#,CE100,EE101..LB;AE10#,CE100,EE101..HB..LHD199205

W(LEVELING)

81150HEADLAMP ASSY, LH

main81150-1A500iAE10#,CE100,EE10#..LB..LHD199205-199305

main81150-1A501iAE10#,CE100,EE10#..LB..LHD199305-199505

main81150-1A510iAE10#,CE100,EE101..LB..LHD199205-199303

HALOGEN YELLOW

sub81150-1A511

main81150-1A530iAE102..5D..RHD;AE101,CE100,EE101..LB199205-199305

W(LEVELING);RIGHT SIDE TRAFFIC

main81150-1A531iAE102..5D..RHD;AE101,CE100,EE101..LB199305-199405

W(LEVELING);RIGHT SIDE TRAFFIC

main81150-1A540iAE10#,CE100,EE101..LB..RHD199205-199305

LEFT SIDE TRAFFIC;W(LEVELING)

main81150-1A541iAE10#,CE100,EE101..LB..RHD199305-199505

LEFT SIDE TRAFFIC;W(LEVELING)

main81150-1A550iAE10#,CE100,EE10#..HB..LHD199205-199305

main81150-1A551iAE10#,CE100,EE10#..HB..LHD199305-199503

main81150-1A552iAE10#,CE100,EE10#..HB..LHD199503-199704

main81150-1E170iAE102..3D..RHD;AE101,CE100,EE101..HB..(3FC,5F)199205-199305

RIGHT SIDE TRAFFIC

main81150-1E171iAE102..3D..RHD;AE101,CE100,EE101..HB..(3FC,5F)199305-199405

RIGHT SIDE TRAFFIC

main81150-1E172iAE10#,CE100,EE101..HB199503-199704

W(LEVELING)

main81150-1E180iAE10#,CE100,EE10#..HB..LHD199205-199303

HALOGEN YELLOW

sub81150-1E181

main81150-1E190iAE10#,CE100,EE101..HB..RHD199205-199305

LEFT SIDE TRAFFIC

main81150-1E191iAE10#,CE100,EE101..HB..RHD199305-199405

LEFT SIDE TRAFFIC

main81150-1E192iAE10#,CE100,EE101..HB..RHD199405-199704

LEFT SIDE TRAFFIC

81171AUNIT, HEADLAMP, LH

main81106-1E190iAE10#,CE100,EE101..HB..RHD199205

LEFT SIDE TRAFFIC

main81170-1A500iAE10#,CE100,EE10#..LB..LHD199205-199305

main81170-1A501iAE10#,CE100,EE10#..LB..LHD199305-199505

main81170-1A530iAE102..5D..RHD;AE101,CE100,EE101..LB199205-199305

W(LEVELING);RIGHT SIDE TRAFFIC

main81170-1A531iAE10#,CE100,EE101..LB199405-199505

W(LEVELING);RIGHT SIDE TRAFFIC

main81170-1A540iAE10#,CE100,EE101..LB..RHD199205-199305

LEFT SIDE TRAFFIC;W(LEVELING)

main81170-1A541iAE10#,CE100,EE101..LB..RHD199305-199505

LEFT SIDE TRAFFIC;W(LEVELING)

main81170-1A550iAE10#,CE100,EE10#..HB..LHD199205-199305

main81170-1A551iAE10#,CE100,EE10#..HB..LHD199305-199503

main81170-1A552iAE10#,CE100,EE10#..HB..LHD199503

main81170-1E170iAE102..3D..RHD;AE101,CE100,EE101..HB..(3FC,5F)199205-199305

RIGHT SIDE TRAFFIC

main81170-1E171iAE10#,CE100,EE101..HB199405-199503

RIGHT SIDE TRAFFIC

main81170-1E172iAE10#,CE100,EE101..HB199503

W(LEVELING)

9007510010

main90075-10010

9007510011

main90075-10011

9011906506

main90119-06506

9016850057

main90168-50057

9017906132

main90179-06132

9018906111

main90189-06111

14 parts on this diagram · 1 diagram in section
