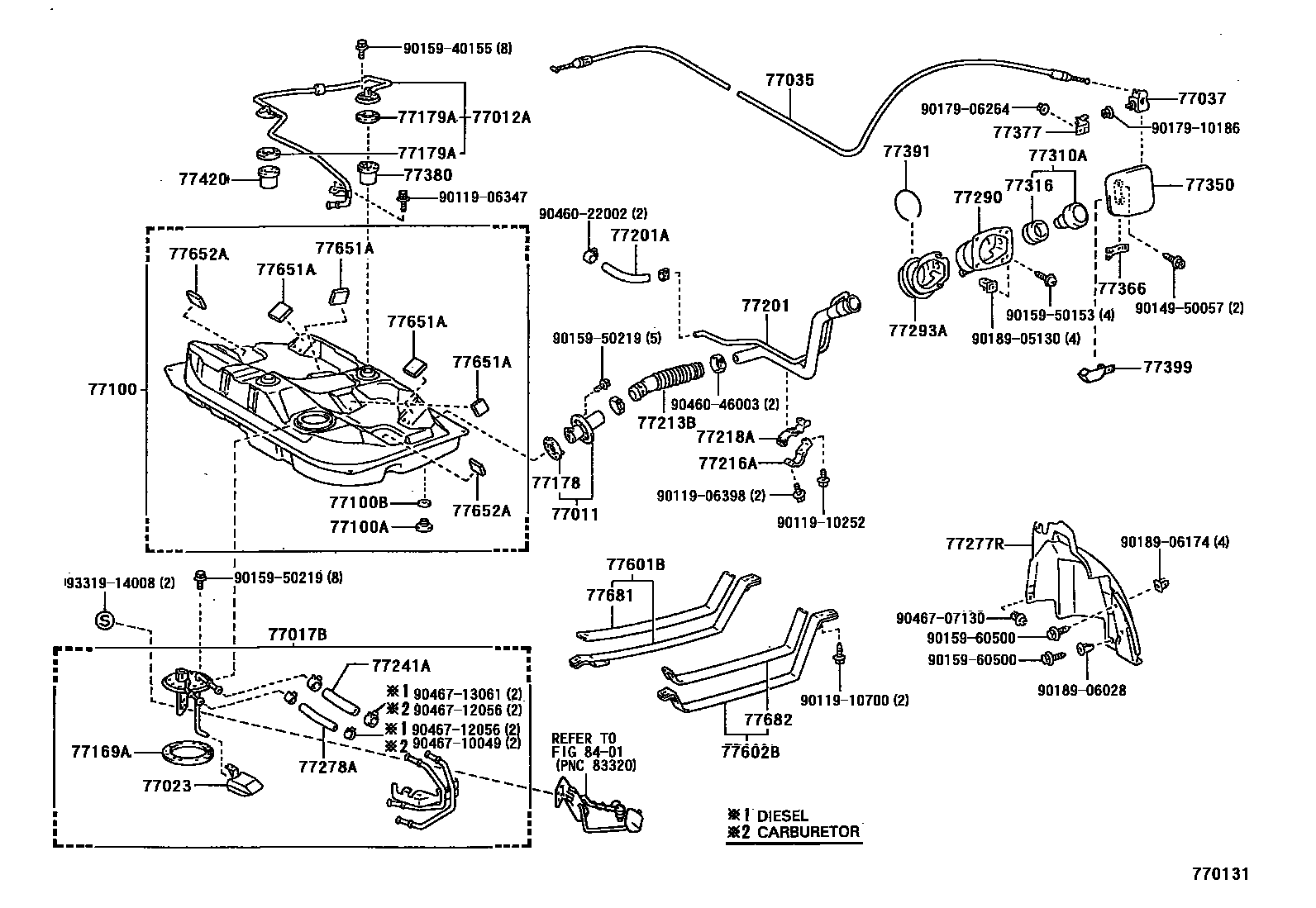

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-12090iAE10#,CE100,EE10#¥2,250199205-199704

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-12080iAE10#,CE100,EE10#¥5,300199205-199505

main77012-12140iAE101,CE100,EE101¥4,370199505-199704

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-12450iEE100¥9,100199205-199505

main77017-12470iCE100¥9,100199205-199505

main77017-12600iCE100¥9,200199505-199704

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-10010iEE100¥1,020199205-199505

main77023-32040iCE100¥870199205-199704

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12190iAE10#,CE100,EE101..RHD¥2,440199205-199505

sub77035-12191¥2,470

main77035-12191iAE101,CE100,EE101..RHD¥2,470199505

main77035-12210iAE10#,CE100,EE10#..LHD..(GLI,GTI,SI,XL,XLI)¥1,950199205-199505

sub77035-12211¥1,960

main77035-12211iAE101,CE100,EE101..LHD..(GLI,SI,XL,XLI)¥1,960199505

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12050iAE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI¥850199205

77100TANK ASSY, FUEL

main77001-12931iAE10#,CE100,EE10#¥46,300199205-199704

77100APLUG(FOR FUEL TANK)

main90341-20004iCE100¥360199205-199704

77100BGASKET(FOR FUEL TANK)

main90430-20007iAE101,EE101..LHD¥220199205-199704

77169AGASKET, FUEL SUCTION TUBE SET

main77169-12030iCE100,EE100¥630199205-199704

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iAE10#,CE100,EE10#¥120199205-199704

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iAE10#,CE100,EE10#¥230199205-199704

sub77179-26011¥190

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-12430iCE100,EE100¥10,300199205

main77201-12500iAE10#,EE101¥10,500199205

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main95311-13022iAE10#,CE100,EE10#¥590199205

L=220

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-12160iAE10#,CE100,EE10#¥3,910199205-199505

main77213-12170iCE100¥3,500199505

sub77213-12220¥3,480

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12070iAE10#,CE100,EE10#¥840199205

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-12030iAE10#,CE100,EE10#¥1,000199205

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95333-06020iEE100¥480199205-199505

L=200(*H,L=110)

sub95337-06020¥570

main95333-08020iCE100¥320199205-199704

L=200(*H,L=120)

sub95337-08020¥310

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12130iAE10#,CE100,EE10#¥2,820199205

77278AHOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)

main95333-04011iEE100¥180199205-199308

L=200(*H,L=110)

sub95333-04020¥510

main95333-04020iEE100¥510199308-199505

L=200(*H,L=110)

main95333-06020iCE100¥480199205-199704

L=200(*H,L=110)

sub95337-06020¥570

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-12040iCE100,EE101..STD¥2,770199205

main77291-12090iAE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI¥2,360199205

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-12050iCE100,EE101..STD¥2,760199205

main77293-12060iAE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI¥2,760199205

77310ACAP ASSY, FUEL TANK

main77310-16011iAE10#,EE10#¥2,790199205

sub77310-12140¥2,790

main77310-32011iCE100¥1,940199205

77316GASKET, FUEL TANK CAP

main77316-16010iAE10#,CE100,EE10#¥660199205

77350LID ASSY, FUEL FILLER OPENING

main77350-12310iAE10#,CE100,EE10#..LB¥3,590199205-199505

main77350-12330iAE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)¥3,090199205

main77350-12340iCE100,EE101..STD¥3,090199205

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12040iAE10#,CE100,EE10#..HB¥380199205

main77360-12050iAE10#,CE100,EE10#..LB¥370199205-199505

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20050iAE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI¥910199205

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iAE10#,CE100,EE10#¥780199205-199704

77391RING, FUEL INLET BOX

main77391-14020iAE10#,CE100,EE10#¥160199205

77399HANGER, FUEL TANK CAP

main77399-12010iAE10#,CE100,EE10#¥860199205

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-26010iAE10#,CE100,EE10#¥780199205-199704

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-12180iAE10#,CE100,EE10#¥2,470199205

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-12130iAE10#,CE100,EE10#¥2,470199205

77651ACUSHION, FUEL TANK, NO.1

main77651-20090iAE10#,CE100,EE10#¥250199205-199505

60X60

main77651-20090iAE101,CE100,EE101¥250199505-199704

60 X 60

main77652-12100iAE101,CE100,EE101¥590199505-199704

60 X 100

main77652-12100iAE10#,CE100,EE10#¥590199205-199505

100X60

77652ACUSHION, FUEL TANK, NO.2

main77652-12100iAE10#,CE100,EE10#¥590199205-199704

77681SEAT, FUEL TANK BAND, RH

main77681-12030iAE10#,CE100,EE10#¥860199205-199305

sub77681-32060¥1,900

main77681-32060iAE10#,CE100,EE10#¥1,900199409

main77682-12030iAE10#,CE100,EE10#¥1,800199305-199409

sub77681-32060¥1,900

77682SEAT, FUEL TANK BAND, LH

main77681-12030iAE10#,CE100,EE10#¥860199205-199305

sub77681-32060¥1,900

main77681-32060iAE10#,CE100,EE10#¥1,900199409

main77681-32070iAE10#,CE100,EE10#¥1,640199305-199409

sub77681-32060¥1,900

8401

9011906347

main90119-06347¥80

9011906398

main90119-06398¥70

9011910252

main90119-10252¥220

9011910700

main90119-10700¥190

9014950057

main90149-50057¥120

9015940155

main90159-40155¥120

9015950153

main90159-50153¥100

9015950219

main90159-50219¥70

9015960500

main90159-60500¥70

9017906264

main90179-06264¥100

9017910186

main90179-10186¥80

9018905130

main90189-05130¥130

9018906028

main90189-06028¥110

9018906174

main90189-06174¥130

9046022002

main90460-22002¥530

9046046003

main90460-46003¥310

9046707130

main90467-07130¥160

9046710049

main90467-10049¥140

9046712056

main90467-12056¥70

9046713061

main90467-13061¥70

9331914008

main93319-14008¥80

59 parts on this diagram · 7 diagrams in section
