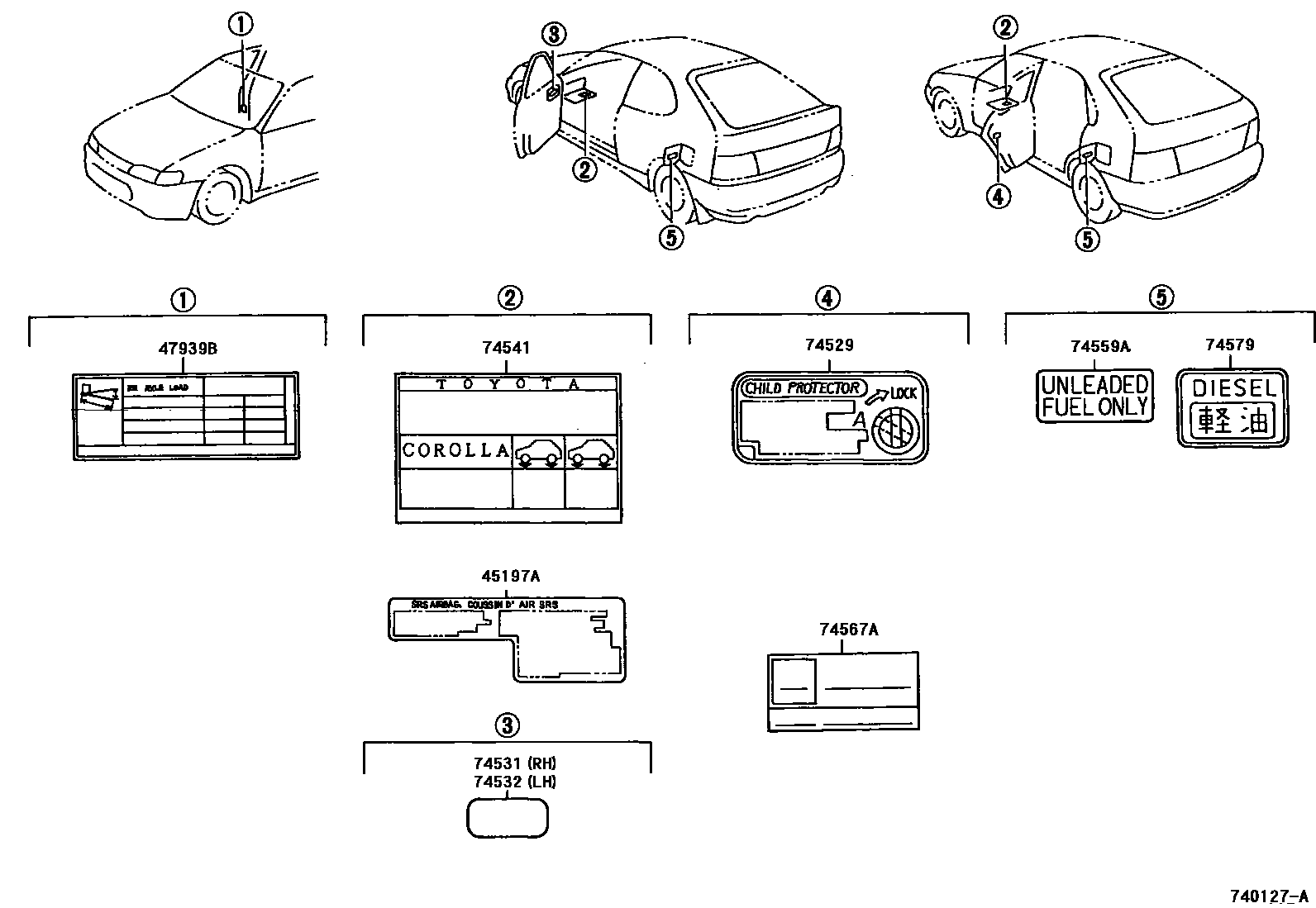

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

45197ALABEL, AIRBAG CAUTION

main45197-12070iAE10#,CE100,EE10#199309

47939BLABEL, LOAD SENSING VALVE MARKING INFORMATION

main47939-12030iAE101,CE100,EE101199205

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-32010iAE10#,CE100,EE10#..5D199205

RH

main69349-32010iAE10#,CE100,EE10#..5D199205

LH

74531PLATE, DOOR INSIDE HANDLE CAUTION, RH

main74531-12010iAE10#,CE100,EE10#..3D199205

74532PLATE, DOOR INSIDE HANDLE CAUTION, LH

main74531-12010iAE10#,CE100,EE10#..3D199205

74541PLATE, TIRE PRESSURE CAUTION

main42661-1A510iEE101199205-199505

main42661-1A520iAE101199205-199307

sub42661-1A521

main42661-1A521iAE101199307-199505

main42661-1A530iAE102199211-199505

main42661-1A550iCE100199205-199505

main42661-1A560iEE100199205-199505

main42661-1A770iEE101199505

main42661-1A780iAE101199505

main42661-1A790iCE100199505

74559APLATE, FUEL CAUTION

main74559-14050iAE10#,EE101199205

main74559-50010iAE101..LB..XLI;AE101..LHD..4FC..GLI199307-199505

ENGLAND SPEC

74567APLATE, E.C.E APPROVED NUMBER

main74567-27111iCE100199605

74579PLATE, UNLEADED FUEL CAUTION

main74559-14030iCE100199205

9 parts on this diagram · 2 diagrams in section
