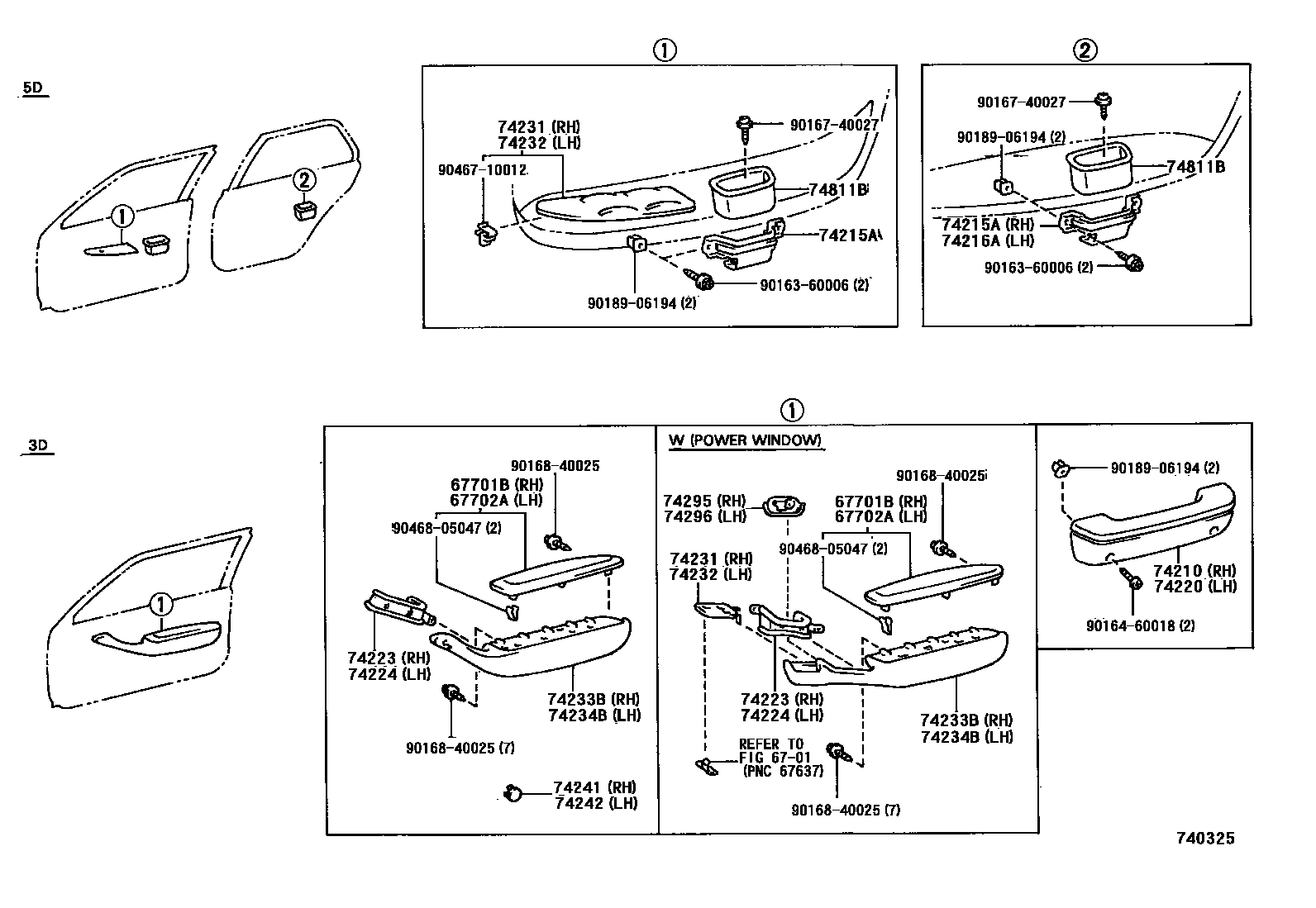

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR

6701

67701BCOVER SUB-ASSY, DOOR TRIM, RH

main67701-12560-B0iAE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI)199205

SHADOW GRAY,TRIM1#

sub67701-12560¥1,870

main67701-12560-J0iAE101,CE100,EE10#..3D..(GLI,XL,XLI)199205

DARK BLUE,TRIM8#

sub67701-12560¥1,870

67702ACOVER SUB-ASSY, DOOR TRIM, LH

main67702-12560-B0iAE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI)199205

SHADOW GRAY,TRIM1#

sub67702-12560¥1,870

main67702-12560-J0iAE101,CE100,EE10#..3D..(GLI,XL,XLI)199205

DARK BLUE,TRIM8#

sub67702-12560¥1,870

74210ARMREST ASSY, FRONT, RH

main74210-16040-B0iCE100,EE101..STD199205

SHADOW GRAY,TRIM1#

sub74210-16040¥4,440

main74210-16040-J0iCE100,EE101..STD199205

DARK BLUE,TRIM8#

sub74210-16040¥4,440

74215ABASE, DOOR ARMREST RH

main74215-12050iAE10#,CE100,EE10#..5D¥500199205

74216ABASE, DOOR ARMREST, LH

main74215-12050iAE10#,CE100,EE10#..5D¥500199205

74220ARMREST ASSY, FRONT, LH

main74210-16040-B0iCE100,EE101..STD199205

SHADOW GRAY,TRIM1#

sub74210-16040¥4,440

main74210-16040-J0iCE100,EE101..STD199205

DARK BLUE,TRIM8#

sub74210-16040¥4,440

74223CAP, DOOR ARMREST, RH

main74223-12110-B0iAE10#..3D;EE101..3D..GLI;EE101..3D..LHD..XLI199205-199505

W(*PW),SHADOW GRAY,TRIM1#

main74223-12110-J0iEE101..3D..GLI;AE101,CE100,EE101..3D..LHD..(XL,XLI)199205-199505

W(*PW),DARK BLUE,TRIM8#

main74223-12120-B0iAE101,CE100,EE101..3D..(SI,XL,XLI)199205-199505

SHADOW GRAY,TRIM1#

main74223-12120-J0iAE101,CE100,EE10#..3D..(GLI,XL,XLI)199205-199505

DARK BLUE,TRIM8#

74224CAP, DOOR ARMREST, LH

main74224-12060-B0iAE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI)199205-199704

SHADOW GRAY,TRIM1#

main74224-12060-J0iAE101,CE100,EE101..3D..(XL,XLI)199205-199704

DARK BLUE,TRIM8#

main74224-12070-B0iAE10#..3D;EE101..3D..GLI;EE101..3D..LHD..XLI199205-199704

W(*PW),SHADOW GRAY,TRIM1#

main74224-12070-J1iEE101..3D..GLI;AE101,CE100,EE101..3D..LHD..(XL,XLI)199205-199704

W(*PW),DARK BLUE,TRIM8#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12130-P0iAE10#,EE101..LB..RHD199205-199505

SHADOW GRAY,TRIM1#

sub74231-12131¥1,920

sub74231-12130¥1,440

main74231-12130-W3iAE101,EE101..5D..RHD..GLI199205-199505

DARK BLUE,TRIM8#

sub74231-12131¥1,920

sub74231-12130¥1,440

main74231-12131-P0iAE101..RHD..GLI199505-199704

W(*PW),SHADOW GRAY,TRIM1#

sub74231-12130¥1,440

main74231-12131-W3iAE101..RHD..GLI199505-199704

BLUE,TRIM8#

sub74231-12130¥1,440

main74231-12150-B0iAE10#,EE101..3D..RHD..(GLI,GTI,SI)199205-199505

SHADOW GRAY,TRIM1#

sub74231-12200¥1,120

main74231-12150-J0iEE101..3D..GLI199205-199505

DARK BLUE,TRIM8#

sub74231-12200¥1,120

main74231-12151-B0iAE101,CE100,EE101..3D..RHD199505-199704

SHADOW GRAY,TRIM1#

main74231-12151-J0iCE100,EE101..3D..RHD199505-199704

DARK BLUE,TRIM8#

main74231-12170-B0iAE10#,EE101..5D..LHD199205-199704

SHADOW GRAY,TRIM1#

sub74231-12170¥1,950

main74231-12170-J0iCE100..HB..5D..LHD;AE101,EE101..5D..LHD199205-199704

DARK BLUE,TRIM8#

sub74231-12170¥1,950

main74231-12190-B0iAE101,EE101..3D..LHD..(SI,XLI)199205-199206

SHADOW GRAY,TRIM1#

sub74231-12191¥1,120

main74231-12190-J0iAE101,EE101..3D..LHD..XLI199205-199206

DARK BLUE,TRIM8#

sub74231-12191¥1,120

main74231-12191-B0iAE10#,EE101..3D..LHD..(GTI,SI,XLI)199206-199704

SHADOW GRAY,TRIM1#

main74231-12191-J0iAE101,CE100,EE101..3D..LHD..(XL,XLI)199206-199704

DARK BLUE,TRIM8#

main74231-12220-B0iAE101,CE100,EE101..5D..RHD199505-199704

SHADOW GRAY,TRIM1#

main74231-12220-J0iAE101,CE100,EE101..5D..RHD199505-199704

DARK BLUE,TRIM8#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12110-P0iAE101,CE100,EE101..5D..RHD199205-199704

SHADOW GRAY,TRIM1#

sub74232-12110¥1,940

main74232-12110-W3iAE101,EE101..5D..RHD..GLI199205-199704

DARK BLUE,TRIM8#

sub74232-12110¥1,940

main74232-12140-B0iAE10#,EE101..3D..LHD..(GTI,SI,XLI)199205-199505

SHADOW GRAY,TRIM1#

main74232-12140-J0iAE101,CE100,EE101..3D..LHD..(XL,XLI)199205-199505

DARK BLUE,TRIM8#

main74232-12141-B0iAE101,CE100,EE101..3D..LHD..(SI,XL,XLI)199505-199704

SHADOW GRAY,TRIM1#

main74232-12141-J0iAE101,CE100,EE101..3D..LHD..(XL,XLI)199508-199704

DARK BLUE,TRIM8#

main74232-12150-B0iAE101,CE100,EE101..5D..LHD199505-199704

W(*PW),SHADOW GRAY,TRIM1#

main74232-12150-J0iAE101,CE100,EE101..5D..LHD199505-199704

DARKBLUE,TRIM8#

main74232-12160-B0iAE10#,CE100,EE101..5D..LHD199205-199505

SHADOW GRAY,TRIM1#

sub74232-12160¥1,950

main74232-12160-J0iAE101,CE100,EE101..5D..LHD199205-199505

DARK BLUE,TRIM8#

sub74232-12160¥1,950

main74232-12161-B0iAE101,CE100,EE101..5D..LHD199505-199704

W(REAR *PW),SHADOW GRAY,TRIM1#

sub74232-12160¥1,950

main74232-12161-J0iAE101,CE100,EE101..5D..LHD199505-199704

DARK BLUE,TRIM8#

sub74232-12160¥1,950

main74232-12180-B0iAE101,EE101..3D..RHD..(GLI,SI)199205-199206

SHADOW GRAY,TRIM1#

sub74232-12181¥1,120

main74232-12180-J0iEE101..3D..GLI199205-199206

DARK BLUE,TRIM8#

sub74232-12181¥1,120

main74232-12181-B0iAE10#,EE101..3D..RHD..(GLI,GTI,SI)199206-199704

SHADOW GRAY,TRIM1#

main74232-12181-J0iCE100,EE101..3D..RHD199206-199704

DARK BLUE,TRIM8#

74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH

main74233-12050-B0iAE10#..3D;EE101..3D..GLI;CE100,EE101..3D..LHD..(XL,XLI)199205-199505

W(*PW),SHADOW GRAY,TRIM1#

sub74233-12050¥5,800

main74233-12050-J0iEE101..3D..GLI;AE101,EE101..3D..LHD..XLI199205-199505

W(*PW),DARK BLUE,TRIM8#

sub74233-12050¥5,800

main74233-12060-B0iAE101,CE100,EE101..3D..(SI,XL,XLI)199205-199505

SHADOW GRAY,TRIM1#

main74233-12060-J0iAE101,CE100,EE10#..3D..(GLI,XL,XLI)199205-199505

DARK BLUE,TRIM8#

74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH

main74234-12060-B0iAE101,CE100,EE101..3D..(SI,XL,XLI)199205-199505

SHADOW GRAY,TRIM1#

main74234-12060-J0iAE101,CE100,EE101..3D..(XL,XLI)199205-199505

DARK BLUE,TRIM8#

main74234-12090-B0iAE10#..3D;EE101..3D..GLI;EE101..3D..LHD..XLI199205-199505

W(*PW),SHADOW GRAY,TRIM1#

main74234-12090-J0iEE101..3D..GLI;AE101,EE101..3D..LHD..XLI199205-199505

W(*PW),DARK BLUE,TRIM8#

74241PLUG, FRONT DOOR ARMREST, RH

main74241-12021-B0iAE101,CE100,EE101..3D..(SI,XL,XLI)199205-199505

SHADOW GRAY,TRIM1#

sub74241-12021¥370

main74241-12021-J0iAE101,CE100,EE10#..3D..(GLI,XL,XLI)199205-199505

DARK BLUE,TRIM8#

sub74241-12021¥370

74242PLUG, FRONT DOOR ARMREST, LH

main74242-12011-B0iAE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI)199205-199505

SHADOW GRAY,TRIM1#

main74242-12011-J0iAE101,CE100,EE10#..3D..(GLI,XL,XLI)199205-199505

DARK BLUE,TRIM8#

74295PLATE, DOOR ARMREST, NO.3

main74295-12010iAE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI)¥350199205-199505

74296PLATE, DOOR ARMREST, NO.4

main74296-12010iAE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI)¥350199205-199505

74811BHANDLE, DOOR PULL

main74811-12060-P0iAE10#,CE100,EE10#..5D199205-199704

SHADOW GRAY,TRIM1#

sub74811-12060¥630

main74811-12060-W3iAE101,CE100,EE10#..5D199205-199704

DARK BLUE,TRIM8#

sub74811-12060¥630

9016360006

main90163-60006¥120

9016460018

main90164-60018¥70

9016740027

main90167-40027¥120

9016840025

main90168-40025¥70

9018906194

main90189-06194¥130

9046710012

main90467-10012¥130

9046805047

main90468-05047¥90

25 parts on this diagram · 2 diagrams in section
