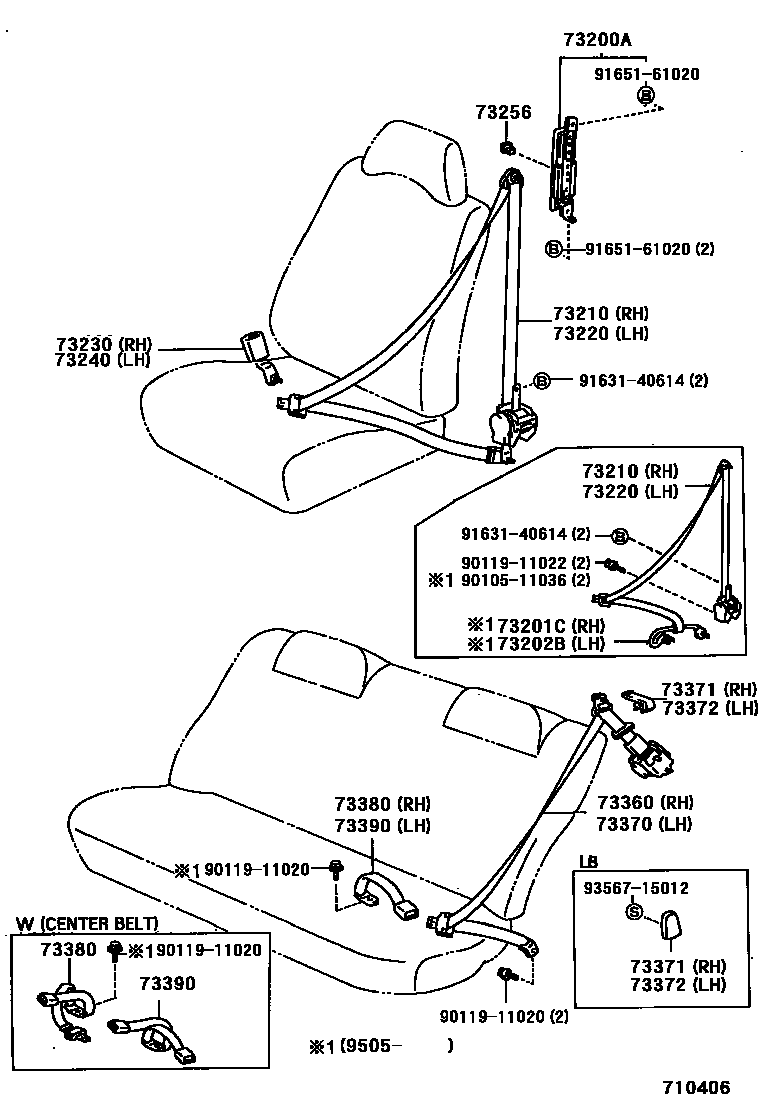

SEAT BELT & CHILD RESTRAINT SEAT

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12020-P0iAE10#,CE100,EE10#199205-199704

SHADOW GRAY,TRIM1#

sub73200-12020

main73200-12020-W3iAE101,CE100,EE10#..GLI,STD,XL,XLI199205-199704

DARK BLUE,TRIM8#

sub73200-12020

73201CBAR SUB-ASSY, FRONT SEAT BELT, OUTER RH

main73201-12020iAE101,CE100,EE101..3D199505

73202BBAR SUB-ASSY, FRONT SEAT BELT, OUTER LH

main73202-12010iAE101,CE100,EE101..3D199505

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-12880-B0iAE101,CE100,EE10#..5D199205-199211

SHADOW GRAY,TRIM1#

sub73210-12881

main73210-12880-J0iAE101,CE100,EE10#..5D199205-199211

DARK BLUE,TRIM8#

sub73210-12881

main73210-12881-B0iAE10#,CE100,EE10#..5D199211-199305

SHADOW GRAY,TRIM1#

sub73210-12882

main73210-12881-J0iAE101,CE100,EE10#..5D199211-199305

DARK BLUE,TRIM8#

sub73210-12882

main73210-12882-B0iAE10#,CE100,EE10#..5D199305-199505

SHADOW GRAY,TRIM1#

sub73210-12882

main73210-12882-J0iAE101,CE100,EE10#..5D199305-199505

DARK BLUE,TRIM8#

sub73210-12882

main73210-1A010-B0iAE10#,CE100,EE10#..3D199205-199505

SHADOE GRAY,TRIM1#

sub73210-1A010

main73210-1A010-J0iAE101,CE100,EE10#..3D..(GLI,STD,XL,XLI)199205-199505

DARK BLUE,TRIM8#

sub73210-1A010

main73210-1A100-B1iAE101,CE100,EE101..5D199505-199509

SHADOW GRAY,TRIM1#

sub73210-1A101

main73210-1A100-J1iAE101,CE100,EE101..5D199505-199509

DARK BLUE,TRIM8#

sub73210-1A101

main73210-1A101-B1iAE101,CE100,EE101..5D199509

SHADOW GRAY,TRIM1#

main73210-1A101-J1iAE101,CE100,EE101..5D199509

DARK BLUE,TRIM8#

main73210-1A110-B1iAE101,CE100,EE101..3D199505-199509

SHADOW GRAY,TRIM1#

sub73210-1A111

main73210-1A110-J1iAE101,CE100,EE101..3D..(GLI,STD,XL,XLI)199505-199509

DARK BLUE,TRIM8#

sub73210-1A111

main73210-1A111-B1iAE101,CE100,EE101..3D199509

SHADOW GRAY,TRIM1#

main73210-1A111-J1iAE101,CE100,EE101..3D..(GLI,STD,XL,XLI)199509

DARK BLUE,TRIM8#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-12770-B0iAE101,CE100,EE10#..5D199205-199211

SHADOW GRAY,TRIM1#

sub73220-12771

main73220-12770-J0iAE101,CE100,EE10#..5D199205-199211

DARK BLUE,TRIM8#

sub73220-12771

main73220-12771-B0iAE10#,CE100,EE10#..5D199211-199305

SHADOW GRAY,TRIM1#

sub73220-12772

main73220-12771-J0iAE101,CE100,EE10#..5D199211-199305

DARK BLUE,TRIM8#

sub73220-12772

main73220-12772-B0iAE10#,CE100,EE10#..5D199305-199505

SHADOW GRAY,TRIM1#

sub73220-12772

main73220-12772-J0iAE101,CE100,EE10#..5D199305-199505

DARK BLUE,TRIM8#

sub73220-12772

main73220-12790-B0iAE10#,CE100,EE10#..3D199205-199505

SAHDOW GRAY,TRIM1#

sub73220-12790

main73220-12790-J0iAE101,CE100,EE10#..3D..(GLI,STD,XL,XLI)199205-199505

DARK BLUE,TRIM8#

sub73220-12790

main73220-12880-B1iAE101,CE100,EE101..5D199505-199509

SHADOW GRAY,TRIM1#

sub73220-12881

main73220-12880-J1iAE101,CE100,EE101..5D199505-199509

DARK BLUE,TRIM8#

sub73220-12881

main73220-12881-B1iAE101,CE100,EE101..5D199509

SHADOW GRAY,TRIM1#

main73220-12881-J1iAE101,CE100,EE101..5D199509

DARK BLUE,TRIM8#

main73220-12890-B1iAE101,CE100,EE101..3D199505-199509

SHADOW GRAY,TRIM1#

sub73220-12891

main73220-12890-J1iAE101,CE100,EE101..3D..(GLI,STD,XL,XLI)199505-199509

DARK BLUE,TRIM8#

sub73220-12891

main73220-12891-B1iAE101,CE100,EE101..3D199509

SHADOW GRAY,TRIM1#

main73220-12891-J1iAE101,CE100,EE101..3D..(GLI,STD,XL,XLI)199509

DARK BLUE,TRIM8#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-12480-B0iAE10#,CE100,EE10#199205-199505

SHADOW GRAY,TRIM1#

sub73230-12480

main73230-12480-J0iAE101,CE100,EE10#..GLI,STD,XL,XLI199205-199505

DARK BLUE,TRIM8#

sub73230-12480

main73230-12631-B0iAE101,CE100,EE101199505

SHADOW GRAY,TRIM1#

main73230-12631-J0iAE101,CE100,EE101..GLI,STD,XL,XLI199505

DARK BLUE,TRIM8#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-12480-B0iAE10#,CE100,EE10#199205-199505

SHADOW GRAY,TRIM1#

sub73230-12480

main73230-12480-J0iAE101,CE100,EE10#..GLI,STD,XL,XLI199205-199505

DARK BLUE,TRIM8#

sub73230-12480

main73230-12631-B0iAE101,CE100,EE101199505

SHADOW GRAY,TRIM1#

main73230-12631-J0iAE101,CE100,EE101..GLI,STD,XL,XLI199505

DARK BLUE,TRIM8#

73256KNOB, SHOULDER BELT ANCHOR ADJUST

main73256-12010-03iAE10#,CE100,EE10#199205-199704

SHADOW GRAY,TRIM1#

sub73256-12010

main73256-12010-W3iAE101,CE100,EE10#..GLI,STD,XL,XLI199205-199704

DARK BLUE,TRIM8#

sub73256-12010

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-12560-B0iAE10#,CE100,EE10#..LB199205-199305

SHADOW GRAY,TRIM1#

sub73360-12561

main73360-12560-J0iAE101,CE100,EE10#..LB199205-199305

DARK BLUE,TRIM8#

sub73360-12561

main73360-12561-B1iAE10#,CE100,EE10#..LB199305-199505

SHADOW GRAY,TRIM1#

sub73360-12561

main73360-12561-J1iAE101,CE100,EE10#..LB199305-199505

DARK BLUE,TRIM8#

sub73360-12561

main73360-12630-B0iAE101,CE100,EE10#..3D199205-199305

SHADOW GRAY,TRIM1#

sub73360-12631

main73360-12630-J0iAE101,CE100,EE10#..3D..(GLI,STD,XL,XLI)199205-199305

DARK BLUE,TRIM8#

sub73360-12631

main73360-12631-B1iAE101,CE100,EE10#..3D199305-199505

SHADOW GRAY,TRIM1#

sub73360-12631

main73360-12631-J1iAE101,CE100,EE10#..3D..(GLI,STD,XL,XLI)199305-199505

DARK BLUE,TRIM8#

sub73360-12631

main73360-12632-B1iAE101,CE100,EE101..3D199505

SHADOW GRAY,TRIM1#

main73360-12632-J1iAE101,CE100,EE101..3D..(GLI,STD,XL,XLI)199505

DARK BLUE,TRIM8#

main73360-12640-B0iAE102..3D;AE101,CE100,EE10#..HB..5D199206-199305

SHADOW GRAY,TRIM1#

sub73360-12641

main73360-12640-J0iAE101,CE100,EE10#..HB..5D199206-199305

DARK BLUE,TRIM8#

sub73360-12641

main73360-12641-B1iAE102..3D;AE101,CE100,EE10#..HB..5D199305-199505

SHADOW GRAY,TRIM1#

sub73360-12641

main73360-12641-J1iAE101,CE100,EE10#..HB..5D199305-199505

DARK BLUE,TRIM8#

sub73360-12641

main73360-12680-B1iAE101,CE100,EE101..5D199505

SHADOW GRAY,TRIM1#

sub73360-12680

main73360-12680-J1iAE101,CE100,EE101..5D199505

DARK BLUE,TRIM8#

sub73360-12680

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-12360-B0iAE10#,CE100,EE10#..LB199205-199305

SHADOW GRAY,TRIM1#

sub73370-12361

main73370-12360-J0iAE101,CE100,EE10#..LB199205-199305

DARK BLUE,TRIM8#

sub73370-12361

main73370-12361-B1iAE10#,CE100,EE10#..LB199305-199505

SHADOW GRAY,TRIM1#

sub73370-12361

main73370-12361-J1iAE101,CE100,EE10#..LB199305-199505

DARK BLUE,TRIM8#

sub73370-12361

main73370-12410-B0iAE101,CE100,EE10#..3D199205-199305

SHADOW GRAY,TRIM1#

sub73370-12411

main73370-12410-J0iAE101,CE100,EE10#..3D..(GLI,STD,XL,XLI)199205-199305

DARK BLUE,TRIM8#

sub73370-12411

main73370-12411-B1iAE101,CE100,EE10#..3D199305-199505

SHADOW GRAY,TRIM1#

sub73370-12411

main73370-12411-J1iAE101,CE100,EE10#..3D..(GLI,STD,XL,XLI)199305-199505

DARK BLUE,TRIM8#

sub73370-12411

main73370-12412-B1iAE101,CE100,EE101..3D199505

SHADOW GRAY,TRIM1#

main73370-12412-J1iAE101,CE100,EE101..3D..(GLI,STD,XL,XLI)199505

DARK BLUE,TRIM8#

main73370-12420-B0iAE102..3D;AE101,CE100,EE10#..HB..5D199206-199305

SHADOW GRAY,TRIM1#

sub73370-12421

main73370-12420-J0iAE101,CE100,EE10#..HB..5D199206-199305

DARK BLUE,TRIM8#

sub73370-12421

main73370-12421-B1iAE102..3D;AE101,CE100,EE10#..HB..5D199305-199505

SHADOW GRAY,TRIM1#

sub73370-12421

main73370-12421-J1iAE101,CE100,EE10#..HB..5D199305-199505

DARK BLUE,TRIM8#

sub73370-12421

main73370-12480-B1iAE101,CE100,EE101..5D199505

SHADOW GRAY,TRIM1#

sub73370-12480

main73370-12480-J1iAE101,CE100,EE101..5D199505

DARK BLUE,TRIM8#

sub73370-12480

73371HANGER, REAR SEAT SHOULDER BELT, RH

main73371-12070-B0iAE10#,CE100,EE10#..LB199205-199505

SHADOW GRAY,TRIM1#

sub73371-12070

main73371-12070-J0iAE101,CE100,EE10#..LB199205-199505

DARK BLUE,TRIM8#

sub73371-12070

main73371-16050-B1iAE10#,CE100,EE10#..HB199205-199704

SHADOW GRAY,TRIM1#

sub73371-16050

sub73371-52010

main73371-16050-J0iAE101,CE100,EE10#..HB..(GLI,STD,XL,XLI)199205-199704

DARK BLUE,TRIM8#

sub73371-16050

sub73371-52010

73372HANGER, REAR SEAT SHOULDER BELT, LH

main73371-16050-B1iAE10#,CE100,EE10#..HB199205-199704

SHADOW GRAY,TRIM1#

sub73371-16050

sub73371-52010

main73371-16050-J0iAE101,CE100,EE10#..HB..(GLI,STD,XL,XLI)199205-199704

DARK BLUE,TRIM8#

sub73371-16050

sub73371-52010

main73372-12010-B0iAE10#,CE100,EE10#..LB199205-199505

SHADOW GRAY,TRIM1#

sub73372-12010

main73372-12010-J0iAE101,CE100,EE10#..LB199205-199505

DARK BLUE,TRIM8#

sub73372-12010

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73380-12360-B0iAE10#,CE100,EE10#199205-199505

W/O(CENTER BELT),SHADOW GRAY,TRIM1#

sub73380-12360

main73380-12360-J0iAE101,CE100,EE10#..GLI,STD,XL,XLI199205-199505

W/O(CENTER BELT),DARK BLUE,TRIM8#

sub73380-12360

main73470-12050-B0iAE10#,CE100,EE10#199205-199309

W(CENTER BELT),SHADOW GRAY,TRIM1#

sub73470-12050

main73470-12050-J0iAE101,CE100,EE10#..GLI,STD,XL,XLI199205-199309

W(CENTER BELT),DARK BLUE,TRIM8#

sub73470-12050

main73470-12051-B0iAE10#,CE100,EE10#199309-199505

W(CENTER BELT),SHADOW GRAY,TRIM1#

sub73470-12051

main73470-12051-J0iAE101,CE100,EE10#..GLI,STD,XL,XLI199309-199505

W(CENTER BELT),DARK BLUE,TRIM8#

sub73470-12051

main73470-12052-B0iAE101,CE100,EE101199505-199704

SHADOW GRAY,TRIM1#

sub73470-12052

main73470-12052-J0iAE101,CE100,EE101..GLI,STD,XL,XLI199505-199704

DARK BLUE,TRIM8#

sub73470-12052

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73380-12360-B0iAE10#,CE100,EE10#199205-199505

W/O(CENTER BELT),SHADOW GRAY,TRIM1#

sub73380-12360

main73380-12360-J0iAE101,CE100,EE10#..GLI,STD,XL,XLI199205-199505

W/O(CENTER BELT),DARK BLUE,TRIM8#

sub73380-12360

main73480-12050-B0iAE10#,CE100,EE10#199205-199309

W(CENTER BELT),SHADOW GRAY,TRIM1#

sub73480-12050

main73480-12050-J0iAE101,CE100,EE10#..GLI,STD,XL,XLI199205-199309

W(CENTER BELT),DARK BLUE,TRIM8#

sub73480-12050

main73480-12051-B0iAE10#,CE100,EE10#199309-199505

W(CENTER BELT),SHADOW GRAY,TRIM1#

sub73480-12070

sub73480-12051

main73480-12051-J0iAE101,CE100,EE10#..GLI,STD,XL,XLI199309-199505

W(CENTER BELT),DARK BLUE,TRIM8#

sub73480-12070

sub73480-12051

main73480-12052-B0iAE101,CE100,EE101199505

SHADOW GRAY,TRIM1#

sub73480-12090

main73480-12052-J0iAE101,CE100,EE101..GLI,STD,XL,XLI199505

DARK BLUE,TRIM8#

sub73480-12090

9010511036

main90105-11036

9011911020

main90119-11020

9011911022

main90119-11022

9163140614

main91631-40614

9165161020

main91651-61020

9356715012

main93567-15012

20 parts on this diagram · 1 diagram in section
