EPC Data

REAR SEAT & SEAT TRACK

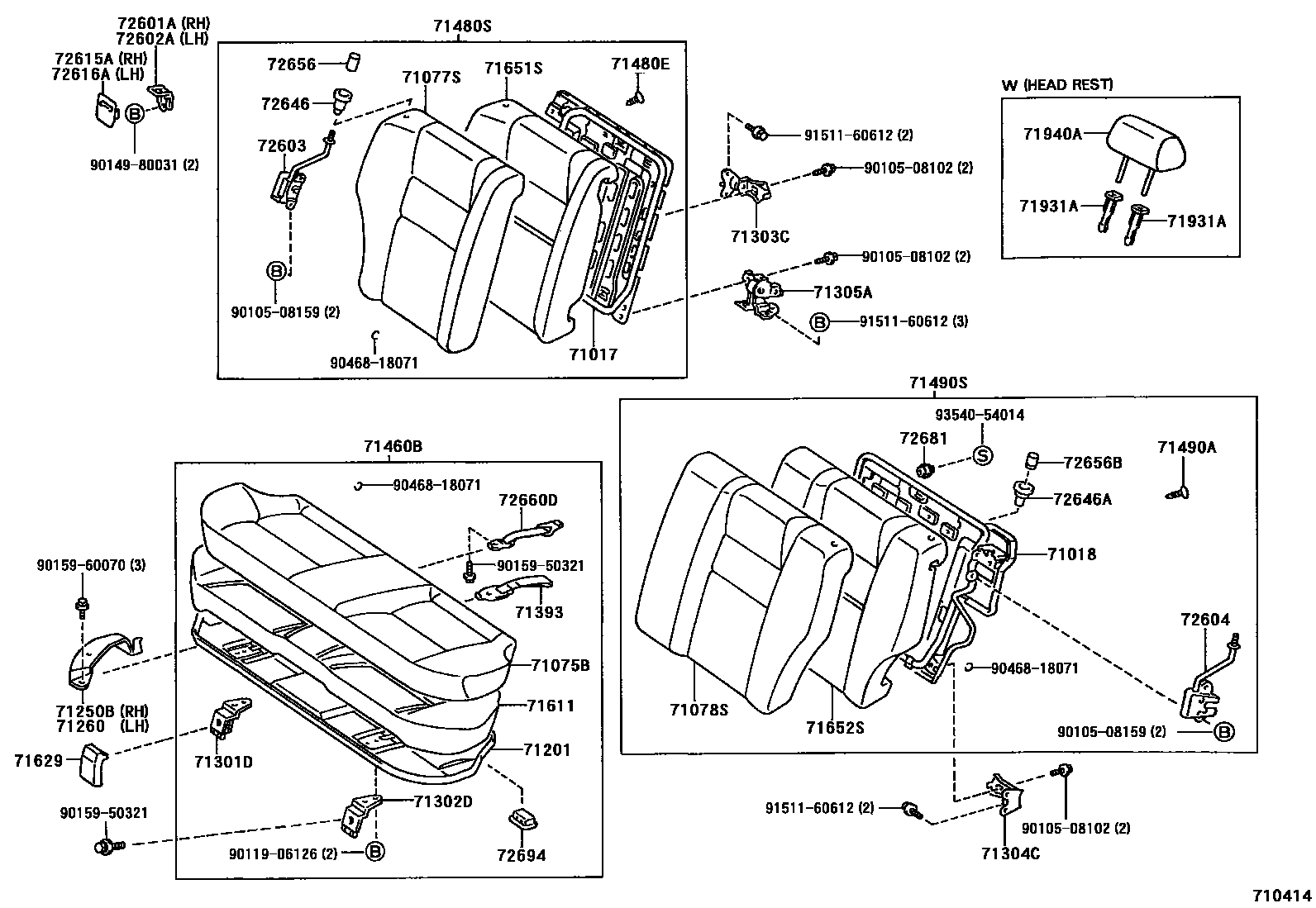

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-13160i¥12,700199205-199305
main71017-13190i¥12,900199305
W(HEADREST)
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-13020i¥14,200199205-199305
main71018-13040i¥14,300199305
W(HEADREST)
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71065-1E060-B0i199205-199704
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main71065-1E060-J0i199205-199704
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main71065-1E070-B1i199211-199704
SHADOW GRAY/BLACK,TRIM1#
main71065-1E160-B1i199205-199505
SHADOW GRAY/BLACK,TRIM1#
main71065-1E210-B0i199205-199505
SHADOW GRAY,TRIM1#
main71065-1E210-J0i199205-199505
DARK BLUE,TRIM8#
main71065-1E370-B0i199412-199504
95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1#
main71065-1E420-B0i199511-199604
'96 SPRING CAMPAIGN(FRANCE),SHADOW GRAY,TRIM1
main71065-1E420-B0i199511-199604
'96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1
main71065-1E420-B0i199511-199604
'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),SHADOW GRAY,TRIM1
main71065-1E420-B0i199511-199604
'96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1
main71065-1E420-B0i199512-199604
'96 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1
main71065-1E420-B0i199601
50TH ANNIVERSARY,SHADOW GRAY,TRIM1#
main71065-1E430-B0i199605-199704
SHADOW GRAY,TRIM1#
main71075-13450-B0i199205-199505
SHADOW GRAY,TRIM1#
main71075-13450-J0i199205-199505
DARK BLUE,TRIM8#
main71075-13451-B1i199605-199704
W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1#
main71075-13451-B1i199611-199704
'97 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#
main71075-13451-B1i199505-199704
SHADOW GRAY,TRIM1#
main71075-13451-B2i199605-199704
W(FULL FABRIC GL(BA**/BB**)),GRAY/BLUE,TRIM8#
main71075-13451-B2i199505-199704
GRAY/BLUE,TRIM8#
main71075-13460-B0i199205-199505
SHADOW GRAY,TRIM1#
main71075-13460-J0i199205-199505
DARK BLUE,TRIM8#
main71075-13530-B0i199401-199505
SHADOW GRAY,TRIM1#
sub71075-13530
main71075-13530-B1i199401-199505
GRAY/BLUE,TRIM8#
sub71075-13530
main71075-13530-J0i199401-199505
DARK BLUE,TRIM8#
sub71075-13530
main71075-13531-B2i199505-199605
W(HEADREST),SHADOW GRAY,TRIM1#
main71075-13531-B2i199505-199704
SHADOW GRAY,TRIM1#
main71075-13531-B3i199505-199605
W(HEADREST),GRAY/BLUE,TRIM8#
main71075-13531-B3i199505-199704
GRAY/BLUE,TRIM8#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-1K810-B0i199205-199305
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main71077-1K810-J0i199205-199305
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main71077-1K811-B1i199305-199405
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main71077-1K811-J1i199305-199405
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main71077-1K812-B1i199405-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main71077-1K812-J1i199405-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main71077-1K820-B1i199211-199305
SHADOW GRAY/BLACK,TRIM1#
main71077-1K840-B1i199205-199305
SHADOW GRAY/BLACK,TRIM1#
main71077-1K890-B0i199205-199308
SHADOW GRAY,TRIM1#
main71077-1K890-J0i199205-199308
DARK BLUE,TRIM8#
main71077-1K891-B0i199308-199407
SHADOW GRAY,TRIM1#
main71077-1K891-J0i199308-199407
DARK BLUE,TRIM8#
main71077-1K892-B0i199407-199505
SHADOW GRAY,TRIM1#
main71077-1K892-J0i199407-199505
DARK BLUE,TRIM8#
main71077-1L030-B0i199205-199305
SHADOW GRAY,TRIM1#
main71077-1L030-J0i199205-199305
DARK BLUE,TRIM8#
main71077-1L031-B1i199305-199405
SHADOW GRAY,TRIM1#
main71077-1L031-J1i199305-199405
DARK BLUE,TRIM8#
main71077-1L032-B1i199405-199505
SHADOW GRAY,TRIM1#
main71077-1L032-J1i199405-199505
DARK BLUE,TRIM8#
main71077-1L040-B0i199205-199305
SHADOW GRAY,TRIM1#
main71077-1L040-J0i199205-199305
DARK BLUE,TRIM8#
main71077-1L041-B1i199305-199405
SHADOW GRAY,TRIM1#
main71077-1L041-J1i199305-199405
DARK BLUE,TRIM8#
main71077-1L042-B1i199405-199505
SHADOW GRAY,TRIM1#
main71077-1L042-J1i199405-199505
DARK BLUE,TRIM8#
main71077-1L043-B2i199505
SHADOW GRAY,TRIM1#
main71077-1L043-B2i199611-199704
'97 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#
main71077-1L043-B3i199505
GRAY/BLUE,TRIM8#
main71077-1L101-B1i199305-199401
W(HEADREST),SHADOW GRAY,TRIM1#
main71077-1L101-J1i199305-199401
W(HEADREST),DARK BLUE,TRIM8#
main71077-1L102-B2i199401-199405
W(HEADREST),SHADOW GRAY,TRIM1#
sub71077-1L102
main71077-1L102-B3i199401-199405
W(HEADREST),GRAY/BLUE,TRIM8#
sub71077-1L102
main71077-1L102-J2i199401-199405
W(HEADREST),DARK BLUE,TRIM8#
sub71077-1L102
main71077-1L103-B2i199405-199505
W(HEADREST),SHADOW GRAY,TRIM1#
sub71077-1L103
main71077-1L103-B3i199405-199407
W(HEADREST),DARK BLUE,TRIM8#
sub71077-1L103
main71077-1L103-J3i199407-199505
W(HEADREST),BLUE/GRAY,TRIM8#
sub71077-1L103
main71077-1L104-B4i199505-199605
W(HEADREST),SHADOW GRAY,TRIM1#
main71077-1L104-B5i199505-199605
W(HEADREST),GRAY/BLUE,TRIM8#
main71077-1L111-B1i199305-199405
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & HEADREST),SHADOW GRAY,TRIM1#
main71077-1L111-J1i199305-199405
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & HEADREST),DARK BLUE,TRIM8#
main71077-1L112-B1i199405-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & HEADREST),SHADOW GRAY,TRIM1#
main71077-1L112-J1i199405-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & HEADREST),DARK BLUE,TRIM8#
main71077-1L121-B1i199305-199405
SHADOW GRAY,TRIM1#
main71077-1L121-J1i199305-199405
DARK BLUE,TRIM8#
main71077-1L122-B1i199405-199505
SHADOW GRAY,TRIM1#
main71077-1L122-J1i199405-199505
DARK BLUE,TRIM8#
main71077-1L123-B2i199605
W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1#
main71077-1L123-B2i199505
SHADOW GRAY,TRIM1#
main71077-1L123-B3i199605
W(FULL FABRIC GL(BA**/BB**)),GRAY/BLUE,TRIM8#
main71077-1L123-B3i199505
GRAY/BLUE,TRIM8#
main71077-1L131-B1i199305-199405
SHADOW GRAY/BLACK,TRIM1#
main71077-1L132-B1i199405-199505
SHADOW GRAY/BLACK,TRIM1#
main71077-1L141-B1i199305-199405
SHADOW GRAY/BLACK,TRIM1#
main71077-1L142-B1i199405-199505
SHADOW GRAY/BLACK,TRIM1#
main71077-1L170-B0i199305-199308
SHADOW GRAY,TRIM1#
main71077-1L170-J0i199305-199308
DARK BLUE,TRIM8#
main71077-1L171-B0i199308-199407
SHADOW GRAY,TRIM1#
main71077-1L171-J0i199308-199407
DARK BLUE,TRIM8#
main71077-1L172-B0i199407-199505
SHADOW GRAY,TRIM1#
main71077-1L172-J0i199407-199505
DARK BLUE,TRIM8#
main71077-1L230-B0i199401-199405
SHADOW GRAY,TRIM1#
sub71077-1L230
main71077-1L230-B1i199401-199405
GRAY/BLUE,TRIM8#
sub71077-1L230
main71077-1L230-J0i199401-199405
DARK BLUE,TRIM8#
sub71077-1L230
main71077-1L231-B0i199405-199505
SHADOW GRAY,TRIM1#
sub71077-1L231
main71077-1L231-B1i199405-199407
GRAY/BLUE,TRIM8#
sub71077-1L231
main71077-1L231-J1i199407-199505
BLUE/GRAY,TRIM8#
sub71077-1L231
main71077-1L232-B2i199505-199605
SHADOW GRAY,TRIM1#
main71077-1L232-B3i199505-199605
GRAY/BLUE,TRIM8#
main71077-1L280-B0i199412-199504
95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1#
main71077-1L320-B0i199511-199604
'96 SPRING CAMPAIGN(FRANCE),SHADOW GRAY,TRIM1
main71077-1L320-B0i199511-199604
'96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1
main71077-1L320-B0i199511-199604
'96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1
main71077-1L320-B0i199511-199604
'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),SHADOW GRAY,TRIM1
main71077-1L320-B0i199512-199604
'96 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1
main71077-1L320-B0i199601
50TH ANNIVERSARY,SHADOW GRAY,TRIM1#
main71077-1L330-B0i199605
SHADOW GRAY,TRIM1#
main71077-1L340-B0i199605
W(HEADREST),SHADOW GRAY,TRIM1#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-1E020-B0i199205-199305
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main71078-1E020-J0i199205-199305
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main71078-1E021-B2i199305-199405
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main71078-1E021-J1i199305-199405
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main71078-1E022-B2i199405-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main71078-1E022-B2i199605-199704
W(FULL FABRIC SR)-*99,SHADOW GRAY,TRIM1#
main71078-1E022-J1i199405-199704
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main71078-1E030-B1i199211-199305
SHADOW GRAY/BLACK,TRIM1#
main71078-1E070-B1i199205-199305
SHADOW GRAY/BLACK,TRIM1#
main71078-1E120-B0i199205-199308
SHADOW GRAY,TRIM1#
main71078-1E120-J0i199205-199308
DARK BLUE,TRIM8#
main71078-1E121-B0i199308-199407
SHADOW GRAY,TRIM1#
main71078-1E121-J0i199308-199407
DARK BLUE,TRIM8#
main71078-1E122-B0i199407-199505
SHADOW GRAY,TRIM1#
main71078-1E122-J0i199407-199505
DARK BLUE,TRIM8#
main71078-1E150-B0i199205-199305
SHADOW GRAY,TRIM1#
main71078-1E150-J0i199205-199305
DARK BLUE,TRIM8#
main71078-1E151-B1i199305-199405
SHADOW GRAY,TRIM1#
main71078-1E151-J1i199305-199405
DARK BLUE,TRIM8#
main71078-1E152-B1i199405-199505
SHADOW GRAY,TRIM1#
main71078-1E152-J1i199405-199505
DARK BLUE,TRIM8#
main71078-1E160-B0i199205-199305
SHADOW GRAY,TRIM1#
main71078-1E160-J0i199205-199305
DARK BLUE,TRIM8#
main71078-1E161-B1i199305-199405
SHADOW GRAY,TRIM1#
main71078-1E161-J1i199305-199405
DARK BLUE,TRIM8#
main71078-1E162-B1i199405-199505
SHADOW GRAY,TRIM1#
main71078-1E162-J1i199405-199505
DARK BLUE,TRIM8#
main71078-1E163-B2i199611-199704
'97 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#
main71078-1E163-B2i199505-199704
SHADOW GRAY,TRIM1#
main71078-1E163-B3i199505-199704
GRAY/BLUE,TRIM8#
main71078-1E211-B1i199305-199401
W(HEADREST),SHADOW GRAY,TRIM1#
main71078-1E211-J1i199305-199401
W(HEADREST),DARK BLUE,TRIM8#
main71078-1E212-B2i199401-199405
W(HEADREST),SHADOW GRAY,TRIM1#
sub71078-1E212
main71078-1E212-B3i199401-199405
W(HEADREST),GRAY/BLUE,TRIM8#
sub71078-1E212
main71078-1E212-J2i199401-199405
W(HEADREST),DARK BLUE,TRIM8#
sub71078-1E212
main71078-1E213-B2i199405-199505
W(HEADREST),SHADOW GRAY,TRIM1#
sub71078-1E213
main71078-1E213-B3i199405-199407
W(HEADREST),GRAY/BLUE,TRIM8#
sub71078-1E213
main71078-1E213-J3i199407-199505
W(HEADREST),BLUE/GRAY,TRIM8#
sub71078-1E213
main71078-1E214-B4i199505-199605
W(HEADREST),SHADOW GRAY,TRIM1#
main71078-1E214-B5i199505-199605
W(HEADREST),GRAY/BLUE,TRIM8#
main71078-1E221-B1i199305-199405
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & HEADREST),SHADOW GRAY,TRIM1#
main71078-1E221-J1i199305-199405
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & HEADREST),DARK BLUE,TRIM8#
main71078-1E222-B1i199405-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & HEADREST),SHADOW GRAY,TRIM1#
main71078-1E222-J1i199405-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & HEADREST),DARK BLUE,TRIM8#
main71078-1E231-B1i199305-199405
SHADOW GRAY,TRIM1#
main71078-1E231-J1i199305-199405
DARK BLUE,TRIM8#
main71078-1E232-B1i199405-199505
SHADOW GRAY,TRIM1#
main71078-1E232-J1i199405-199505
DARK BLUE,TRIM8#
main71078-1E233-B2i199605-199704
W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1#
main71078-1E233-B2i199505-199704
SHADOW GRAY,TRIM1#
main71078-1E233-B3i199605-199704
W(FULL FABRIC GL(BA**/BB**)),GRAY/BLUE,TRIM8#
main71078-1E233-B3i199505-199704
GRAY/BLUE,TRIM8#
main71078-1E241-B1i199305-199405
SHADOW GRAY/BLACK,TRIM1#
main71078-1E242-B1i199405-199505
SHADOW GRAY/BLACK,TRIM1#
main71078-1E251-B1i199305-199405
SHADOW GRAY/BLACK,TRIM1#
main71078-1E252-B1i199405-199704
SHADOW GRAY/BLACK,TRIM1#
main71078-1E270-B0i199305-199308
SHADOW GRAY,TRIM1#
main71078-1E270-J0i199305-199308
DARK BLUE,TRIM8#
main71078-1E271-B0i199308-199407
SHADOW GRAY,TRIM1#
main71078-1E271-J0i199308-199407
DARK BLUE,TRIM8#
main71078-1E272-B0i199407-199505
SHADOW GRAY,TRIM1#
main71078-1E272-J0i199407-199505
DARK BLUE,TRIM8#
main71078-1E310-B0i199401-199405
SHADOW GRAY,TRIM1#
sub71078-1E310
main71078-1E310-B1i199401-199405
GRAY/BLUE,TRIM8#
sub71078-1E310
main71078-1E310-J0i199401-199405
DARK BLUE,TRIM8#
sub71078-1E310
main71078-1E311-B0i199405-199505
SHADOW GRAY,TRIM1#
sub71078-1E311
main71078-1E311-J1i199407-199505
BLUE/GRAY,TRIM8#
sub71078-1E311
main71078-1E312-B2i199505-199704
SHADOW GRAY,TRIM1#
main71078-1E312-B3i199505-199704
GRAY/BLUE,TRIM8#
main71078-1E340-B0i199412-199504
95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1#
main71078-1E360-B0i199511-199604
'96 SPRING CAMPAIGN(FRANCE),SHADOW GRAY,TRIM1
main71078-1E360-B0i199511-199604
'96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1
main71078-1E360-B0i199511-199604
'96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1
main71078-1E360-B0i199511-199604
'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),SHADOW GRAY,TRIM1
main71078-1E360-B0i199512-199604
'96 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1
main71078-1E360-B0i199601-199604
50TH ANNIVERSARY(PORTUGAL),SHADOW GRAY,TRIM1#
main71078-1E370-B0i199605-199704
SHADOW GRAY,TRIM1#
main71078-1E380-B0i199605-199704
W(HEADREST),SHADOW GRAY,TRIM1#
71201PANEL SUB-ASSY, REAR SEAT CUSHION
main71201-13150i¥8,700199205
71250BBRACKET ASSY, SEAT, OUTER RH
main71250-13010i¥2,150199205
71260BRACKET ASSY, SEAT, OUTER LH
main71260-13010i¥2,150199205
71301DHINGE SUB-ASSY, REAR SEAT, RH
main71301-13070i¥1,550199205
71302DHINGE SUB-ASSY, REAR SEAT, LH
main71302-13030i¥980199205
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
main71303-12110i¥2,090199205
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
main71303-12110i¥2,090199205
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-12110i¥2,490199205
71393BAND, REAR SEAT CUSHION
main71393-13080-B0i199205-199704
SHADOW GRAY,TRIM1#,8#
sub71393-13080¥860
main71393-13080-B0i199205-199704
SHADOW GRAY,TRIM1#
sub71393-13080¥860
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
main71460-13650-B0i199205-199505
SHADOW GRAY,TRIM1#
main71460-13650-J0i199205-199505
DARK BLUE,TRIM8#
main71460-13651-B1i199605
W(FULL FABRIC GL(BA**/BB**)),GRAY/BLUE,TRIM8#
main71460-13651-B1i199505
GRAY/BLUE,TRIM8#
main71460-13651-B2i199611-199704
'97 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#
main71460-13651-B2i199505
SHADOW GRAY,TRIM1#
main71460-13651-B2i199605
W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1#
main71460-13670-B0i199205-199505
SHADOW GRAY,TRIM1#
main71460-13670-B0i199305-199401
W(HEADREST),SHADOW GRAY,TRIM1#
main71460-13670-J0i199305-199401
W(HEADREST),DARK BLUE,TRIM8#
main71460-13670-J0i199205-199505
DARK BLUE,TRIM8#
main71460-13750-B0i199401-199505
SHADOW GRAY,TRIM1#
main71460-13750-B0i199401-199505
W(HEADREST),SHADOW GRAY,TRIM1#
main71460-13750-B1i199401-199505
GRAY/BLUE,TRIM8#
main71460-13750-B1i199401-199505
W(HEADREST),GRAY/BLUE,TRIM8#
main71460-13750-J0i199401-199505
DARK BLUE,TRIM8#
main71460-13750-J0i199401-199505
W(HEADREST),DARK BLUE,TRIM8#
main71460-13751-B2i199505-199605
SHADOW GRAY,TRIM1#
main71460-13751-B2i199505-199605
W(HEADREST),SHADOW GRAY,TRIM1#
main71460-13751-B3i199505-199605
GRAY/BLUE,TRIM8#
main71460-13751-B3i199505-199605
W(HEADREST),GRAY/BLUE,TRIM8#
main71560-1E140-B1i199211-199505
SHADOW GRAY/BLACK,TRIM1#
main71560-1E150-B0i199205-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main71560-1E150-J0i199205-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main71560-1E200-B0i199205-199505
SHADOW GRAY,TRIM1#
main71560-1E200-J0i199205-199505
DARK BLUE,TRIM8#
main71560-1E220-B1i199205-199505
SHADOW GRAY/BLACK,TRIM1#
main71560-1E400-B0i199605
W(HEADREST),SHADOW GRAY,TRIM1#
main71560-1E400-B0i199605
SHADOW GRAY,TRIM1#
71480ECLIP, REAR SEATBACK, RH
main90467-07042-13i199405-199411
SHADOW GRAY,TRIM1#
sub90467-07042¥110
sub90467-06175¥220
main90467-07042-B1i199411-199704
SHADOW GRAY,TRIM1#
sub90467-07042¥110
sub90467-06175¥220
main90467-07042-J0i199405-199704
DARK BLUE,TRIM8#
sub90467-07042¥110
sub90467-06175¥220
main90467-07049-01i199205-199208
BLACK,TRIM1#,8#
sub90467-07049¥90
main90467-07049-01i199205-199208
BLACK,TRIM1#
sub90467-07049¥90
main90467-07049-C0i199208-199405
BLACK,TRIM1#
sub90467-07049¥90
main90467-07049-C0i199208-199407
BLACK,TRIM1#,8#
sub90467-07049¥90
71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
main71480-1K860-B1i199211-199305
SHADOW GRAY/BLACK,TRIM1#
main71480-1K870-B0i199205-199405
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main71480-1K870-J0i199205-199405
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main71480-1K871-B0i199405-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main71480-1K871-J0i199405-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main71480-1L030-B0i199205-199307
SHADOW GRAY,TRIM1#
main71480-1L030-J0i199205-199307
DARK BLUE,TRIM8#
main71480-1L031-B0i199307-199407
SHADOW GRAY,TRIM1#
main71480-1L031-J0i199307-199407
DARK BLUE,TRIM8#
main71480-1L032-B0i199407-199505
SHADOW GRAY,TRIM1#
main71480-1L032-J0i199407-199505
DARK BLUE,TRIM8#
main71480-1L080-B1i199205-199305
SHADOW GRAY/BLACK,TRIM1#
main71480-1L090-B0i199205-199405
SHADOW GRAY,TRIM1#
main71480-1L090-J0i199205-199405
DARK BLUE,TRIM8#
main71480-1L091-B0i199405-199505
SHADOW GRAY,TRIM1#
main71480-1L091-J0i199405-199505
DARK BLUE,TRIM8#
main71480-1L100-B0i199205-199405
SHADOW GRAY,TRIM1#
main71480-1L100-J0i199205-199405
DARK BLUE,TRIM8#
main71480-1L101-B0i199405-199505
SHADOW GRAY,TRIM1#
main71480-1L101-J0i199405-199505
DARK BLUE,TRIM8#
main71480-1L102-B1i199611-199704
'97 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#
main71480-1L102-B1i199505
SHADOW GRAY,TRIM1#
main71480-1L102-B2i199505
GRAY/BLUE,TRIM8#
main71480-1L170-B0i199305-199401
W(HEADREST),SHADOW GRAY,TRIM1#
main71480-1L170-J0i199305-199401
W(HEADREST),DARK BLUE,TRIM8#
main71480-1L171-B1i199401-199405
W(HEADREST),SHADOW GRAY,TRIM1#
main71480-1L171-B3i199401-199405
W(HEADREST),GRAY/BLUE,TRIM8#
main71480-1L171-J1i199401-199405
W(HEADREST),DARK BLUE,TRIM8#
main71480-1L172-B4i199405-199505
W(HEADREST),SHADOW GRAY,TRIM1#
main71480-1L172-B5i199405-199505
W(HEADREST),GRAY/BLUE,TRIM8#
main71480-1L173-B6i199505-199605
W(HEADREST),SHADOW GRAY,TRIM1#
main71480-1L173-B7i199505-199605
W(HEADREST),GRAY/BLUE,TRIM8#
main71480-1L180-B0i199305-199405
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & HEADREST),SHADOW GRAY,TRIM1#
main71480-1L180-J0i199305-199405
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & HEADREST),DARK BLUE,TRIM8#
main71480-1L181-B0i199405-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & HEADREST),SHADOW GRAY,TRIM1#
main71480-1L181-J0i199405-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & HEADREST),DARK BLUE,TRIM8#
main71480-1L190-B0i199305-199405
SHADOW GRAY,TRIM1#
main71480-1L190-J0i199305-199405
DARK BLUE,TRIM8#
main71480-1L191-B0i199405-199505
SHADOW GRAY,TRIM1#
main71480-1L191-J0i199405-199505
DARK BLUE,TRIM8#
main71480-1L192-B1i199505
SHADOW GRAY,TRIM1#
main71480-1L192-B1i199605
W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1#
main71480-1L192-B2i199505
GRAY/BLUE,TRIM8#
main71480-1L192-B2i199605
W(FULL FABRIC GL(BA**/BB**)),GRAY/BLUE,TRIM8#
main71480-1L200-B0i199305-199405
SHADOW GRAY/BLACK,TRIM1#
main71480-1L201-B1i199405-199505
SHADOW GRAY/BLACK,TRIM1#
main71480-1L210-B0i199305-199409
SHADOW GRAY/BLACK,TRIM1#
main71480-1L211-B0i199405-199505
SHADOW GRAY/BLACK,TRIM1#
main71480-1L230-B0i199305-199307
SHADOW GRAY,TRIM1#
main71480-1L230-J0i199305-199307
DARK BLUE,TRIM8#
main71480-1L231-B0i199307-199407
SHADOW GRAY,TRIM1#
main71480-1L231-J0i199307-199407
DARK BLUE,TRIM8#
main71480-1L232-B0i199407-199505
SHADOW GRAY,TRIM1#
main71480-1L232-J0i199407-199505
DARK BLUE,TRIM8#
main71480-1L290-B0i199401-199405
SHADOW GRAY,TRIM1#
main71480-1L290-B1i199401-199405
GRAY/BLUE,TRIM8#
main71480-1L290-J0i199401-199405
DARK BLUE,TRIM8#
main71480-1L291-B2i199405-199505
SHADOW GRAY,TRIM1#
main71480-1L291-B3i199405-199505
GRAY/BLUE,TRIM8#
main71480-1L292-B4i199505-199605
SHADOW GRAY,TRIM1#
main71480-1L292-B5i199505-199605
GRAY/BLUE,TRIM8#
main71480-1L360-B0i199605
SHADOW GRAY,TRIM1#
main71480-1L370-B0i199605
W(HEADREST),SHADOW GRAY,TRIM1#
71490ACLIP, REAR SEATBACK, LH
main90467-07042-13i199405-199411
SHADOW GRAY,TRIM1#
sub90467-07042¥110
sub90467-06175¥220
main90467-07042-B1i199411-199704
SHADOW GRAY,TRIM1#
sub90467-07042¥110
sub90467-06175¥220
main90467-07042-J0i199405-199704
DARK BLUE,TRIM8#
sub90467-07042¥110
sub90467-06175¥220
main90467-07049-01i199205-199208
BLACK,TRIM1#
sub90467-07049¥90
main90467-07049-01i199205-199208
BLACK,TRIM1#,8#
sub90467-07049¥90
main90467-07049-C0i199208-199405
BLACK,TRIM1#
sub90467-07049¥90
main90467-07049-C0i199208-199407
BLACK,TRIM1#,8#
sub90467-07049¥90
71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
main71490-1E110-B1i199211-199305
SHADOW GRAY/BLACK,TRIM1#
main71490-1E120-B0i199205-199405
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main71490-1E120-J0i199205-199405
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main71490-1E121-B0i199405-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main71490-1E121-J0i199405-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main71490-1E170-B0i199205-199307
SHADOW GRAY,TRIM1#
main71490-1E170-J0i199205-199307
DARK BLUE,TRIM8#
main71490-1E171-B0i199307-199407
SHADOW GRAY,TRIM1#
main71490-1E171-J0i199307-199407
DARK BLUE,TRIM8#
main71490-1E172-B0i199407-199505
SHADOW GRAY,TRIM1#
main71490-1E172-J0i199407-199505
DARK BLUE,TRIM8#
main71490-1E220-B0i199205-199405
SHADOW GRAY,TRIM1#
main71490-1E220-J0i199205-199405
DARK BLUE,TRIM8#
main71490-1E221-B0i199405-199505
SHADOW GRAY,TRIM1#
main71490-1E221-J0i199405-199505
DARK BLUE,TRIM8#
main71490-1E230-B0i199205-199405
SHADOW GRAY,TRIM1#
sub71490-1E230
main71490-1E230-J1i199205-199405
DARK BLUE,TRIM8#
sub71490-1E230
main71490-1E231-B0i199405-199505
SHADOW GRAY,TRIM1#
main71490-1E231-J1i199405-199505
DARK BLUE,TRIM8#
main71490-1E232-B1i199505
SHADOW GRAY,TRIM1#
main71490-1E232-B1i199611-199704
'97 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#
main71490-1E232-B2i199505
GRAY/BLUE,TRIM8#
main71490-1E240-B1i199205-199305
SHADOW GRAY/BLACK,TRIM1#
main71490-1E300-B0i199305-199401
W(HEADREST),SHADOW GRAY,TRIM1#
main71490-1E300-J0i199305-199401
W(HEADREST),DARK BLUE,TRIM8#
main71490-1E301-B1i199401-199405
W(HEADREST),SHADOW GRAY,TRIM1#
main71490-1E301-B2i199401-199405
W(HEADREST),GRAY/BLUE,TRIM8#
main71490-1E301-J1i199401-199405
W(HEADREST),DARK BLUE,TRIM8#
main71490-1E302-B3i199405-199505
W(HEADREST),SHADOW GRAY,TRIM1#
main71490-1E302-B4i199405-199505
W(HEADREST),GRAY/BLUE,TRIM8#
main71490-1E303-B5i199505-199605
W(HEADREST),SHADOW GRAY,TRIM1#
main71490-1E303-B6i199505-199605
W(HEADREST),GRAY/BLUE,TRIM8#
main71490-1E310-B0i199305-199405
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & HEADREST),SHADOW GRAY,TRIM1#
main71490-1E310-J0i199305-199405
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & HEADREST),DARK BLUE,TRIM8#
main71490-1E311-B0i199405-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & HEADREST),SHADOW GRAY,TRIM1#
main71490-1E311-J0i199405-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & HEADREST),DARK BLUE,TRIM8#
main71490-1E320-B0i199305-199405
SHADOW GRAY,TRIM1#
main71490-1E320-J0i199305-199405
DARK BLUE,TRIM8#
main71490-1E321-B0i199405-199505
SHADOW GRAY,TRIM1#
main71490-1E321-J0i199405-199505
DARK BLUE,TRIM8#
main71490-1E322-B1i199505
SHADOW GRAY,TRIM1#
main71490-1E322-B1i199605
W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1#
main71490-1E322-B2i199605
W(FULL FABRIC GL(BA**/BB**)),GRAY/BLUE,TRIM8#
main71490-1E322-B2i199505
GRAY/BLUE,TRIM8#
main71490-1E330-B0i199305-199405
SHADOW GRAY/BLACK,TRIM1#
main71490-1E331-B0i199405-199505
SHADOW GRAY/BLACK,TRIM1#
main71490-1E340-B0i199305-199409
SHADOW GRAY/BLACK,TRIM1#
main71490-1E341-B0i199405-199505
SHADOW GRAY/BLACK,TRIM1#
main71490-1E350-B0i199305-199307
SHADOW GRAY,TRIM1#
main71490-1E350-J0i199305-199307
DARK BLUE,TRIM8#
main71490-1E351-B0i199307-199407
SHADOW GRAY,TRIM1#
main71490-1E351-J0i199307-199407
DARK BLUE,TRIM8#
main71490-1E352-B0i199407-199505
SHADOW GRAY,TRIM1#
main71490-1E352-J0i199409-199505
DARK BLUE,TRIM8#
main71490-1E390-B0i199401-199405
SHADOW GRAY,TRIM1#
main71490-1E390-B1i199401-199405
GRAY/BLUE,TRIM8#
main71490-1E390-J0i199401-199405
DARK BLUE,TRIM8#
main71490-1E391-B2i199405-199505
SHADOW GRAY,TRIM1#
main71490-1E391-B3i199405-199505
GRAY/BLUE,TRIM8#
main71490-1E392-B4i199505-199605
SHADOW GRAY,TRIM1#
main71490-1E392-B5i199505-199605
GRAY/BLUE,TRIM8#
main71490-1E420-B0i199605
SHADOW GRAY,TRIM1#
main71490-1E430-B0i199605
W(HEADREST),SHADOW GRAY,TRIM1#
71611PAD, REAR SEAT CUSHION
main71611-13150i¥24,100199605
W(2 WAY VERTICAL SEAT)
main71611-13150i¥24,100199205
main71611-13180i¥23,900199205
main71611-13180i¥23,900199611-199704
'97 SPRING CAMPAIGN(UK),TRIM1#
main71611-13180i¥23,900199605
W(FULL FABRIC GL(BA**/BB**))
71629COVER, REAR SEAT CUSHION HINGE
main71629-13010-B0i199205-199305
SHADOW GRAY,TRIM1#
sub71629-13010¥760
main71629-13010-J0i199205-199305
DARK BLUE,TRIM8#
sub71629-13010¥760
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-13161i¥13,400199305-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**))
main71651-13161i¥13,400199205-199305
main71651-13210i199305-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & HEADREST)
main71651-13210i199305
main71651-13210i199605
W(FULL FABRIC GL(BA**/BB**))
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-13081i¥15,300199205-199305
main71652-13081i¥15,300199305-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**))
main71652-13090i199305-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & HEADREST)
main71652-13090i199305
main71652-13090i199605
W(FULL FABRIC GL(BA**/BB**))
71931ASUPPORT, REAR SEAT HEADREST
main71930-12070-B0i199305-199508
W(LOCK),SHADOW GRAY,TRIM1#
sub71930-12070¥1,240
sub71930-10070¥1,240
main71930-12070-J0i199305-199508
W(LOCK),DARK BLUE,TRIM8#
sub71930-12070¥1,240
sub71930-10070¥1,240
main71930-32020-B0i199508-199704
W(LOCK),SHADOW GRAY,TRIM1#
sub71930-32020¥1,240
main71930-32020-J0i199508-199704
W(LOCK),DK.BLUE,TRIM8#
sub71930-32020¥1,240
main71931-12040-B0i199305-199508
W/O(LOCK),SHADOW GRAY,TRIM1#
sub71931-12040¥920
sub71931-10020¥1,010
main71931-12040-J0i199305-199508
W/O(LOCK),DARK BLUE,TRIM8#
sub71931-12040¥920
sub71931-10020¥1,010
main71931-32020-B0i199508-199704
W/O(LOCK),SHADOW GRAY,TRIM1#
sub71931-32020¥920
main71931-32020-J0i199508-199704
W/O(LOCK),DK.BLUE,TRIM8#
sub71931-32020¥920
71940AHEADREST ASSY, REAR SEAT
main71940-12060-B1i199305-199401
W(HEADREST),SHADOW GRAY,TRIM1#
main71940-12060-J1i199305-199401
W(HEADREST),DARK BLUE,TRIM8#
main71940-12061-B2i199401-199505
W(HEADREST),SHADOW GRAY,TRIM1#
main71940-12061-J2i199401-199505
W(HEADREST),DARK BLUE,TRIM8#
main71940-12062-B3i199505-199605
W(HEADREST),SHADOW GRAY,TRIM1#
main71940-12062-J3i199505-199605
W(HEADREST),DARK BLUE,TRIM8#
main71940-12090-B1i199305-199505
SHADOW GRAY,TRIM1#
main71940-12090-J1i199305-199505
DARK BLUE,TRIM8#
main71940-12091-B2i199605-199704
W(FULL FABRIC GL(BG**/QR**)),SHADOW GRAY,TRIM1#
main71940-12091-B2i199505-199704
SHADOW GRAY,TRIM1#
main71940-12091-J2i199605-199704
W(FULL FABRIC GL(BG**/QR**)),DARK BLUE,TRIM8#
main71940-12091-J2i199505-199704
DARK BLUE,TRIM8#
main71940-12100-B0i199305-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main71940-12100-J0i199305-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main71940-12110-B0i199305-199505
SHADOW GRAY,TRIM1#
main71940-12110-C0i199305-199704
BLACK,TRIM1#
main71940-12110-J0i199305-199505
DARK BLUE,TRIM8#
main71940-12120-C0i199412-199504
95 SPRING CAMPAIGN,BLACK,TRIM1#
main71940-12130-C0i199511-199604
'96 SPRING CAMPAIGN(FRANCE),SHADOW GRAY,TRIM1
main71940-12130-C0i199511-199604
'96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1
main71940-12130-C0i199511-199604
'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),SHADOW GRAY,TRIM1
main71940-12130-C0i199511-199604
'96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1
main71940-12130-C0i199512-199604
'96 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1
main71940-12130-C0i199601
50TH ANNIVERSARY,SHADOW GRAY,TRIM1#
main71940-12140-B0i199605-199704
W(HEADREST),SHADOW GRAY,TRIM1#
72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH
main72601-13080i¥1,360199205
72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH
main72601-13080i¥1,360199205
72603LOCK SUB-ASSY, REAR SEATBACK, RH
main72630-13120i¥3,100199205
72604LOCK SUB-ASSY, REAR SEATBACK, LH
main72640-13120i¥3,100199205
72615ACOVER, REAR SEATBACK LOCK STRIKER, RH
main72615-12060-B0i199205
SHADOW GRAY,TRIM1#
sub72615-12060¥670
main72615-12060-J0i199205
DARK BLUE,TRIM8#
sub72615-12060¥670
72616ACOVER, REAR SEATBACK LOCK STRIKER, LH
main72616-12040-B0i199205
SHADOW GRAY,TRIM1#
sub72616-12040¥670
main72616-12040-J0i199205
DARK BLUE,TRIM8#
sub72616-12040¥670
72646GROMMET, REAR SEATBACK STOP BUTTON
main72646-13010-B0i199205-199704
SHADOW GRAY,TRIM1#
sub72646-13010¥740
main72646-13010-J0i199205-199704
DARK BLUE,TRIM8#
sub72646-13010¥740
72646AGROMMET, REAR SEATBACK STOP BUTTON
main72646-13010-B0i199205-199704
SHADOW GRAY,TRIM1#
sub72646-13010¥740
main72646-13010-J0i199205-199704
DARK BLUE,TRIM8#
sub72646-13010¥740
72656BUTTON, REAR SEATBACK STOP RELEASE
main72661-13030-B0i199205-199704
SHADOW GRAY,TRIM1#
sub72661-13030¥460
main72661-13030-J0i199205-199704
DARK BLUE,TRIM8#
sub72661-13030¥460
72656BBUTTON, REAR SEATBACK STOP RELEASE
main72661-13030-B0i199205-199704
SHADOW GRAY,TRIM1#
sub72661-13030¥460
main72661-13030-J0i199205-199704
DARK BLUE,TRIM8#
sub72661-13030¥460
72660DSUPPORT ASSY, REAR SEAT CUSHION
main72660-13010i¥1,070199205
72681HOOK, REAR SEATBACK LOCK, LOWER
main72681-16010-B2i199205-199704
SHADOW GRAY,TRIM1#
sub72681-16010¥300
main72681-16010-W3i199205-199704
DARK BLUE,TRIM8#
sub72681-16010¥300
72694COVER, REAR SEAT CUSHION LOCK
main72694-13010i¥250199205
sub72694-13011¥160
9010508102
main90105-08102¥160
9010508159
main90105-08159¥90
9011906126
main90119-06126¥70
9014980031
main90149-80031¥120
9015950321
main90159-50321¥120
9015960070
main90159-60070¥130
9046818071
main90468-18071¥160
9151160612
main91511-60612¥110
9354054014
main93540-54014¥100

47 parts on this diagram · 1 diagram in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
