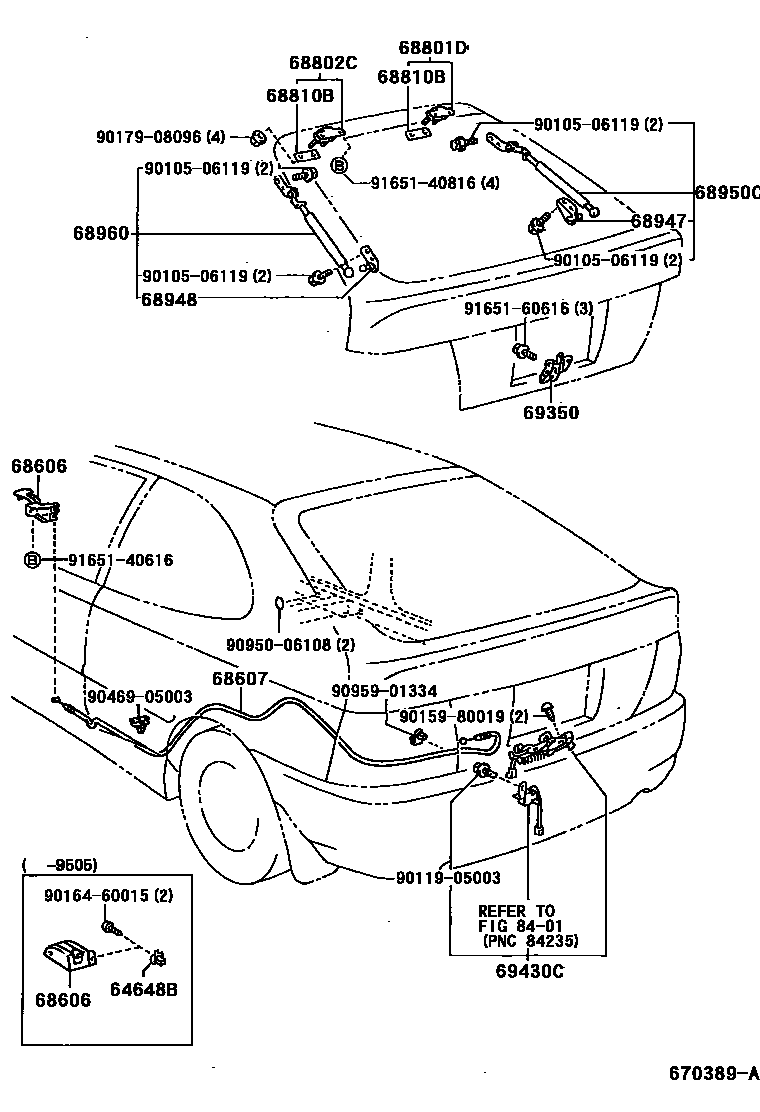

BACK DOOR LOCK & HANDLE

0001 1 0002 1

64648BGROMMET, BACK DOOR LOCK OPENER

main64648-12010×2iAE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI199205-199505

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-20090iAE101,CE100,EE101..LHD..(GLI,SI,XL,XLI)199505-199508

main64606-20091iAE101,CE100,EE101..LHD..(GLI,SI,XL,XLI)199508

main64606-20160iAE101,CE100,EE101..RHD199505-199508

main64606-20161iAE101,CE100,EE101..RHD199508

main64640-12090-03iAE10#,CE100,EE101..RHD199205-199505

SHADOW GRAY,TRIM1#

sub64640-12091

main64640-12090-04iAE101,CE100,EE101..RHD..(GLI,XL,XLI)199205-199505

DARK BLUE,TRIM8#

sub64640-12091

main64640-12100-B0iAE10#..LHD..(GTI,SI);AE101,CE100,EE10#..HB..5D..LHD..(XL,XLI)199401-199504

SHADOW GRAY,TRIM1#

main64640-12100-J0iAE101,CE100,EE10#..LHD..(GLI,XL,XLI)199205-199504

DARK BLUE,TRIM8#

main64640-12101-B0iAE10#..LHD..(GTI,SI);AE101,CE100,EE10#..HB..5D..LHD..(XL,XLI)199504-199505

SHADOW GRAY,TRIM1#

main64640-12101-J0iAE101,CE100,EE10#..LHD..(GLI,XL,XLI)199504-199505

DARK BLUE,TRIM8#

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-12620iAE10#,CE100,EE101..HB..RHD199205-199505

main64607-12621iAE101,CE100,EE101..RHD199505

main64607-12650iAE10#,CE100,EE10#..HB..LHD..(GLI,GTI,SI,XL,XLI)199205-199505

main64607-12651iAE101,CE100,EE101..LHD..(GLI,SI,XL,XLI)199505

main64607-12680iAE10#,CE100,EE101..LB..RHD199205-199505

main64607-12710iAE10#,CE100,EE10#..LB..LHD199205-199505

68801DHINGE SUB-ASSY, BACK DOOR, RH

main68801-12070iAE10#,CE100,EE10#..HB199205

T=1.6(PAD)

main68801-12080iAE10#,CE100,EE10#..LB199205-199505

main68801-12090iAE10#,CE100,EE10#..HB199205

T=1.1(PAD)

68802CHINGE SUB-ASSY, BACK DOOR, LH

main68801-12070iAE10#,CE100,EE10#..HB199205

T=1.6(PAD)

main68801-12080iAE10#,CE100,EE10#..LB199205-199505

main68801-12090iAE10#,CE100,EE10#..HB199205

T=1.1(PAD)

68810BPAD, BACK DOOR HINGE

main68838-12010×2iAE10#,CE100,EE10#..HB199205

T=1.6

main68838-12020×2iAE10#,CE100,EE10#..LB199205-199505

main68838-14022×2iAE10#,CE100,EE10#..HB199205

T=1.1

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-12030iAE10#,CE100,EE10#..HB199205

main68947-12040iAE10#,CE100,EE10#..LB199412-199505

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-12030iAE10#,CE100,EE10#..HB199205

main68948-12040iAE10#,CE100,EE10#..LB199412-199505

68950CSTAY ASSY, BACK DOOR, RH

main68950-19825iCE100,EE101..STD199205

main68950-19835iCE100,EE101..STD199205

W(*PW)

main68950-19855iAE102..3D199211-199505

main68950-80045iAE10#,CE100,EE10#..LB199205-199503

main68950-80046iAE10#,CE100,EE10#..LB199205-199503

W(*RS)

main68950-80047iAE10#,CE100,EE10#..LB199503-199505

main68950-80048iAE10#,CE100,EE10#..LB199503-199505

W(*RS)

68960STAY ASSY, BACK DOOR, LH

main68960-19515iCE100,EE101..STD199205

main68960-19525iCE100,EE101..STD199205

W(*PW)

main68960-19545iAE102..3D199211-199505

main68960-19615iAE10#,CE100,EE10#..LB199205-199503

main68960-19616iAE10#,CE100,EE10#..LB199503-199505

main68960-19625iAE10#,CE100,EE10#..LB199205-199503

W(*RS)

main68960-19626iAE10#,CE100,EE10#..LB199503-199505

W(*RS)

69350LOCK ASSY, BACK DOOR

main69350-12120iAE10#,CE100,EE10#..HB199205

main69350-12190iAE10#,CE100,EE10#..LB199205-199505

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-12300iAE10#,CE100,EE10#..LB199205-199311

main69430-12301iAE10#,CE100,EE10#..LB199311-199505

main69430-12310iAE10#,CE100,EE10#..HB199205-199311

main69430-12311iAE10#,CE100,EE10#..HB199311

8401

9010506119

main90105-06119

9011905003

main90119-05003

9015980019

main90159-80019

9016460015

main90164-60015

9017908096

main90179-08096

9046905003

main90469-05003

9095006108

main90950-06108

9095901334

main90959-01334

9165140616

main91651-40616

9165140816

main91651-40816

9165160616

main91651-60616

24 parts on this diagram · 2 diagrams in section
