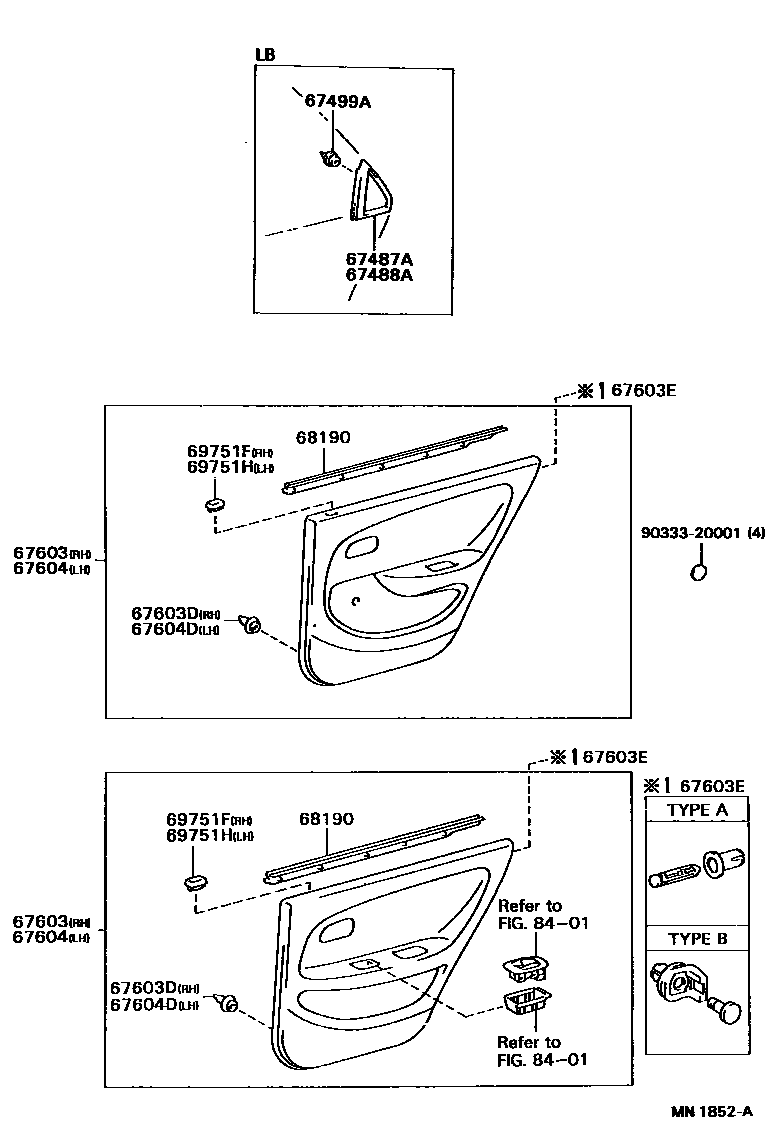

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH

main67487-12140iAE10#,CE100,EE10#..LB¥2,030199205-199505

67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH

main67488-12140iAE10#,CE100,EE10#..LB¥2,030199205-199505

67499ARETAINER, REAR DOOR LOWER FRAME BRACKET GARNISH

main67771-12050iAE10#,CE100,EE10#..LB¥160199205-199505

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-13210-B0iAE101,CE100,EE10#..HB..5D..(XL,XLI)199206-199401

SHADOW GRAY,TRIM1#

main67630-13210-J0iAE101,CE100,EE10#..HB..5D..(XL,XLI)199206-199401

DARK BLUE,TRIM8#

main67630-13230-B0iAE101..HB..GLI199206-199505

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67630-13230-J1iAE101..HB..GLI199206-199505

W(*PW & *EL),DARK BLUE,TRIM8#

main67630-13232-B1iAE101,CE100,EE101..5D..LHD..(XL,XLI)199605

W(FULL FABRIC GL(BG**/QR**) & POWER WINDOW),SHADOW GRAY,TRIM1#

main67630-13232-B1iAE101..GLI199505

W(*PW),SHADOW GRAY,TRIM1#

main67630-13232-J3iAE101..GLI199505

W(*PW),BLUE/GRAY,TRIM8#

main67630-13232-J3iAE101,CE100,EE101..5D..LHD..(XL,XLI)199605

W(FULL FABRIC GL(BG**/QR**) & POWER WINDOW),BLUE/GRAY,TRIM8#

main67630-13290-B0iEE101..HB..5D..LHD199206-199401

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67630-13290-B0iEE101..HB..5D..LHD199206-199401

W(*PW),SHADOW GRAY,TRIM1#

main67630-13290-J0iAE101..HB..5D..XLI199206-199401

W(*PW & *EL),DARK BLUE,TRIM8#

main67630-13290-J0iEE101..HB..5D..LHD199206-199401

W(*PW),DARK BLUE,TRIM8#

main67630-13320-B0iAE101..HB..GLI199206-199505

SHADOW GRAY,TRIM1#

main67630-13320-J1iAE101..HB..GLI199206-199505

DARK BLUE,TRIM8#

main67630-13321-B1iCE100,EE101..5D..RHD199611-199704

'97 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#

main67630-13321-B1iAE101..GLI199505

SHADOW GRAY,TRIM1#

main67630-13321-B1iAE101,CE100,EE101..5D..LHD..(XL,XLI)199605

W(FULL FABRIC GL(BG**/QR**)),SHADOW GRAY,TRIM1#

main67630-13321-J2iAE101,CE100,EE101..5D..LHD..(XL,XLI)199605

W(FULL FABRIC GL(BG**/QR**)),BLUE/GRAY,TRIM8#

main67630-13321-J2iAE101..GLI199505

BLUE/GRAY,TRIM8#

main67630-13430-B0iAE101,CE100,EE10#..HB..5D..(XL,XLI)199401-199505

SHADOW GRAY,TRIM1#

main67630-13430-J0iAE101,CE100,EE10#..HB..5D..(XL,XLI)199401-199505

DARK BLUE,TRIM8#

main67630-13431-B1iAE101,CE100,EE101..5D..(XL,XLI)199505-199605

SHADOW GRAY,TRIM1#

main67630-13431-J1iAE101,CE100,EE101..5D..(XL,XLI)199505-199605

BLUE/GRAY,TRIM8#

main67630-1E290-B0iAE101,CE100,EE101..5D..(XL,XLI)199605

SHADOW GRAY,TRIM1#

main67630-1E630-B0iAE101,CE100,EE10#..LB..(XL,XLI)199205-199401

SHADOW GRAY,TRIM1#

main67630-1E630-J0iAE101,CE100,EE10#..LB..(XL,XLI)199205-199401

DARK BLUE,TRIM8#

main67630-1E631-B1iAE101,CE100,EE10#..LB..(XL,XLI)199401-199505

SHADOW GRAY,TRIM1#

main67630-1E631-J1iAE101,CE100,EE10#..LB..(XL,XLI)199401-199505

DARK BLUE,TRIM8#

main67630-1E640-B0iAE101,CE100,EE10#..LB..LHD..(XL,XLI)199205-199505

W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#

main67630-1E640-J0iAE101,CE100,EE10#..LB..(XL,XLI)199205-199505

W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#

main67630-1E650-B0iAE101,EE101..LB..GLI199205-199505

SHADOW GRAY,TRIM1#

main67630-1E650-J0iAE101,EE101..LB..GLI199205-199505

DARK BLUE,TRIM8#

main67630-1E660-B0iAE101,EE101..LB..GLI199205-199505

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67630-1E660-J0iAE101,EE101..LB..GLI199205-199505

W(*PW & *EL),DARK BLUE,TRIM8#

main67630-1E670-B0iAE102..5D199211-199505

SHADOW GRAY,TRIM1#

main67630-1E680-B0iAE102..5D199211-199505

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67630-1E690-B0iAE101,EE101..LB..XLI199205-199401

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67630-1E690-J0iAE101,EE101..LB..XLI199205-199401

W(*PW & *EL),DARK BLUE,TRIM8#

main67630-1E850-B0iCE100,EE101..5D..RHD199206-199605

W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#

main67630-1E850-J0iCE100,EE101..5D..RHD199206-199605

W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#

main67630-1H120-B0iAE101,CE100,EE101..5D..LHD..(XL,XLI)199605

W(*PW),SHADOW GRAY,TRIM1#

main67630-1H240-B0iAE101,CE100,EE101..LB..LHD..(XL,XLI)199401-199505

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67630-1H240-J0iAE101,EE101..LB..XLI199401-199505

W(*PW & *EL),DARK BLUE,TRIM8#

main67630-1H250-B0iCE100,EE101..HB..5D..LHD199401-199505

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67630-1H250-B0iAE101..HB..5D..XLI199401-199505

W(*PW),SHADOW GRAY,TRIM1#

main67630-1H250-J0iCE100,EE101..HB..5D..LHD199401-199505

W(*PW & *EL),DARK BLUE,TRIM8#

main67630-1H250-J0iCE100,EE101..HB..5D..LHD199401-199505

W(*PW),DARK BLUE,TRIM8#

main67630-1H251-B1iAE101,CE100,EE101..5D..LHD..(XL,XLI)199505-199605

W(*PW),SHADOW GRAY,TRIM1#

main67630-1H251-J1iAE101,CE100,EE101..5D..LHD..(XL,XLI)199505-199605

W(*PW),BLUE / GRAY,TRIM8#

main67630-1H470-B0iCE100,EE101..5D..LHD..5F199511-199604

'96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1

main67630-1H470-B0iCE100,EE101..5D..LHD..5F199511-199604

'96 SPRING CAMPAIGN(FRANCE),SHADOW GRAY,TRIM1

main67630-1H470-B0iEE101..5D..LHD199601

50TH ANNIVERSARY,SHADOW GRAY,TRIM1#

main67630-1H470-B0iAE101,CE100,EE101..5D199412-199504

95 SPRING CAMPAIGN,W(*PW),SHADOW GRAY,TRIM1#

main67630-1H480-B0iAE101,EE101..5D..LHD..5F..XLI199511-199604

'96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1

main67630-1H480-B0iAE101,CE100..5D..LHD..(XL,XLI)199511-199604

'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),SHADOW GRAY,TRIM1

main67630-1H480-B0iAE101,CE100,EE101..5D199412-199504

95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1#

main67630-1H480-B0iEE101..5D..RHD199512-199604

'96 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#

67603DRETAINER, REAR DOOR TRIM, RH

main67771-12050iAE101,CE100,EE10#..HB..5D¥160199401

main67771-16080iAE101..HB..LHD..5F..GLI¥160199206

NATURAL

main67771-28020iAE10#,CE100,EE10#..5D¥220199205-199505

67603ECLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-03iAE10#,CE100,EE10#..5D199205-199309

SHADOW GRAY,TRIM1#

sub90467-07066¥120

main90467-07066-J0iAE101,CE100,EE10#..5D199205-199704

DARK BLUE,TRIM8#

sub90467-07066¥120

main90467-07066-P0iAE10#,CE100,EE10#..5D199309-199704

SHADOW GRAY,TRIM1#

sub90467-07066¥120

main90467-07066-P0iAE10#,CE100,EE10#..5D199309-199704

SHADOW GRAY,TYPE A

sub90467-07066¥120

main90467-09141iAE10#,CE100,EE10#..5D¥260199205-199704

TYPE B

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-13210-B0iAE101,CE100,EE10#..HB..5D..(XL,XLI)199206-199401

SHADOW GRAY,TRIM1#

main67640-13210-J0iAE101,CE100,EE10#..HB..5D..(XL,XLI)199206-199401

DARK BLUE,TRIM8#

main67640-13230-B0iAE101..HB..GLI199206-199505

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67640-13230-J1iAE101..HB..GLI199206-199505

W(*PW & *EL),DARK BLUE,TRIM8#

main67640-13232-B1iAE101..GLI199505

W(*PW),SHADOW GRAY,TRIM1#

main67640-13232-B1iAE101,CE100,EE101..5D..LHD..(XL,XLI)199605

W(FULL FABRIC GL(BG**/QR**) & POWER WINDOW),SHADOW GRAY,TRIM1#

main67640-13232-J3iAE101,CE100,EE101..5D..LHD..(XL,XLI)199605

W(FULL FABRIC GL(BG**/QR**) & POWER WINDOW),BLUE/GRAY,TRIM8#

main67640-13232-J3iAE101..GLI199505

W(*PW),BLUE/GRAY,TRIM8#

main67640-13290-B0iEE101..HB..5D..LHD199206-199401

W(*PW),SHADOW GRAY,TRIM1#

main67640-13290-B0iEE101..HB..5D..LHD199206-199401

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67640-13290-J0iEE101..HB..5D..LHD199206-199401

W(*PW & *EL),DARK BLUE,TRIM8#

main67640-13290-J0iEE101..HB..5D..LHD199206-199401

W(*PW),DARK BLUE,TRIM8#

main67640-13320-B0iAE101..HB..GLI199206-199505

SHADOW GRAY,TRIM1#

main67640-13320-J1iAE101..HB..GLI199206-199505

DARK BLUE,TRIM8#

main67640-13321-B1iAE101,CE100,EE101..5D..LHD..(XL,XLI)199605

W(FULL FABRIC GL(BG**/QR**)),SHADOW GRAY,TRIM1#

main67640-13321-B1iAE101..GLI199505

SHADOW GRAY,TRIM1#

main67640-13321-B1iCE100,EE101..5D..RHD199611-199704

'97 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#

main67640-13321-J2iAE101,CE100,EE101..5D..LHD..(XL,XLI)199605

W(FULL FABRIC GL(BG**/QR**)),BLUE/GRAY,TRIM8#

main67640-13321-J2iAE101..GLI199505

BLUE/GRAY,TRIM8#

main67640-13430-B0iAE101,CE100,EE10#..HB..5D..(XL,XLI)199401-199505

SHADOW GRAY,TRIM1#

main67640-13430-J0iAE101,CE100,EE10#..HB..5D..(XL,XLI)199401-199505

DARK BLUE,TRIM8#

main67640-13431-B1iAE101,CE100,EE101..5D..(XL,XLI)199505-199605

SHADOW GRAY,TRIM1#

main67640-13431-J1iAE101,CE100,EE101..5D..(XL,XLI)199505-199605

BLUE/GRAY,TRIM8#

main67640-1E290-B0iAE101,CE100,EE101..5D..(XL,XLI)199605

SHADOW GRAY,TRIM1#

main67640-1E630-B0iAE101,CE100,EE10#..LB..(XL,XLI)199205-199401

SHADOW GRAY,TRIM1#

main67640-1E630-J0iAE101,CE100,EE10#..LB..(XL,XLI)199205-199401

DARK BLUE,TRIM8#

main67640-1E631-B1iAE101,CE100,EE10#..LB..(XL,XLI)199401-199505

SHADOW GRAY,TRIM1#

main67640-1E631-J1iAE101,CE100,EE10#..LB..(XL,XLI)199401-199505

DARK BLUE,TRIM8#

main67640-1E640-B0iAE101,CE100,EE10#..LB..(XL,XLI)199205-199505

W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#

main67640-1E640-J0iAE101,CE100,EE10#..LB..(XL,XLI)199205-199505

W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#

main67640-1E650-B0iAE101,EE101..LB..GLI199205-199505

SHADOW GRAY,TRIM1#

main67640-1E650-J0iAE101,EE101..LB..GLI199205-199505

DARK BLUE,TRIM8#

main67640-1E660-B0iAE101,EE101..LB..GLI199205-199505

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67640-1E660-J0iAE101,EE101..LB..GLI199205-199505

W(*PW & *EL),DARK BLUE,TRIM8#

main67640-1E670-B0iAE102..5D199211-199505

SHADOW GRAY,TRIM1#

main67640-1E680-B0iAE102..5D199211-199505

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67640-1E690-B0iAE101,EE101..LB..XLI199205-199401

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67640-1E690-J0iAE101,EE101..LB..XLI199205-199401

W(*PW & *EL),DARK BLUE,TRIM8#

main67640-1E850-B0iCE100,EE101..5D..RHD199206-199605

W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#

main67640-1E850-J0iAE101,CE100,EE10#..HB..5D..(XL,XLI)199206-199605

W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#

main67640-1H120-B0iAE101,CE100,EE101..5D..LHD..(XL,XLI)199605

W(*PW),SHADOW GRAY,TRIM1#

main67640-1H240-B0iAE101,EE101..LB..XLI199401-199505

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67640-1H240-J0iAE101,EE101..LB..XLI199401-199505

W(*PW & *EL),DARK BLUE,TRIM8#

main67640-1H250-B0iAE101..HB..5D..XLI199401-199505

W(*PW),DARK BLUE,TRIM1#

main67640-1H250-B0iCE100,EE101..HB..5D..LHD199401-199505

W(*PW & *EL),DARK BLUE,TRIM1#

main67640-1H250-J0iAE101..HB..5D..XLI199401-199505

W(*PW & *EL),DARK BLUE,TRIM8#

main67640-1H250-J0iCE100,EE101..HB..5D..LHD199401-199505

W(*PW),DARK BLUE,TRIM8#

main67640-1H251-B1iAE101,CE100,EE101..5D..LHD..(XL,XLI)199505-199605

W(*PW),SHADOW GRAY,TRIM1#

main67640-1H251-J1iAE101,CE100,EE101..5D..LHD..(XL,XLI)199505-199605

W(*PW),BLUE / GRAY,TRIM8#

main67640-1H470-B0iCE100,EE101..5D..LHD..5F199511-199604

'96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1

main67640-1H470-B0iCE100,EE101..5D..LHD..5F199511-199604

'96 SPRING CAMPAIGN(FRANCE),SHADOW GRAY,TRIM1

main67640-1H470-B0iAE101,CE100,EE101..5D199412-199504

95 SPRING CAMPAIGN;95 SPRING CAMPAIGN,W(*PW),SHADOW GRAY,TRIM1#

main67640-1H470-B0iEE101..5D..LHD199601

50TH ANNIVERSARY,SHADOW GRAY,TRIM1#

main67640-1H480-B0iAE101,CE100..5D..LHD..(XL,XLI)199511-199604

'96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1

main67640-1H480-B0iAE101,EE101..5D..LHD..5F..XLI199511-199604

'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),SHADOW GRAY,TRIM1

main67640-1H480-B0iEE101..5D..RHD199512-199604

'96 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#

67604DRETAINER, REAR DOOR TRIM, LH

main67771-12050iAE101,CE100,EE10#..HB..5D¥160199401

main67771-16080iAE101..HB..LHD..5F..GLI¥160199206

NATURAL

main67771-28020iAE10#,CE100,EE10#..5D¥220199205-199505

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68173-12050iAE101,CE100,EE10#..HB..5D¥3,100199206

main68173-12190iAE10#,CE100,EE10#..LB¥3,090199205-199505

RH

main68174-12030iAE10#,CE100,EE10#..LB¥3,090199205-199505

LH

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69751-12050-B0iAE10#,CE100,EE10#..5D199205-199704

SHADOW GRAY,TRIM1#

sub69751-12050¥370

main69751-12050-J0iAE101,CE100,EE10#..5D199205-199704

DARK BLUE,TRIM8#

sub69751-12050¥370

69751HHOLDER, REAR DOOR LOCK CONTRAL KNOB

main69751-12050-B0iAE10#,CE100,EE10#..5D199205-199704

SHADOW GRAY,TRIM1#

sub69751-12050¥370

main69751-12050-J0iAE101,CE100,EE10#..5D199205-199704

DARK BLUE,TRIM8#

sub69751-12050¥370

8401

9033320001

main90333-20001¥70

13 parts on this diagram · 3 diagrams in section
