EPC Data

FRONT DOOR PANEL & GLASS

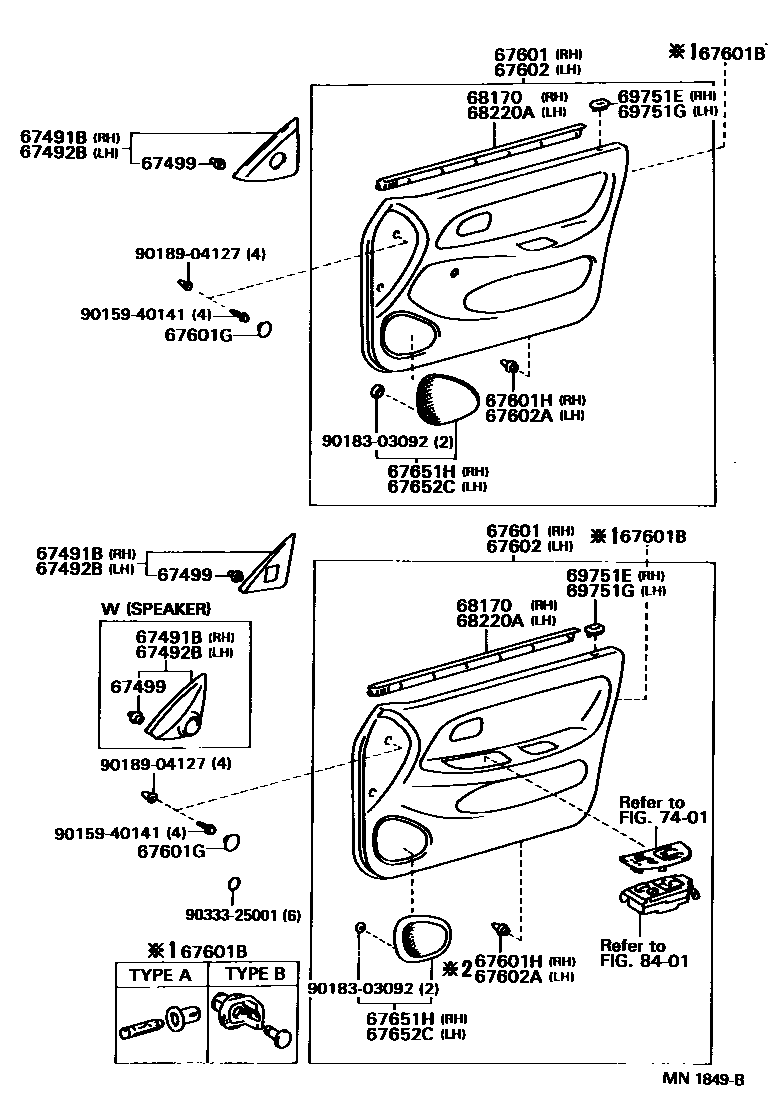

Parts diagram
67491BGARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH
main67491-12231i199206
W(ELECTRICAL REMOTE CONTROL DOOR MIRROR)
main67491-12241i199206-199505
W(MANUAL REMOTE CONTROL DOOR MIRROR)
main67491-12261i199205-199505
W(ELECTRICAL REMOTE CONTROL DOOR MIRROR)
main67491-12310i199305-199505
W(ELECTRICAL REMOTE CONTROL DOOR MIRROR)
main67491-12320i199205-199505
W(MANUAL REMOTE CONTROL DOOR MIRROR)
main67491-12350i199205-199505
W(MANUAL REMOTE CONTROL DOOR MIRROR)
67492BGARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH
main67492-12231i199605
W(DOOR MIRROR)
main67492-12241i199206-199505
W(MANUAL REMOTE CONTROL DOOR MIRROR)
main67492-12261i199205-199505
W(ELECTRICAL REMOTE CONTROL DOOR MIRROR)
main67492-12270i199505
W(ELECTRICAL REMOTE CONTROL DOOR MIRROR)
main67492-12310i199205-199505
W(MANUAL REMOTE CONTROL DOOR MIRROR)
main67492-12340i199205-199505
W(MANUAL REMOTE CONTROL DOOR MIRROR)
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67771-30070×4i199205
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-13310-B0i199206-199401
SHADOW GRAY,TRIM1#
main67610-13310-J0i199206-199401
DARK BLUE,TRIM8#
main67610-13480-B0i199401-199505
SHADOW GRAY,TRIM1#
main67610-13480-J0i199401-199505
DARK BLUE,TRIM8#
main67610-13481-B1i199505-199605
SHADOW GRAY,TRIM1#
main67610-13481-J1i199505-199605
BLUE/GRAY,TRIM8#
main67610-1H010-B0i199412-199504
95 SPRING CAPAIGN,SHADOW GRAY,TRIM1#
main67610-1H120-B0i199401-199405
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67610-1H120-J0i199405-199505
W(*PW & *EL),DARK BLUE,TRIM8#
main67610-1H130-B0i199205-199401
SHADOW GRAY,TRIM1#
main67610-1H130-J0i199205-199401
DARK BLUE,TRIM8#
main67610-1H131-B1i199401-199505
SHADOW GRAY,TRIM1#
main67610-1H131-J1i199401-199505
DARK BLUE,TRIM8#
main67610-1H140-B0i199205-199505
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main67610-1H140-J0i199205-199505
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main67610-1H150-B0i199205-199505
SHADOW GRAY,TRIM1#
main67610-1H150-J0i199205-199505
DARK BLUE,TRIM8#
main67610-1H160-B0i199205-199305
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67610-1H160-J0i199205-199305
W(*PW & *EL),DARK BLUE,TRIM8#
main67610-1H161-B0i199305-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67610-1H161-J0i199305-199505
W(*PW & *EL),DARK BLUE,TRIM8#
main67610-1H170-B0i199205-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67610-1H170-J0i199205-199505
W(*PW & *EL),DARK BLUE,TRIM8#
main67610-1H180-B0i199211-199505
SHADOW GRAY,TRIM1#
main67610-1H190-B0i199211-199305
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67610-1H191-B0i199305-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67610-1H200-B0i199211-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67610-1H220-B0i199212-199401
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67610-1H220-J0i199212-199401
W(*PW & *EL),DARK BLUE,TRIM8#
main67610-1H360-B0i199211-199505
SHADOW GRAY,TRIM1#
main67610-1H370-B0i199605-199704
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main67610-1H370-J0i199311-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main67610-1H390-B0i199206-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main67610-1H390-J0i199206-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main67610-1H400-B0i199512-199604
'96 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#
main67610-1H450-B0i199205-199212
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67610-1H450-J0i199205-199212
W(*PW & *EL),DARK BLUE,TRIM8#
main67610-1H530-B0i199205-199401
W(*PW),SHADOW GRAY,TRIM1#
main67610-1H530-J0i199205-199401
W(*PW),DARK BLUE,TRIM8#
main67610-1H531-B1i199401-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67610-1H531-J1i199401-199405
W(*PW),DARK BLUE,TRIM8#
main67610-1H532-B2i199505-199605
W(*PW),SHADOW GRAY,TRIM1#
main67610-1H532-J2i199505-199605
W(*PW),BLUE/GRAY,TRIM8#
main67610-1H570-B0i199511-199604
'96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1
main67610-1H610-B0i199512-199604
'96 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#
main67610-1H832-B2i199505-199605
SHADOW GRAY,TRIM1#
main67610-1H832-J2i199505-199605
BLUE/GRAY,TRIM8#
main67620-1K821-B1i199611-199704
'97 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#
main67650-1E130-B0i199206-199505
SHADOW GRAY,TRIM1#
main67650-1E130-J1i199206-199505
DARK BLUE,TRIM8#
main67650-1E140-B0i199206-199401
W(*PW),SHADOW GRAY,TRIM1#
main67650-1E140-J0i199206-199401
W(*PW),DARK BLUE,TRIM8#
main67650-1E141-B1i199511-199604
'96 SPRING CAMPAIGN(FINLAND),SHADOW GRAY,TRIM1#
main67650-1E141-J1i199505-199605
W(POWER WINDOW---FRONT ONLY) OR W(FRONT *PW & REAR *PW),BLUE/GRAY,TRIM8#
main67650-1E182-B1i199505-199704
W(*PW),SHADOW GRAY,TRIM1#
main67650-1E182-J2i199505-199704
W(*PW),BLUE/GRAY,TRIM8#
main67650-1E190-B0i199206-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67650-1E190-J1i199206-199505
W(*PW & *EL),DARK BLUE,TRIM8#
main67650-1E191-B1i199505-199704
W(*PW),SHADOW GRAY,TRIM1#
main67650-1E191-J2i199605-199704
W(FULL FABRIC GL(BA**/BB**) & POWER WINDOW),BLUE/GRAY,TRIM8#
main67650-1E670-B0i199205-199305
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67650-1E671-B0i199305-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67650-1E680-B0i199211-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67650-1E690-B0i199211-199305
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67650-1E691-B0i199305-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67650-1E692-B0i199505-199704
W(*PW),SHADOW GRAY,TRIM1#
main67650-1E850-B0i199205-199704
SHADOW GRAY,TRIM1#
main67650-1E850-J0i199205-199704
DARK BLUE,TRIM8#
main67650-1E860-B0i199205-199704
W(SPEAKER),SHADOW GRAY,TRIM1#
main67650-1E860-J0i199205-199704
W(SPEAKER),DARK BLUE,TRIM8#
main67650-1E870-B0i199205-199401
SHADOW GRAY,TRIM1#
main67650-1E870-J0i199205-199401
DARK BLUE,TRIM8#
main67650-1E871-B1i199401-199505
SHADOW GRAY,TRIM1#
main67650-1E871-J1i199401-199505
DARK BLUE,TRIM8#
main67650-1E872-B2i199505-199605
SHADOW GRAY,TRIM1#
main67650-1E872-J2i199505-199605
BLUE/GRAY,TRIM8#
main67650-1E880-B0i199205-199505
SHADOW GRAY,TRIM1#
main67650-1E880-J1i199205-199505
DARK BLUE,TRIM8#
main67650-1E890-B0i199205-199305
W(*PW),SHADOW GRAY,TRIM1#
main67650-1E890-J0i199205-199305
W(*PW),DARK BLUE,TRIM8#
main67650-1E891-B0i199305-199505
W(*PW),SHADOW GRAY,TRIM1#
main67650-1E891-J1i199305-199505
W(*PW),DARK BLUE,TRIM8#
main67650-1E892-B1i199505-199704
SHADOW GRAY,TRIM1#
main67650-1E892-J2i199505-199704
BLUE/GRAY,TRIM8#
main67650-1H021-B1i199605-199704
W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1#
main67650-1H021-J1i199505-199704
BLUE/GRAY,TRIM8#
main67650-1H032-B2i199505-199605
SHADOW GRAY,TRIM1#
main67650-1H032-J2i199505-199605
BLUE/GRAY,TRIM8#
main67650-1H110-B0i199401-199505
W(*PW),SHADOW GRAY,TRIM1#
main67650-1H110-J0i199401-199505
W(*PW),DARK BLUE,TRIM8#
main67650-1H130-B0i199311-199704
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main67650-1H130-J0i199311-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main67650-1H140-B0i199311-199505
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main67650-1H140-J0i199311-199505
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main67650-1H290-B0i199505-199605
W(*PW),SHADOW GRAY,TRIM1#
main67650-1H290-J0i199505-199605
W(*PW),BLUE/GRAY,TRIM8#
main67650-1H300-B0i199505-199605
W(*PW),SHADOW GRAY,TRIM1#
main67650-1H300-J0i199505-199605
W(*PW),BLUE/GRAY,TRIM8#
main67650-1H310-B0i199505-199704
SHADOW GRAY,TRIM1#
main67650-1H310-J0i199505-199704
BLUE/GRAY,TRIM8#
main67650-1H350-B0i199412-199504
95 SPRING GAMPAIGN,W(*PW),SHADOW GRAY,TRIM1#
main67650-1H360-B0i199412-199504
95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1#
main67650-1H370-B0i199412-199504
95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1#
main67650-1H390-B0i199511-199604
'96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1
main67650-1H520-B0i199605-199704
W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1#
main67650-1H520-J0i199605-199704
W(FULL FABRIC GL(BA**/BB**)),BLUE/GRAY,TRIM8#
main67650-1H530-B0i199605-199704
W(FULL FABRIC GL(BA**/BB**) & POWER WINDOW),SHADOW GRAY,TRIM1#
main67650-1H530-J0i199605-199704
W(FULL FABRIC GL(BA**/BB**) & POWER WINDOW),BLUE/GRAY,TRIM8#
main67650-1H540-B0i199605-199704
SHADOW GRAY,TRIM1#
main67650-1H550-B0i199605-199704
W(*PW),SHADOW GRAY,TRIM1#
main67650-1H560-B0i199605-199704
SHADOW GRAY,TRIM1#
main67650-1H570-B0i199605-199704
W(*PW),SHADOW GRAY,TRIM1#
main67650-1H580-B0i199605-199704
SHADOW GRAY,TRIM1#
main67650-1H590-B0i199605-199704
W(*PW),SHADOW GRAY,TRIM1#
main67650-1H600-B0i199605-199704
SHADOW GRAY,TRIM1#
main67650-1H610-B0i199605-199704
W(*PW),SHADOW GRAY,TRIM1#
main68650-1H310-B0i199611-199704
'97 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-07066-03×4i199205-199309
SHADOW GRAY,TRIM1#
main90467-07066-J0×4i199205-199704
DARK BLUE,TRIM8#
main90467-07066-P0×8i199505-199704
W(*PW),SHADOW GRAY,TYPE A
main90467-09141×4i199205-199704
TYPE B
67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
main90950-01800-B0×4i199205-199704
SHADOW GRAY,TRIM1#
main90950-01800-J0×4i199205-199704
DARK BLUE,TRIM8#
67601HRETAINER, DOOR TRIM, RH
main67771-12050×5i199401
RED
main67771-12070×8i199205-199401
WHITE
main67771-16170×8i199401
SABLE
main67771-28020×6i199302-199306
W(*PW)
main67771-28030×2i199211-199505
W(*PW),YELLOW
main67771-30090i199401
YELLOW
main90467-08179×3i199205
YELLOW
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67050-12010-B0i199511-199604
'96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1
main67050-12020-B0i199511-199604
'96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1
main67050-12030-B0i199511-199604
'96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1
main67050-12040-B0i199605-199704
W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1#
main67050-12040-J0i199605-199704
W(FULL FABRIC GL(BA**/BB**)),BLUE/GRAY,TRIM8#
main67050-12050-B0i199605-199704
W(FULL FABRIC GL(BA**/BB**) & POWER WINDOW),SHADOW GRAY,TRIM1#
main67050-12050-J0i199605-199704
W(FULL FABRIC GL(BA**/BB**) & POWER WINDOW),BLUE/GRAY,TRIM8#
main67050-12060-B0i199605-199704
SHADOW GRAY,TRIM1#
main67050-12070-B0i199605-199704
W(*PW),SHADOW GRAY,TRIM1#
main67050-12080-B0i199605-199704
SHADOW GRAY,TRIM1#
main67050-12090-B0i199605-199704
W(FRONT *PW & REAR *PW),SHADOW GRAY,TRIM1#
main67050-12100-B0i199605-199704
W(*PW),SHADOW GRAY,TRIM1#
main67050-12110-B0i199605-199704
SHADOW GRAY,TRIM1#
main67050-12120-B0i199605-199704
W(FRONT *PW & REAR *PW),SHADOW GRAY,TRIM1#
main67050-12130-B0i199605-199704
SHADOW GRAY,TRIM1#
main67050-12140-B0i199605-199704
W(FRONT *PW & REAR *PW),SHADOW GRAY,TRIM1#
main67050-12150-B0i199601
50TH ANNIVERSARY,SHADOW GRAY,TRIM1#
main67620-13170-B0i199512-199604
'96 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#
main67620-13250-B0i199206-199401
SHADOW GRAY,TRIM1#
main67620-13250-J0i199206-199401
DARK BLUE,TRIM8#
main67620-1K191-B1i199505-199605
W(*PW),SHADOW GRAY,TRIM1#
main67620-1K191-J1i199505-199605
W(*PW),BLUE/GRAY,TRIM8#
main67620-1K210-B0i199206-199505
SHADOW GRAY,TRIM1#
main67620-1K210-J1i199206-199505
DARK BLUE,TRIM8#
main67620-1K211-B1i199605-199704
W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1#
main67620-1K211-J2i199605-199704
W(FULL FABRIC GL(BA**/BB**)),BLUE/GRAY,TRIM8#
main67620-1K320-B0i199205-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67620-1K410-B0i199211-199305
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67620-1K411-B0i199305-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67620-1K412-B0i199505-199704
W(*PW),SHADOW GRAY,TRIM1#
main67620-1K620-B0i199512-199604
'96 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#
main67620-1K770-B0i199211-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67620-1K780-B0i199205-199304
SHADOW GRAY,TRIM1#
main67620-1K780-J0i199205-199304
DARK BLUE,TRIM8#
main67620-1K790-B0i199205-199304
W(SPEAKER),SHADOW GRAY,TRIM1#
main67620-1K790-J0i199205-199304
W(SPEAKER),DARK BLUE,TRIM8#
main67620-1K800-B0i199205-199304
SHADOW GRAY,TRIM1#
main67620-1K800-J0i199205-199304
DARK BLUE,TRIM8#
main67620-1K802-B2i199505-199605
SHADOW GRAY,TRIM1#
main67620-1K802-J2i199505-199605
BLUE/GRAY,TRIM8#
main67620-1K810-B0i199205-199505
SHADOW GRAY,TRIM1#
main67620-1K810-J1i199205-199505
DARK BLUE,TRIM8#
main67620-1K820-B0i199205-199505
W(*PW),SHADOW GRAY,TRIM1#
main67620-1K820-J1i199205-199505
W(*PW),DARK BLUE,TRIM8#
main67620-1K821-B1i199505-199704
SHADOW GRAY,TRIM1#
main67620-1K821-J2i199505-199704
BLUE/GRAY,TRIM8#
main67620-1K830-B0i199205-199304
SHADOW GRAY,TRIM1#
main67620-1L080-B0i199206-199305
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67620-1L080-J0i199206-199305
W(*PW & *EL),DARK BLUE,TRIM8#
main67620-1L081-B0i199305-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67620-1L081-J1i199305-199505
W(*PW & *EL),DARK BLUE,TRIM8#
main67620-1L082-B1i199505-199704
W(FRONT *PW & REAR *PW),SHADOW GRAY,TRIM1#
main67620-1L082-J2i199605-199704
W(FULL FABRIC GL(BA**/BB**) & POWER WINDOW),BLUE/GRAY,TRIM8#
main67620-1L140-B1i199205-199302
SHADOW GRAY,TRIM1#
main67620-1L140-J1i199306-199401
DARK BLUE,TRIM8#
main67620-1L141-B2i199401-199505
SHADOW GRAY,TRIM1#
main67620-1L141-J2i199401-199505
DARK BLUE,TRIM8#
main67620-1L150-B0i199205-199505
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main67620-1L150-J0i199205-199505
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main67620-1L160-B0i199306-199505
SHADOW GRAY,TRIM1#
main67620-1L160-J0i199306-199505
DARK BLUE,TRIM8#
main67620-1L170-B0i199205-199505
W(*PW & SPEAKER),SHADOW GRAY,TRIM1#
main67620-1L170-J0i199205-199505
W(*PW & SPEAKER),DARK BLUE,TRIM8#
main67620-1L180-B0i199205-199305
W(*PW & SPEAKER),SHADOW GRAY,TRIM1#
main67620-1L180-J0i199205-199305
W(*PW & SPEAKER),DARK BLUE,TRIM8#
main67620-1L181-B0i199305-199505
W(*PW & SPEAKER),SHADOW GRAY,TRIM1#
main67620-1L181-J0i199305-199505
W(*PW & SPEAKER),DARK BLUE,TRIM8#
main67620-1L190-B0i199211-199302
SHADOW GRAY,TRIM1#
main67620-1L200-B0i199302-199306
SHADOW GRAY,TRIM1#
main67620-1L210-B0i199211-199305
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67620-1L211-B0i199305-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67620-1L230-B0i199211-199304
SHADOW GRAY,TRIM1#
main67620-1L240-B0i199205-199304
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main67620-1L240-J0i199205-199304
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main67620-1L260-B0i199206-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main67620-1L260-J0i199206-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main67620-1L280-B0i199206-199305
W(*PW),SHADOW GRAY,TRIM1#
main67620-1L280-J0i199206-199305
W(*PW),DARK BLUE,TRIM8#
main67620-1L281-B0i199305-199401
W(*PW),SHADOW GRAY,TRIM1#
main67620-1L281-J0i199305-199401
W(*PW),DARK BLUE,TRIM8#
main67620-1L282-B1i199401-199505
W(*PW),SHADOW GRAY,TRIM1#
main67620-1L282-J1i199401-199505
W(*PW),DARK BLUE,TRIM8#
main67620-1L283-B2i199505-199605
W(FRONT *PW & REAR *PW),SHADOW GRAY,TRIM1#
main67620-1L283-J2i199505-199605
W(FRONT *PW & REAR *PW),BLUE/GRAY,TRIM8#
main67620-1L460-B0i199205-199305
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67620-1L460-J0i199205-199305
W(*PW & *EL),DARK BLUE,TRIM8#
main67620-1L461-B0i199305-199401
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67620-1L461-J0i199305-199401
W(*PW & *EL),DARK BLUE,TRIM8#
main67620-1L462-B3i199405-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67620-1L462-J3i199401-199405
W(*PW & *EL),DARK BLUE,TRIM8#
main67620-1L560-B0i199205-199305
W(*PW),SHADOW GRAY,TRIM1#
main67620-1L560-J0i199205-199305
W(*PW),DARK BLUE,TRIM8#
main67620-1L561-B0i199305-199401
W(*PW),SHADOW GRAY,TRIM1#
main67620-1L561-J0i199305-199401
W(*PW),DARK BLUE,TRIM8#
main67620-1L562-B1i199405-199505
W(*PW),SHADOW GRAY,TRIM1#
main67620-1L562-J1i199401-199505
W(FRONT *PW & REAR *PW),DARK BLUE,TRIM8#
main67620-1L563-B2i199511-199604
'96 SPRING CAMPAIGN(FINLAND),SHADOW GRAY,TRIM1#
main67620-1L563-J2i199505-199605
W(FRONT *PW),BLUE/GRAY,TRIM8#
main67620-1L600-B0i199205-199305
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67620-1L601-B0i199412-199504
95 SPRING CAMPAIGN,W(*PW),SHADOW GRAY,TRIM1#
main67620-1L730-B0i199302-199306
SHADOW GRAY,TRIM1#
main67620-1L730-J0i199302-199306
DARK BLUE,TRIM8#
main67620-1L740-B0i199302-199306
SHADOW GRAY,TRIM1#
main67620-1L740-J0i199302-199306
DARK BLUE,TRIM8#
main67620-1L750-B0i199302-199306
SHADOW GRAY,TRIM1#
main67620-1L820-B0i199304-199704
SHADOW GRAY,TRIM1#
main67620-1L820-J0i199304-199704
DARK BLUE,TRIM8#
main67620-1L830-B0i199304-199704
W(SPEAKER),SHADOW GRAY,TRIM1#
main67620-1L830-J0i199304-199704
W(SPEAKER),DARK BLUE,TRIM8#
main67620-1L840-B0i199304-199401
SHADOW GRAY,TRIM1#
main67620-1L840-J0i199304-199401
DARK BLUE,TRIM8#
main67620-1L841-B1i199401-199505
SHADOW GRAY,TRIM1#
main67620-1L841-J1i199401-199505
DARK BLUE,TRIM8#
main67620-1L842-B2i199505-199605
SHADOW GRAY,TRIM1#
main67620-1L842-J2i199505-199605
BLUE/GRAY,TRIM8#
main67620-1L850-B0i199412-199504
95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1#
main67620-1L860-B0i199505-199704
SHADOW GRAY,TRIM1#
main67620-1L870-B0i199311-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main67620-1L870-J0i199311-199605
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main67620-1N111-B1i199505-199605
SHADOW GRAY,TRIM1#
main67620-1N111-J1i199505-199605
BLUE/GRAY,TRIM8#
main67620-1N120-B0i199401-199505
SHADOW GRAY,TRIM1#
main67620-1N120-J0i199401-199505
DARK BLUE,TRIM8#
main67620-1N121-B1i199505-199605
SHADOW GRAY,TRIM1#
main67620-1N121-J1i199505-199605
BLUE/GRAY,TRIM8#
main67620-1N140-B0i199311-199704
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main67620-1N140-J0i199311-199704
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main67620-1N150-B0i199311-199505
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#
main67620-1N150-J0i199311-199505
W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#
main67620-1N400-B0i199505-199605
W(POWER WINDOW---FRONT ONLY),SHADOW GRAY,TRIM1#
main67620-1N400-J0i199505-199605
W(POWER WINDOW---FRONT ONLY),BLUE/GRAY,TRIM8#
main67620-1N420-B0i199511-199604
'96 SPRING CAMPAIGN(FINLAND),SHADOW GRAY,TRIM1#
main67620-1N420-J0i199505-199605
W(POWER WINDOW---FRONT ONLY),BLUE/GRAY,TRIM8#
main67620-1N430-B0i199605-199704
W(FULL FABRIC GL(BA**/BB**) & POWER WINDOW ONRY FRONT),SHADOW GRAY,TRIM1#
main67620-1N430-J0i199605-199704
W(FULL FABRIC GL(BA**/BB**) & POWER WINDOW ONRY FRONT),BLUE/GRAY,TRIM8#
main67620-1N450-B0i199611-199704
'97 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#
main67620-1N450-J0i199505-199704
DARK BLUE,TRIM8#
main67620-1N490-B0i199412-199504
95 SPRING CAMPAIGN,W(*PW),SHADOW GRAY,TRIM1#
main67620-1N500-B0i199412-199504
95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1#
main67620-1N510-B0i199412-199504
95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1#
main67620-1N530-B0i199412-199504
95 SPRING CAMPAIGN,W(*PW),SHADOW GRAY,TRIM1#
main67650-1E892-B1i199611-199704
'97 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#
67602ARETAINER, DOOR TRIM, LH
main67771-12050×6i199401-199505
W(*PW)
main67771-12070×8i199205-199401
WHITE
main67771-16170×8i199401
SABLE
main67771-28020×6i199302-199306
W(*PW)
main67771-28030×2i199211-199505
W(*PW),YELLOW
main67771-30090i199401
YELLOW
main90467-08179×3i199205
YELLOW
67651HGRILLE, SPEAKER DOOR, RH
main67651-12070-B0i199205-199704
SHADOW GRAY,TRIM1#
main67651-12070-J0i199205-199704
DARK BLUE,TRIM8#
main67651-19015-B0i199205-199704
SHADOW GRAY,TRIM1#
main67651-19015-J0i199205-199704
DARK BLUE,TRIM8#
67652CGRILLE, SPEAKER DOOR, LH
main67652-12070-B0i199205-199704
SHADOW GRAY,TRIM1#
main67652-12070-J0i199205-199704
DARK BLUE,TRIM8#
main67652-19015i199605-199704
main67652-19015-B0i199205-199605
SHADOW GRAY,TRIM1#
main67652-19015-J0i199205-199605
DARK BLUE,TRIM8#
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68171-12160i199206
main68171-12220i199205-199402
RH
main68171-12230i199205
68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH
main68172-12050i199206
main68172-12080i199205-199505
main68172-12150i199205
69751EHOLDER, FRONT DOOR LOCK CONTROL KNOB
main69751-12050-B0i199205-199704
SHADOW GRAY,TRIM1#
main69751-12050-J0i199205-199704
DARK BLUE,TRIM8#
69751GHOLDER, FRONT DOOR LOCK CONTROL KNOB
main69751-12050-B0i199205-199704
SHADOW GRAY,TRIM1#
main69751-12050-J0i199205-199704
DARK BLUE,TRIM8#
7401
8401
9015940141
main90159-40141
9018303092
main90183-03092
9018904127
main90189-04127
9033325001
main90333-25001

21 parts on this diagram · 6 diagrams in section

FRONT DOOR PANEL & GLASS — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
