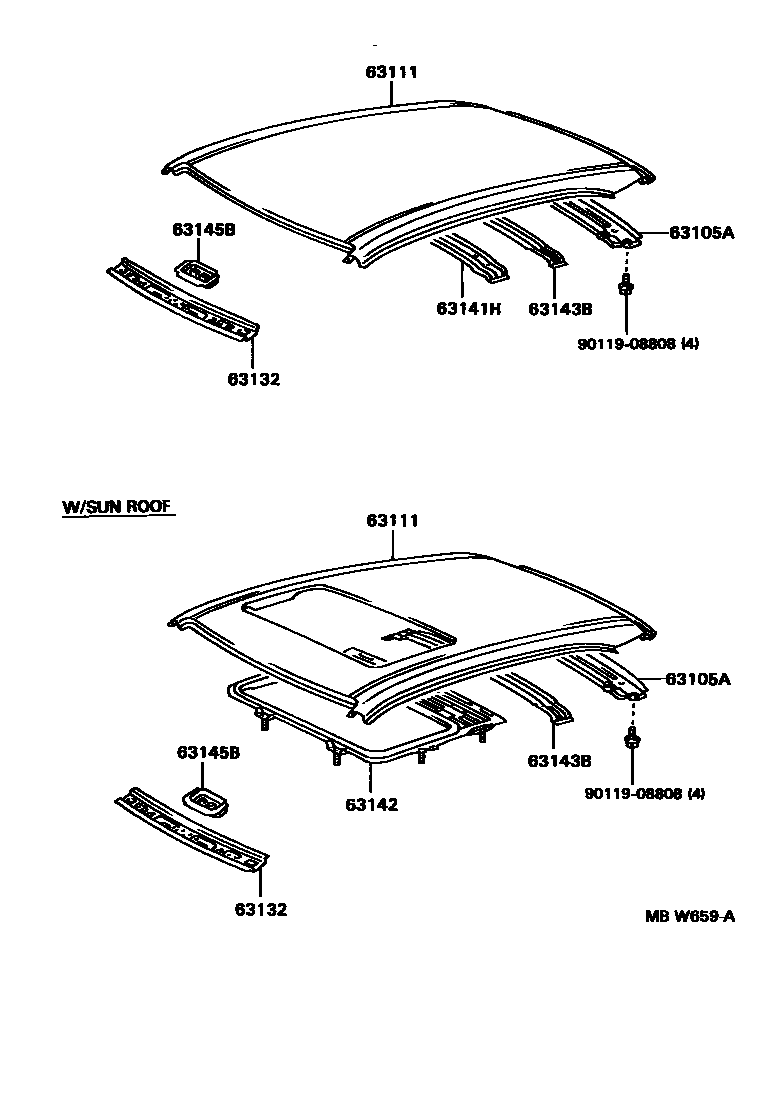

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-12210iAE10#,CE100,EE10#..HB199205

main63105-12220iAE10#,CE100,EE10#..LB199205-199505

63111PANEL, ROOF

main63111-12590iAE10#,CE100,EE10#..HB199205

main63111-12600iAE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)199205

W(*SNR)

main63111-12630iAE10#,CE100,EE101..LB..RHD199205-199505

main63111-12640iAE10#,CE100,EE10#..LB..LHD199205-199505

main63111-12650iAE10#,CE100,EE101..LB..RHD199205-199505

W(*SNR)

main63111-12660iAE10#,CE100,EE10#..LB..LHD199205-199505

W(*SNR)

63132PANEL, WINDSHIELD HEADER, INNER

main63132-12170iAE10#,CE100,EE10#..HB199205

main63132-12180iAE10#,CE100,EE10#..LB199205-199505

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-12160iAE10#,CE100,EE10#..HB199205

main63141-12170iAE10#,CE100,EE10#..LB199205-199505

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-12060iAE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI199205

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-12060iAE10#,CE100,EE10#..HB199205

main63143-12070iAE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)199205

W(*SNR)

63145BREINFORCEMENT, WINDSHIELD HEADER PANEL

main63145-12100iAE10#,CE100,EE10#199205

9011908808

main90119-08808

8 parts on this diagram · 4 diagrams in section
