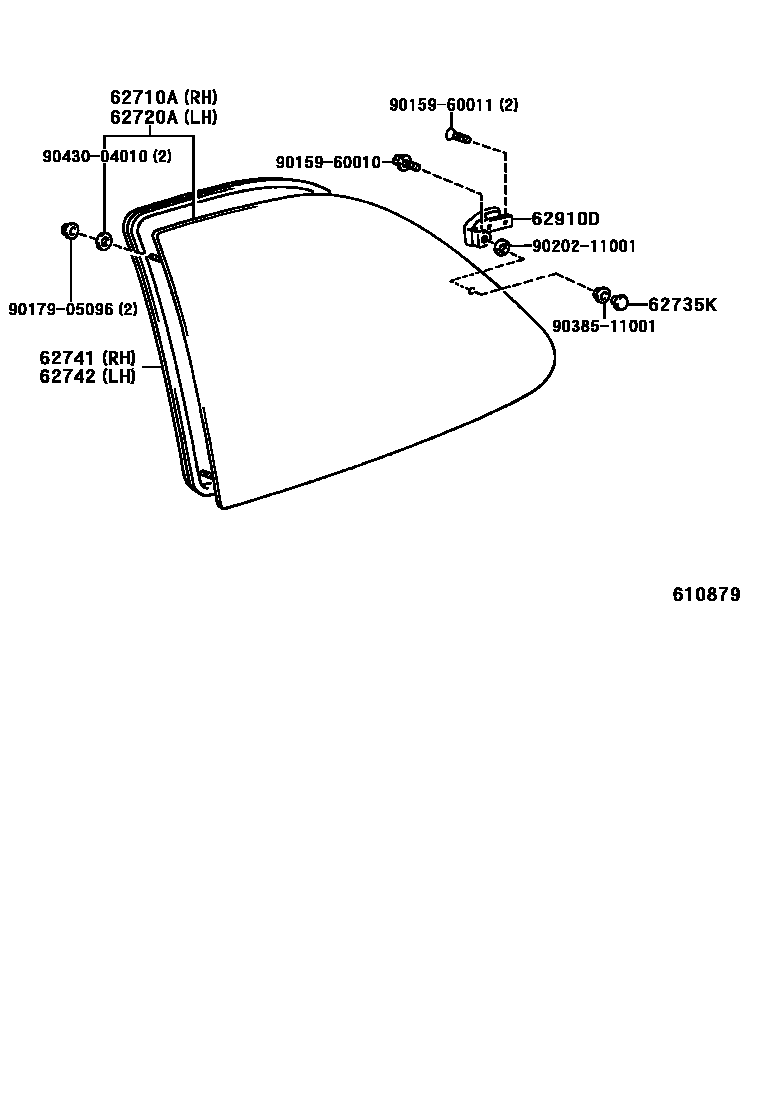

QUARTER WINDOW

0001 1 0002 1 0003 1

62710AWINDOW ASSY, QUARTER, RH

main62710-12740iAE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI)199205-199704

*TT,T=3.1,BLUE

main62710-12750iAE101,CE100,EE10#..3D..(STD,XL,XLI)199205-199704

*TEM,T=3.1,CLEAR

main62710-12770iAE101,CE100,EE10#..HB..5D..(XL,XLI)199206-199704

*TT,T=3.1,WHITE

main62710-12780iAE101,CE100,EE10#..HB..5D199206-199704

*TT,T=3.1,BLUE

main62710-12790iAE101,CE100,EE10#..LB..(XL,XLI)199205-199405

*TEM,T=3.1,CLEAR

main62710-12791iAE101,CE100,EE10#..LB..(XL,XLI)199405-199505

*TEM,T=3.1,CLEAR

main62710-12800iAE10#,CE100,EE10#..LB199205-199405

*TT,T=3.1,BLUE

main62710-12801iAE10#,CE100,EE10#..LB199405-199505

*TT,T=3.1,BLUE

62720AWINDOW ASSY, QUARTER, LH

main62720-12740iAE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI)199205-199704

*TT,T=3.1,BLUE

main62720-12750iAE101,CE100,EE10#..3D..(STD,XL,XLI)199205-199704

*TEM,T=3.1,CLEAR

main62720-12770iAE101,CE100,EE10#..HB..5D..(XL,XLI)199206-199704

*TT,T=3.1,WHITE

main62720-12780iAE101,CE100,EE10#..HB..5D199206-199704

*TT,T=3.1,BLUE

main62720-12790iAE101,CE100,EE10#..LB..(XL,XLI)199205-199405

*TEM,T=3.1,CLEAR

main62720-12791iAE101,CE100,EE10#..LB..(XL,XLI)199405-199505

*TEM,T=3.1,CLEAR

main62720-12800iAE10#,CE100,EE10#..LB199205-199405

*TT,T=3.1,BLUE

main62720-12801iAE10#,CE100,EE10#..LB199405-199505

*TT,T=3.1,BLUE

62735KRETAINER, QUARTER WINDOW HINGE

main62735-10030×2iAE10#,CE100,EE10#..3D199205

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-12160iAE10#,CE100,EE10#..3D199205

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62741-12160iAE10#,CE100,EE10#..3D199205

62910DLOCK ASSY, QUARTER WINDOW

main62910-12100iAE10#,CE100,EE10#..3D199205

RH

main62920-12030iAE10#,CE100,EE10#..3D199205

LH

9015960010

main90159-60010

9015960011

main90159-60011

9017905096

main90179-05096

9020211001

main90202-11001

9038511001

main90385-11001

9043004010

main90430-04010

12 parts on this diagram · 3 diagrams in section
