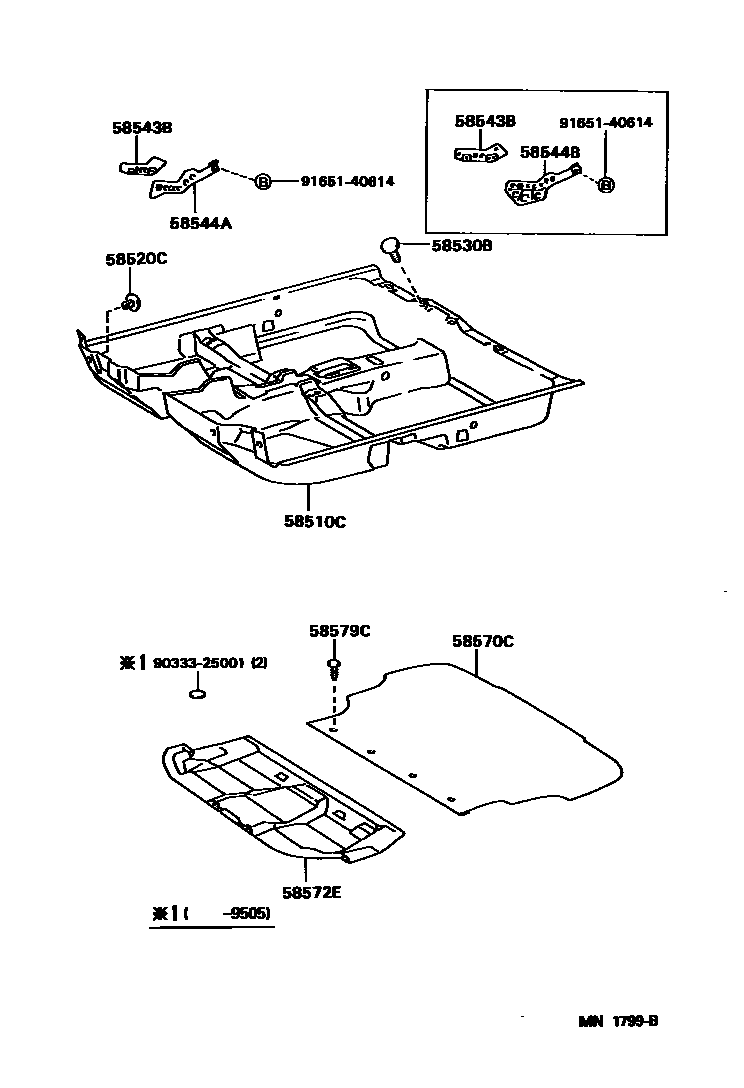

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-13630-B0iCE100,EE101..HB..5D..RHD199206-199312

SHADOW GRAY,TRIM1#

main58510-13630-J0iCE100,EE101..HB..5D..RHD199206-199312

DARK BLUE,TRIM8#

main58510-13631-B0iCE100,EE101..HB..5D..RHD199312-199505

SHADOW GRAY,TRIM1#

main58510-13631-J0iCE100,EE101..HB..5D..RHD199312-199505

DARK BLUE,TRIM8#

main58510-13632-B0iCE100,EE101..5D..RHD199505

SHADOW GRAY,TRIM1#

main58510-13632-J0iCE100,EE101..5D..RHD199505

DARK BLUE,TRIM8#

main58510-13660-B0iAE101,CE100,EE10#..HB..5D..LHD..(3FC,5F)..(XL,XLI)199206-199312

SHADOW GRAY,TRIM1#

main58510-13660-J0iAE101,CE100,EE10#..HB..5D..LHD..(3FC,5F)..(XL,XLI)199206-199312

DARK BLUE,TRIM8#

main58510-13661-B0iAE101,CE100,EE10#..HB..5D..LHD..(3FC,5F)..(XL,XLI)199312-199505

SHADOW GRAY,TRIM1#

main58510-13661-J0iAE101,CE100,EE10#..HB..5D..LHD..(3FC,5F)..(XL,XLI)199312-199505

DARK BLUE,TRIM8#

main58510-13662-B0iAE101,CE100,EE101..5D..LHD..(3FC,5F)..(XL,XLI)199505

SHADOW GRAY,TRIM1#

sub58510-13641

main58510-13662-J0iAE101,CE100,EE101..5D..LHD..(3FC,5F)..(XL,XLI)199505

DARK BLUE,TRIM8#

sub58510-13641

main58510-13670-B0iAE101,CE100,EE10#..HB..5D..LHD..(3FC,5F)..(XL,XLI)199206-199312

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-13670-J0iAE101,CE100,EE10#..HB..5D..LHD..(3FC,5F)..(XL,XLI)199206-199312

COLD SPEC,DARK BLUE,TRIM8#

main58510-13671-B0iAE101,CE100,EE10#..HB..5D..LHD..(3FC,5F)..(XL,XLI)199312-199505

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-13671-J0iAE101,CE100,EE10#..HB..5D..LHD..(3FC,5F)..(XL,XLI)199312-199505

COLD SPEC,DARK BLUE,TRIM8#

main58510-13672-B0iAE101,CE100,EE101..5D..LHD..(3FC,5F)..(XL,XLI)199505

COLD SPEC,SHADOW GRAY,TRIM1#

sub58510-13651

main58510-13672-J0iAE101,CE100,EE101..5D..LHD..(3FC,5F)..(XL,XLI)199505

COLD SPEC,DARK BLUE,TRIM8#

sub58510-13651

main58510-13742-B1iAE101..RHD..GLI199505

SHADOW GRAY,TRIM1#

main58510-13742-J0iAE101..RHD..GLI199505

DARK BLUE,TRIM8#

main58510-1A870-B0iCE100,EE101..3D..RHD..(XL,XLI)199205-199312

SHADOW GRAY,TRIM1#

main58510-1A870-J0iCE100,EE101..3D..RHD..(XL,XLI)199205-199312

DARK BLUE,TRIM8#

main58510-1A871-B0iCE100,EE101..3D..RHD..(XL,XLI)199312-199505

SHADOW GRAY,TRIM1#

main58510-1A871-J0iCE100,EE101..3D..RHD..(XL,XLI)199312-199505

DARK BLUE,TRIM8#

main58510-1A872-B0iCE100,EE101..3D..RHD..(XL,XLI)199505

SHADOW GRAY,TRIM1#

sub58510-1A821

main58510-1A872-J0iCE100,EE101..3D..RHD..(XL,XLI)199505

DARK BLUE,TRIM8#

sub58510-1A821

main58510-1E060-B1iAE10#,EE101..3D..RHD..(GLI,GTI,SI)199205-199312

SHADOW GRAY,TRIM1#

main58510-1E060-J0iEE101..3D..GLI199205-199312

DARK BLUE,TRIM8#

main58510-1E061-B1iAE10#,EE101..3D..RHD..(GLI,GTI,SI)199312-199505

SHADOW GRAY,TRIM1#

main58510-1E061-J0iEE101..3D..GLI199312-199505

DARK BLUE,TRIM8#

main58510-1E062-B1iAE101,EE101..3D..RHD..(GLI,SI)199505

SHADOW GRAY,TRIM1#

main58510-1E062-J0iEE101..GLI199505

DARK BLUE,TRIM8#

main58510-1E070-B0iCE100,EE101..STD199205-199312

SHADOW GRAY,TRIM1#

main58510-1E070-J0iCE100,EE101..STD199205-199312

DARK BLUE,TRIM8#

main58510-1E071-B0iCE100,EE101..STD199312

SHADOW GRAY,TRIM1#

sub58510-1E671

main58510-1E071-J0iCE100,EE101..STD199312

DARK BLUE,TRIM8#

sub58510-1E671

main58510-1E080-B0iCE100,EE101..STD199205-199312

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E080-J0iCE100,EE101..STD199205-199312

COLD SPEC,DARK BLUE,TRIM8#

main58510-1E081-B0iCE100,EE101..STD199312

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E081-J0iCE100,EE101..STD199312

COLD SPEC,DARK BLUE,TRIM8#

main58510-1E150-B0iAE101,CE100,EE10#..3D..LHD..(3FC,5F)..(XL,XLI)199205-199312

SHADOW GRAY,TRIM1#

main58510-1E150-J0iAE101,CE100,EE10#..3D..LHD..(3FC,5F)..(XL,XLI)199205-199312

DARK BLUE,TRIM8#

main58510-1E151-B0iAE101,CE100,EE10#..3D..LHD..(3FC,5F)..(XL,XLI)199312-199505

SHADOW GRAY,TRIM1#

main58510-1E151-J0iAE101,CE100,EE10#..3D..LHD..(3FC,5F)..(XL,XLI)199312-199505

DARK BLUE,TRIM8#

main58510-1E152-B0iAE101,CE100,EE101..3D..LHD..(3FC,5F)..(XL,XLI)199505

SHADOW GRAY,TRIM1#

sub58510-1E671

main58510-1E152-J0iAE101,CE100,EE101..3D..LHD..(3FC,5F)..(XL,XLI)199505

DARK BLUE,TRIM8#

sub58510-1E671

main58510-1E160-B0iAE101,CE100,EE10#..3D..LHD..(3FC,5F)..(XL,XLI)199205-199312

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E160-J0iAE101,CE100,EE10#..3D..LHD..(3FC,5F)..(XL,XLI)199205-199312

COLD SPEC,DARK BLUE,TRIM8#

main58510-1E161-B0iAE101,CE100,EE10#..3D..LHD..(3FC,5F)..(XL,XLI)199312-199505

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E161-J0iAE101,CE100,EE10#..3D..LHD..(3FC,5F)..(XL,XLI)199312-199505

COLD SPEC,DARK BLUE,TRIM8#

main58510-1E162-B0iAE101,CE100,EE101..3D..LHD..(3FC,5F)..(XL,XLI)199505

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E162-J0iAE101,CE100,EE101..3D..LHD..(3FC,5F)..(XL,XLI)199505

COLD SPEC,DARK BLUE,TRIM8#

main58510-1E170-B1iAE10#..3D..LHD..(GTI,SI)199205-199312

SHADOW GRAY,TRIM1#

main58510-1E171-B1iAE10#..3D..LHD..(GTI,SI)199312-199505

SHADOW GRAY,TRIM1#

main58510-1E172-B1iAE101..LHD..SI199505

SHADOW GRAY,TRIM1#

main58510-1E180-B1iAE10#..3D..LHD..(GTI,SI)199205-199312

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E181-B1iAE10#..3D..LHD..(GTI,SI)199312-199505

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E182-B1iAE101..LHD..SI199505

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E250-B1iAE101..HB..GLI199206-199312

SHADOW GRAY,TRIM1#

main58510-1E250-J0iAE101..HB..GLI199206-199312

DARK BLUE,TRIM8#

main58510-1E251-B1iAE101..HB..GLI199312-199505

SHADOW GRAY,TRIM1#

main58510-1E251-J0iAE101..HB..GLI199312-199505

DARK BLUE,TRIM8#

main58510-1E252-B1iAE101..LHD..5F..GLI199505

SHADOW GRAY,TRIM1#

main58510-1E252-J0iAE101..LHD..5F..GLI199505

DARK BLUE,TRIM8#

main58510-1E260-B1iAE101..HB..GLI199206-199312

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E260-J0iAE101..HB..GLI199206-199312

COLD SPEC,DARK BLUE,TRIM8#

main58510-1E261-B1iAE101..HB..GLI199312-199505

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E261-J0iAE101..HB..GLI199312-199505

COLD SPEC,DARK BLUE,TRIM8#

main58510-1E262-B1iAE101..LHD..5F..GLI199505

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E262-J0iAE101..LHD..5F..GLI199505

COLD SPEC,DARK BLUE,TRIM8#

main58510-1E380-B0iCE100..LB..RHD199205-199312

SHADOW GRAY,TRIM1#

main58510-1E380-J0iCE100..LB..RHD199205-199312

DARK BLUE,TRIM8#

main58510-1E381-B0iCE100..LB..RHD199312-199505

SHADOW GRAY,TRIM1#

main58510-1E381-J0iCE100..LB..RHD199312-199505

DARK BLUE,TRIM8#

main58510-1E390-B1iAE10#,EE101..LB..RHD199205-199312

SHADOW GRAY,TRIM1#

main58510-1E390-J0iAE101,EE101..5D..RHD..GLI199205-199312

DARK BLUE,TRIM8#

main58510-1E391-B1iAE10#,EE101..LB..RHD199312-199505

SHADOW GRAY,TRIM1#

main58510-1E391-J0iAE101,EE101..5D..RHD..GLI199312-199505

DARK BLUE,TRIM8#

main58510-1E400-B0iAE101,CE100,EE10#..LB..LHD..(XL,XLI)199205-199312

SHADOW GRAY,TRIM1#

main58510-1E400-J0iAE101,CE100,EE10#..LB..LHD..(XL,XLI)199205-199312

DARK BLUE,TRIM8#

main58510-1E401-B0iAE101,CE100,EE10#..LB..LHD..(XL,XLI)199312-199505

SHADOW GRAY,TRIM1#

main58510-1E401-J0iAE101,CE100,EE10#..LB..LHD..(XL,XLI)199312-199505

DARK BLUE,TRIM8#

main58510-1E410-B0iAE101,CE100,EE10#..LB..LHD..(XL,XLI)199205-199312

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E410-J0iAE101,CE100,EE10#..LB..LHD..(XL,XLI)199205-199312

COLD SPEC,DARK BLUE,TRIM8#

main58510-1E411-B0iAE101,CE100,EE10#..LB..LHD..(XL,XLI)199312-199505

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E411-J0iAE101,CE100,EE10#..LB..LHD..(XL,XLI)199312-199505

COLD SPEC,DARK BLUE,TRIM8#

main58510-1E420-B1iAE10#,EE101..LB..LHD..(GLI,GTI)199205-199312

SHADOW GRAY,TRIM1#

main58510-1E420-J0iAE101,EE101..LB..LHD..GLI199205-199312

DARK BLUE,TRIM8#

main58510-1E421-B1iAE102..5D..LHD199312-199505

SHADOW GRAY,TRIM8#

main58510-1E421-J0iAE101,EE101..LB..LHD..GLI199312-199505

DARK BLUE,TRIM8#

main58510-1E430-B1iAE10#,EE101..LB..LHD..(GLI,GTI)199205-199312

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E430-J0iAE101,EE101..LB..LHD..GLI199205-199312

COLD SPEC,DARK BLUE,TRIM8#

main58510-1E431-B1iAE10#,EE101..LB..LHD..(GLI,GTI)199312-199505

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E431-J0iAE101,EE101..LB..LHD..GLI199312-199505

COLD SPEC,DARK BLUE,TRIM8#

main58510-1E530-B1iAE101..LHD..4FC..GLI199505

SHADOW GRAY,TRIM1#

main58510-1E530-J0iAE101..LHD..4FC..GLI199505

DARK BLUE,TRIM8#

main58510-1E540-B1iAE101..LHD..4FC..GLI199505

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E540-J0iAE101..LHD..4FC..GLI199505

COLD SPEC,DARK BLUE,TRIM8#

main58510-1E680-B0iAE101..3D..4FC199211-199312

SHADOW GRAY,TRIM1#

main58510-1E680-J0iAE101..3D..4FC199211-199312

DARK BLUE,TRIM8#

main58510-1E681-B0iAE101..3D..4FC199312-199505

SHADOW GRAY,TRIM1#

main58510-1E681-J0iAE101..3D..4FC199312-199505

DARK BLUE,TRIM8#

main58510-1E682-B0iAE101..3D..4FC199505

SHADOW GRAY,TRIM1#

main58510-1E682-J0iAE101..3D..4FC199505

DARK BLUE,TRIM8#

main58510-1E690-B0iAE101..3D..4FC199211-199312

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E690-J0iAE101..3D..4FC199211-199312

COLD SPEC,DARK BLUE,TRIM8#

main58510-1E691-B0iAE101..3D..4FC199312-199505

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E691-J0iAE101..3D..4FC199312-199505

COLD SPEC,DARK BLUE,TRIM8#

main58510-1E692-B0iAE101..3D..4FC199505

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E692-J0iAE101..3D..4FC199505

COLD SPEC,DARK BLUE,TRIM8#

main58510-1E700-B0iAE101..5D..4FC..XLI199211-199312

SHADOW GRAY,TRIM1#

main58510-1E700-J0iAE101..5D..4FC..XLI199211-199312

DARK BLUE,TRIM8#

main58510-1E701-B0iAE101..5D..4FC..XLI199312-199505

SHADOW GRAY,TRIM1#

sub58510-13641

main58510-1E701-J0iAE101..5D..4FC..XLI199312-199505

DARK BLUE,TRIM8#

sub58510-13641

main58510-1E702-B0iAE101..5D..4FC..XLI199505

SHADOW GRAY,TRIM1#

main58510-1E702-J0iAE101..5D..4FC..XLI199505

DARK BLUE,TRIM8#

main58510-1E710-B0iAE101..5D..4FC..XLI199211-199312

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E710-J0iAE101..5D..4FC..XLI199211-199312

COLD SPEC,DARK BLUE,TRIM8#

main58510-1E711-B0iAE101..5D..4FC..XLI199312-199505

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E711-J0iAE101..5D..4FC..XLI199312-199505

COLD SPEC,DARK BLUE,TRIM8#

main58510-1E712-B0iAE101..5D..4FC..XLI199505

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E712-J0iAE101..5D..4FC..XLI199505

COLD SPEC,DARK BLUE,TRIM8#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-09068-11×2iAE101,CE100,EE10#..GLI,STD,XL,XLI199205-199209

BLACK,TRIM1#,8#

main90467-09068-22×2iAE10#..GTI,SI199209-199312

BLACK,TRIM1#,8#

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0×4iAE10#..3D..(GTI,SI)199205-199704

BLACK,TRIM1#,8#

main90467-07049-01×4iAE101,CE100,EE10#..LB199205-199208

BLACK,TRIM1#,8#

main90467-07049-C0×4iAE102..5D199211-199505

BLACK,TRIM1#

58543BBRACKET, FLOOR CARPET, RH

main58543-12011iAE10#,CE100,EE10#199205-199312

58544ABRACKET, FLOOR CARPET, LH

main58544-12011iAE10#,CE100,EE101..RHD199205-199312

58544BBRACKET, FLOOR CARPET, LH

main58544-12030iAE10#,CE100,EE10#..LHD199205-199505

main58544-12031iAE101,CE100,EE101..LHD199505

58570CCARPET ASSY, REAR FLOOR

main58570-12270-B0iAE10#,CE100,EE10#..HB199205

SHADOW GRAY,TRIM1#

main58570-12270-J0iAE101,CE100,EE101..GLI,STD,XL,XLI199505

DARK BLUE,TRIM8#

main58571-12090-B0iAE10#,CE100,EE10#..LB199205-199310

SHADOW GRAY,TRIM1#

main58571-12090-B1iAE10#,CE100,EE10#..LB199310-199505

SHADOW GRAY,TRIM1#

main58571-12090-J0iAE101,CE100,EE10#..LB199205-199310

DARK BLUE,TRIM8#

main58571-12090-J1iAE101,CE100,EE10#..LB199310-199505

DARK BLUE,TRIM8#

58572EMAT, REAR FLOOR, FRONT

main58572-12050iAE10#,CE100,EE10#..LB199205-199505

main58572-13010iAE10#,CE100,EE10#..HB199205-199505

main58572-13020iAE101,CE100,EE101199505

58579CCLIP, REAR FLOOR CARPET SET

main90467-09156-B0×4iAE10#,CE100,EE10#..HB199205-199704

SHADOW GRAY,TRIM1#

main90467-09156-J0×4iAE101,CE100,EE10#..HB..(GLI,STD,XL,XLI)199205-199704

DARK BLUE,TRIM8#

main90467-09160-B0×4iAE10#,CE100,EE10#..LB199205-199505

SHADOW GRAY,TRIM1#

main90467-09160-J0×4iAE101,CE100,EE10#..LB199205-199505

DARK BLUR,TRIM8#

9033325001

main90333-25001

9165140614

main91651-40614

11 parts on this diagram · 1 diagram in section
