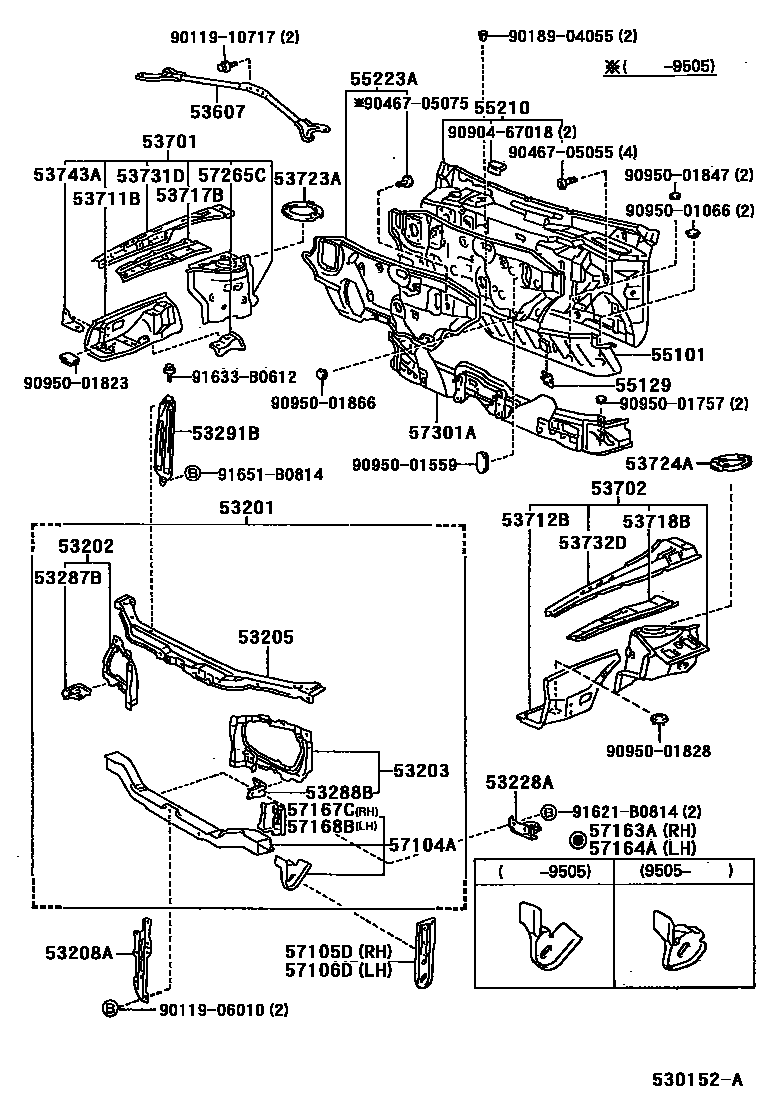

FRONT FENDER APRON & DASH PANEL
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
sub53205-12110
53208ASUPPORT SUB-ASSY, HOOD LOCK
53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53291BPLATE, RADIATOR COVER
NEW ZEALAND SPEC OR W(AIR CONDITIONER) OR ENGLAND SPEC
53607BRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, RH
sub53607-12040
53701APRON SUB-ASSY, FRONT FENDER, RH
W(*66)
W(*66)
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53717BGUSSET, FENDER APRON, RH
53718BGUSSET, FENDER APRON, LH
53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH
W(ROUGH ROAD PACKAGE)
53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH
W(ROUGH ROAD PACKAGE)
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH
55129COVER, DASH PANEL HOLE
55210INSULATOR ASSY, DASH PANEL
57104AMEMBER SUB-ASSY, FRONT CROSS
PLANT A31,32,B11,K21
57105DPLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57106DPLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH
57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH
57167CGUSSET, FRONT CROSSMEMBER SIDE, RH
57168BGUSSET, FRONT CROSSMEMBER SIDE, LH
57265CBRACKET, ENGINE MOUNTING, RH
9011906010
main90119-06010
9011910717
main90119-10717
9018904055
main90189-04055
9046705055
main90467-05055
9046705075
main90467-05075
9090467018
main90904-67018
9095001066
main90950-01066
9095001559
main90950-01559
9095001757
main90950-01757
9095001823
main90950-01823
9095001828
main90950-01828
9095001847
main90950-01847
9095001866
main90950-01866
91621B0814
main91621-B0814
91633B0612
main91633-B0612
91651B0814
main91651-B0814
50 parts on this diagram · 1 diagram in section
