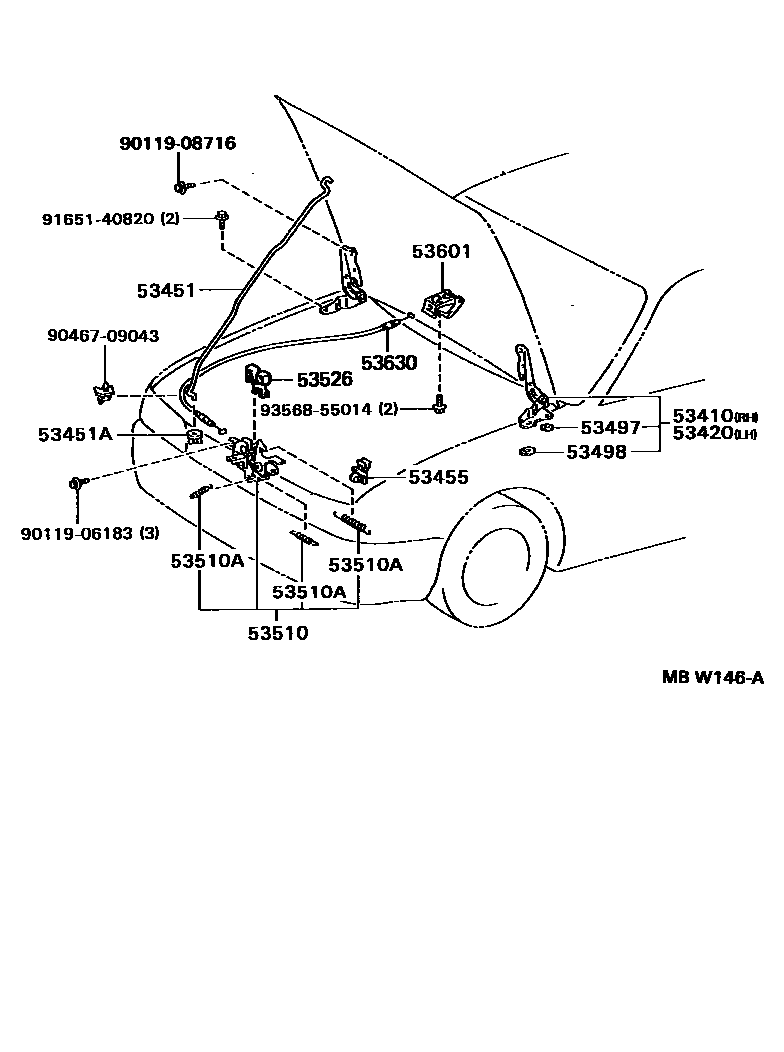

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
PAD T=1.0
53420HINGE ASSY, HOOD, LH
PAD T=1.0
53451ROD, HOOD SUPPORT
53451AGROMMET(FOR HOOD SUPPORT ROD)
53455CLAMP, HOOD SUPPORT ROD
53497PAD, HOOD HINGE, NO.1
T=1.0
T=0.5,PAD T=0.5
53498PAD, HOOD HINGE, NO.2
PAD T=1.0
PAD T=0.5
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
WD=0.9,CW=21,WD=0.9,CW=21
WD=0.9,CW=23
WD=1.4,CW=7.25,WD=1.4,CW=7.25
WD=1.4,CW=7.25
WD=2.0,CW=16.0
WD=2.0,CW=17,WD=2.0,CW=17
WD=2.0,CW=17
53526PROTECTOR, HOOD LOCK RELEASE LEVER, NO.2
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
9011906183
main90119-06183
9011908716
main90119-08716
9046709043
main90467-09043
9165140820
main91651-40820
9356855014
main93568-55014
17 parts on this diagram · 2 diagrams in section
