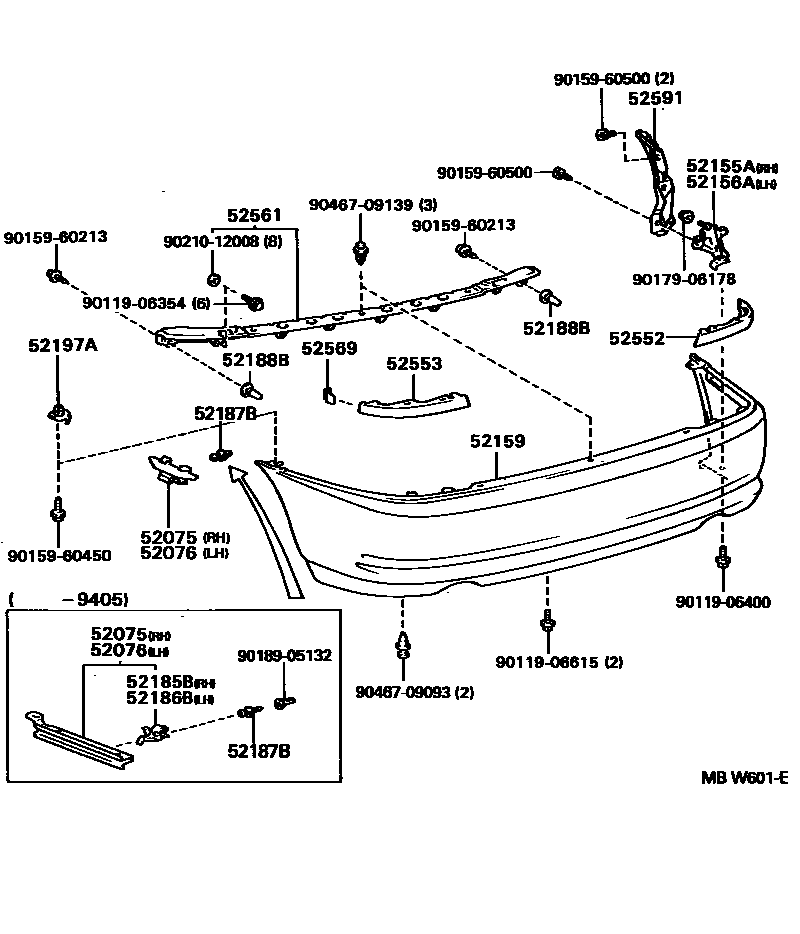

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52075RETAINER SUB-ASSY, REAR BUMPER SIDE, RH

main52075-12050iAE10#,CE100,EE10#..HB¥1,650199205-199405

sub52185-12220¥760

main52075-12060iAE10#,CE100,EE10#..LB¥2,720199205-199505

main52185-12220iAE10#,CE100,EE10#..HB¥760199405

52076RETAINER SUB-ASSY, REAR BUMPER SIDE, LH

main52076-12050iAE10#,CE100,EE10#..HB¥1,650199205-199405

sub52185-12220¥760

main52076-12060iAE10#,CE100,EE10#..LB¥2,720199205-199505

main52185-12220iAE10#,CE100,EE10#..HB¥760199405

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-12220iAE10#,CE100,EE10#..LB¥600199205-199505

main52155-12240iAE10#,CE100,EE10#..HB¥590199205

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-12210iAE10#,CE100,EE10#..LB¥600199205-199505

main52156-12230iAE10#,CE100,EE10#..HB¥590199205

52159COVER, REAR BUMPER

main52159-1A580iAE10#,CE100,EE10#..HB¥33,100199205-199505

main52159-1A610iAE10#,CE100,EE10#..LB199205-199505

main52159-1A690iAE101,CE100,EE101¥32,600199505

sub52159-1A934

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-12160iAE10#,CE100,EE10#..HB¥530199205-199405

main52185-12170iAE10#,CE100,EE10#..LB¥470199205-199505

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-12160iAE10#,CE100,EE10#..HB¥530199205-199405

main52185-12170iAE10#,CE100,EE10#..LB¥470199205-199505

52187BGUIDE, REAR BUMPER LOCATION

main52187-12140iAE10#,CE100,EE10#..HB¥460199205-199405

main52187-12160iAE10#,CE100,EE10#..HB¥200199405

52188BSPACER, REAR BUMPER MOUNTING

main52188-12150iAE10#,CE100,EE10#..HB¥90199205

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-12070iAE10#,CE100,EE10#¥300199205

52552FILLER, REAR BUMPER, RH

main52552-12050iAE10#,CE100,EE10#..HB¥1,260199205

main52552-12060iAE10#,CE100,EE10#..LB¥1,340199205-199505

52553FILLER, REAR BUMPER, LH

main52553-12050iAE10#,CE100,EE10#..HB¥1,260199205

main52553-12060iAE10#,CE100,EE10#..LB¥1,340199205-199505

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-12170iAE10#,CE100,EE10#..HB¥3,930199205

main52561-12190iAE10#,CE100,EE10#..LB¥3,670199205-199505

52569PAD, REAR BUMPER FILLER

main52569-12020iAE10#,CE100,EE10#..HB¥210199205

main52569-12030iAE10#,CE100,EE10#..LB¥210199205-199505

52591SEAL, REAR BUMPER SIDE, RH

main52591-12080iAE10#,CE100,EE10#¥1,410199205

9011906354

main90119-06354¥120

9011906400

main90119-06400¥120

9011906615

main90119-06615¥160

9015960213

main90159-60213¥80

9015960450

main90159-60450¥120

9015960500

main90159-60500¥70

9017906178

main90179-06178¥100

9018905132

main90189-05132¥130

9021012008

main90210-12008¥100

9046709093

main90467-09093¥190

9046709139

main90467-09139¥240

26 parts on this diagram · 2 diagrams in section
