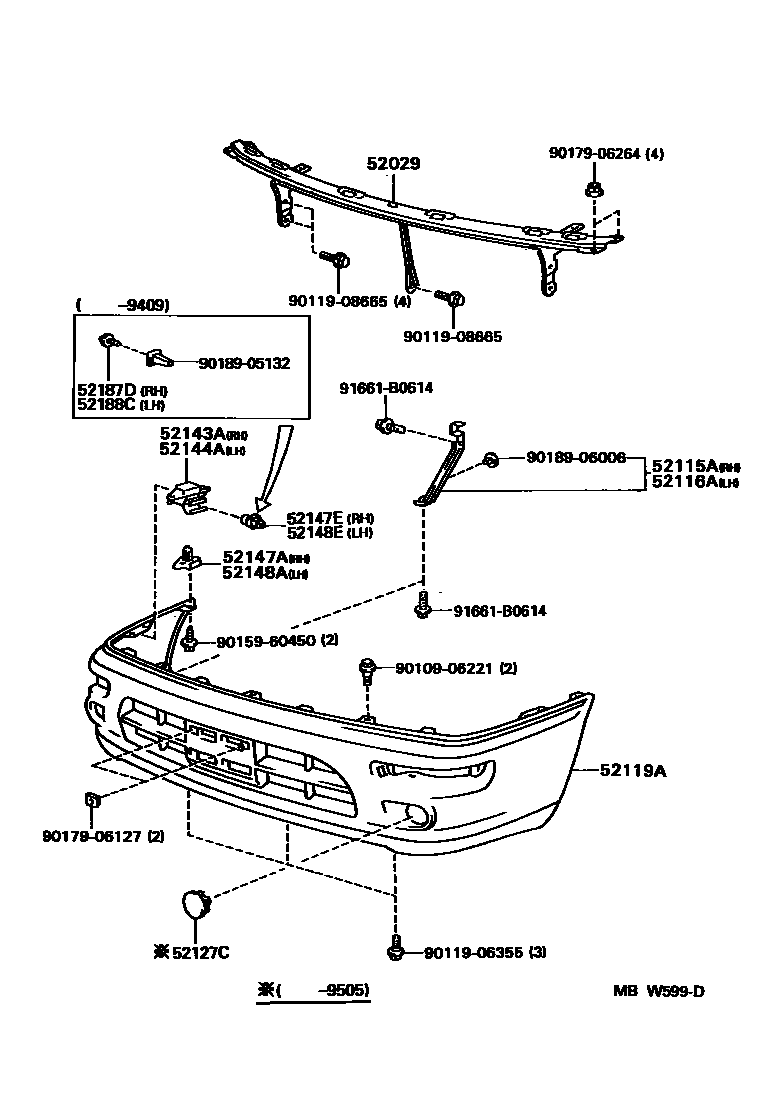

FRONT BUMPER & BUMPER STAY
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52127CCOVER, FRONT BUMPER HOLE
52147ABRACKET, FRONT BUMPER STAY, RH
52147EBRACKET, FRONT BUMPER MOUNTING, RH
52148ABRACKET, FRONT BUMPER STAY, LH
52148EBRACKET, FRONT BUMPER MOUNTING, LH
52187DGUIDE, FRONT BUMPER LOCATION, RH
52188CGUIDE, FRONT BUMPER LOCATION, LH
9010906221
main90109-06221
9011906355
main90119-06355
9011908665
main90119-08665
9015960450
main90159-60450
9017906127
main90179-06127
9017906264
main90179-06264
9018905132
main90189-05132
9018906006
main90189-06006
91661B0614
main91661-B0614
22 parts on this diagram · 2 diagrams in section
