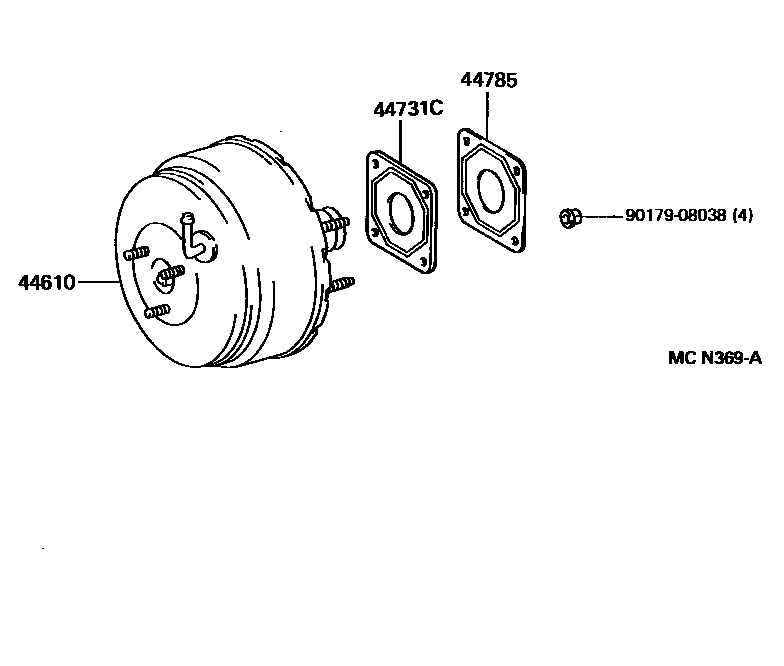

BRAKE BOOSTER & VACUUM TUBE

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1

44610BOOSTER ASSY, BRAKE

main44610-1A450iEE100¥45,100199205-199505

main44610-1A520iAE10#,CE100,EE101..RHD¥45,100199205-199305

main44610-1A530iAE10#,CE100,EE101..LHD¥45,100199205-199407

main44610-1A570iAE10#,CE100,EE101..RHD¥45,100199205-199305

W(ABS)

main44610-1A580iAE10#,CE100,EE101..LHD¥45,100199205-199505

W(ABS)

main44610-1A880iAE10#,CE100,EE101..RHD¥45,100199305-199505

main44610-1E010iAE10#,CE100,EE101..RHD¥45,100199305-199505

W(ABS)

main44610-1E170iAE10#,CE100,EE101..LHD¥45,100199407-199505

main44610-1E260iAE101,EE101..RHD¥46,700199505

main44610-1E270iCE100..RHD¥45,300199505

main44610-1E280iAE101,EE101..RHD¥46,700199505

W(ABS)

main44610-1E290iCE100..RHD¥45,300199505

W(ABS)

main44610-1E310iAE101,CE100,EE101..LHD¥45,300199505

main44610-1E320iAE101,CE100,EE101..LHD¥45,300199505

W(ABS)

44731CBRACKET, BRAKE BOOSTER

main44731-12050iAE10#,CE100,EE101..RHD¥440199305-199505

44785GASKET, BRAKE BOOSTER

main44785-12010iAE10#,CE100,EE10#¥260199205-199305

sub44785-20020¥320

main44785-20020iAE10#,CE100,EE10#¥320199305

9017908038

main90179-08038¥130

4 parts on this diagram · 6 diagrams in section
