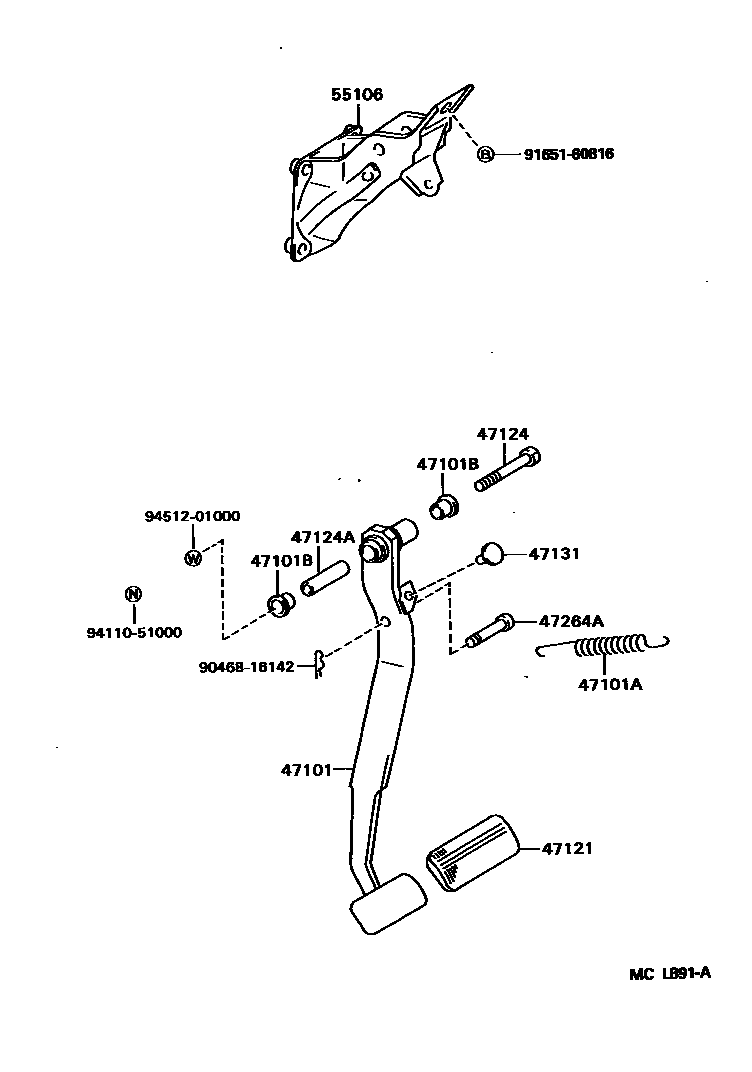

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-12470iAE10#,CE100,EE10#..LHD..5F199205

main47101-12480iAE101,EE101..RHD..ATM199205

main47101-12490iAE10#,CE100,EE101..RHD..5F199205

main47101-12500iAE101,EE101..LHD..ATM199205

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14037iAE10#,CE100,EE10#199205

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iAE10#,CE100,EE10#199205

47121PAD, BRAKE PEDAL

main31321-12040iAE10#,CE100,EE10#..5F199205

main47121-12020iAE101,EE101..ATM199205

47124SHAFT, BRAKE PEDAL

main90101-10015iAE10#,CE100,EE10#199205

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iAE10#,CE100,EE10#199205

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iAE10#,CE100,EE10#199205

47264APIN(FOR PUSH ROD)

main47148-12020iAE101,CE100,EE101199505

WAVE WASHER 1 PIECES

main47148-12020iAE101,CE100,EE10#199205-199210

main47148-12040iAE10#,CE100,EE10#199212

WAVE WASHER 3 PIECES

main47148-12040iAE10#,CE100,EE10#199210-199212

main47148-12050iAE10#,CE100,EE10#199212-199505

WAVE WASHER 2 PIECES

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-12600iAE10#,CE100,EE101..RHD199205

main55106-12610iAE10#,CE100,EE10#..LHD199205

9046816142

main90468-16142

9165160816

main91651-60816

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 2 diagrams in section
