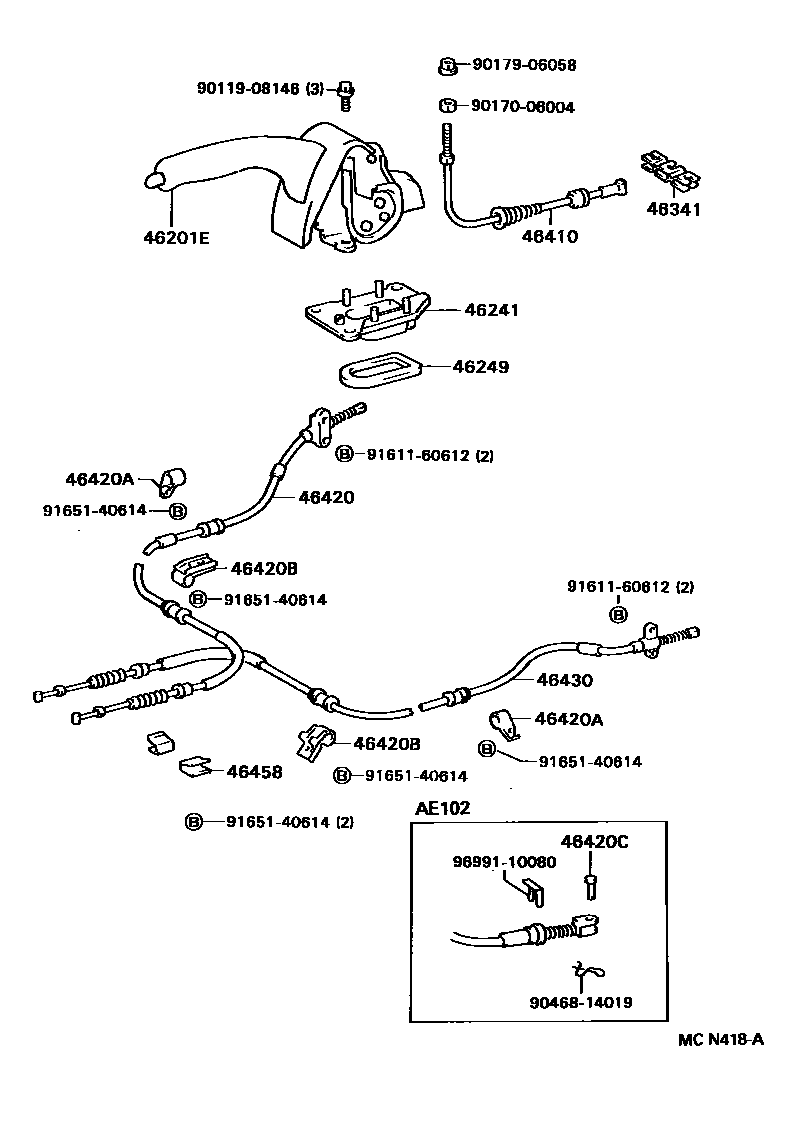

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02020-B0iAE101,CE100,EE101..LHD..(SI,STD,XL,XLI)199306-199505

W(*HC),SHADOW GRAY,TRIM1#,(L)

sub46201-02021

sub46201-12160

main46201-02020-B0iAE101,EE101..GLI199306-199505

SHADOW GRAY,TRIM1#,(L)

sub46201-02021

sub46201-12160

main46201-02020-J0iAE101,CE100,EE101..LHD..(STD,XL,XLI)199306-199505

W(*HC),DARK,TRIM8#

sub46201-02021

sub46201-12160

main46201-02020-J0iAE101,EE101..GLI199306-199505

DARK,TRIM8#

sub46201-02021

sub46201-12160

main46201-12150-B0iAE101,CE100,EE10#..SI,STD,XL,XLI199205-199505

SHADOW GRAY,TRIM1#

sub46201-12180

main46201-12150-J0iAE101,CE100,EE10#..STD,XL,XLI199205-199505

DARK BLUE,TRIM8#

sub46201-12180

main46201-12160-B0iAE101,EE101..GLI199205-199505

W(*HC),SHADOW GRAY,TRIM1#,(J)

sub46201-12190

main46201-12160-B0iAE101,EE101..GLI199205-199505

SHADOW GRAY,TRIM1#,(J)

sub46201-12190

main46201-12160-J0iAE101,EE101..GLI199205-199505

DARK BLUE,TRIM8#

sub46201-12190

main46201-12160-J0iAE101,EE101..GLI199205-199505

W(*HC),DARK BLUE,TRIM8#

sub46201-12190

main46201-12170-B0iAE102199211-199505

SHADOW GRAY,TRIM1#

sub46201-12200

main46201-12180-B0iAE101,CE100,EE101..SI,STD,XL,XLI199505-199704

SHADOW GRAY,TRIM1#

sub46201-12180

main46201-12180-J0iAE101,CE100,EE101..STD,XL,XLI199505-199704

DARK BLUE,TRIM8#

sub46201-12180

main46201-12190-B0iAE101..GLI,XLI;EE101..GLI,STD;EE101..LHD..XLI;AE101,CE100..LHD..(SI,STD,XL)199505-199704

W(*HC),SHADOW GRAY,TRIM1#

sub46201-12190

main46201-12190-B0iAE101,EE101..GLI199505-199608

SHADOW GRAY,TRIM1#

sub46201-12190

main46201-12190-J0iAE101,EE101..GLI199505-199608

DARK BLUE,TRIM8#

sub46201-12190

main46201-12190-J0iCE100..LHD;AE101..GLI,XLI;EE101..GLI,STD;EE101..LHD..XLI199505-199704

W(*HC),DARK BLUE,TRIM8#

sub46201-12190

46241BOOT, PARKING BRAKE LEVER

main46241-02010iAE101..GLI,XLI;EE101..GLI,STD;EE101..LHD..XLI;AE101,CE100..LHD..(SI,STD,XL)199306-199505

TYPE A:REFER TO ILLUSTRATION,(L)

main46241-12090iAE102,EE100;AE101,CE100,EE101..RHD..(SI,XL,XLI)199306-199505

TYPE A:REFER TO ILLUSTRATION,(J)

main46241-12090iAE10#,CE100,EE10#199205-199306

main46241-12110iAE101,CE100,EE101199505

46249SHIELD, PARKING BRAKE HOLE

main46249-02010iAE101..GLI,XLI;EE101..GLI,STD;EE101..LHD..XLI;AE101,CE100..LHD..(SI,STD,XL)199306-199505

(L)

main46249-12010iAE101..GLI,XLI;EE101..GLI,STD;EE101..LHD..XLI;AE101,CE100..LHD..(SI,STD,XL)199306-199505

(J)

main46249-12010iAE10#,CE100,EE10#199205-199306

46341EQUALIZER, PARKING BRAKE

main46341-12020iAE10#,CE100,EE10#199205

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12210iAE10#,CE100,EE10#199205-199505

main46410-12250iAE101,CE100,EE101199505

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02030iAE101,CE100,EE10#199306

(L)

main46420-12390iAE102199211-199505

main46420-12400iAE101,CE100,EE10#199205

(J)

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01746iAE10#,CE100,EE10#199205

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01744iAE10#,CE100,EE10#199205

LH

main90949-01747iAE10#,CE100,EE10#199205

RH

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08040iAE102199211-199505

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02030iAE101,CE100,EE10#199306

(L)

main46430-12290iAE102199211-199505

main46430-12300iAE101,CE100,EE10#199205

(J)

46458RETAINER, CABLE

main46458-50010iAE10#,CE100,EE10#199205

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9046814019

main90468-14019

9161160612

main91611-60612

9165140614

main91651-40614

9699110080

main96991-10080

18 parts on this diagram · 1 diagram in section
