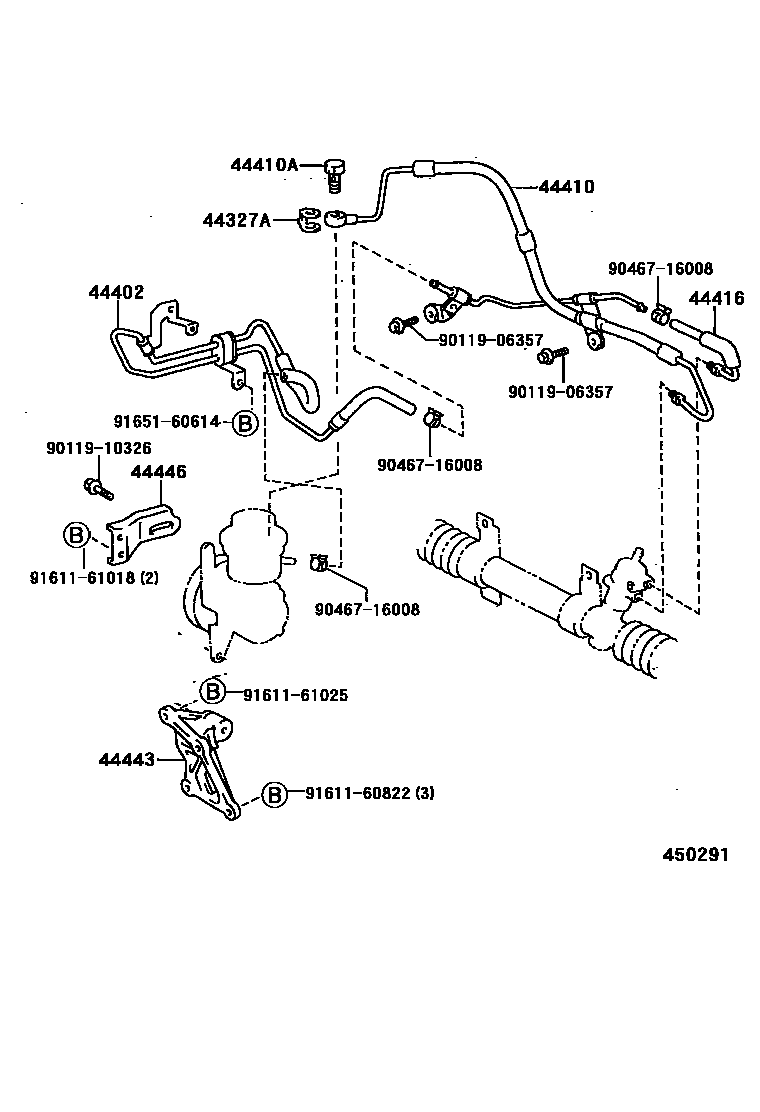

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAE10#,CE100199205

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-12130iAE10#..RHD199205-199704

main44402-12150iAE10#..LHD199205-199704

44410TUBE ASSY, PRESSURE FEED

main44040-12120iEE10#..LHD199205-199305

sub44040-12121

main44040-12121iEE10#..LHD199305

main44040-12130iCE100..LHD199205-199305

sub44040-12131

main44040-12131iCE100..LHD199305-199306

sub44040-12132

main44040-12132iCE100..LHD199306-199512

sub44040-12133

main44040-12133iCE100..LHD199512

main44040-12170iCE100..RHD199205-199301

sub44040-12171

main44040-12171iCE100..RHD199301-199505

sub44040-12172

main44040-12172iCE100..RHD199505-199512

sub44040-12173

main44040-12173iCE100..RHD199512

main44040-12180iEE101..RHD199205-199305

sub44040-12181

main44040-12181iEE101..RHD199305-199507

sub44040-12182

main44040-12182iEE101..RHD199507

main44410-12391iAE10#..RHD199407

main44410-12492iAE10#..LHD199205

main44410-12521iAE10#..RHD199205-199407

sub44410-12391

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16012iAE10#,CE100199205

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44406-12160iAE10#,CE100,EE10#..LHD199205

main44416-12240iAE10#,CE100,EE101..RHD199205

44443BRACKET, PUMP

main44443-10030iEE101199205

main44443-12070iEE100199205-199505

main44443-12100iAE10#199205

44446STRUT, ADJUSTING

main44446-10050iEE101199205

main44446-12050iEE100199205-199505

main44446-12060iAE101199205

main44446-12090iAE102199211-199505

9011906357

main90119-06357

9011910326

main90119-10326

9046716008

main90467-16008

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

9165160614

main91651-60614

14 parts on this diagram · 7 diagrams in section
