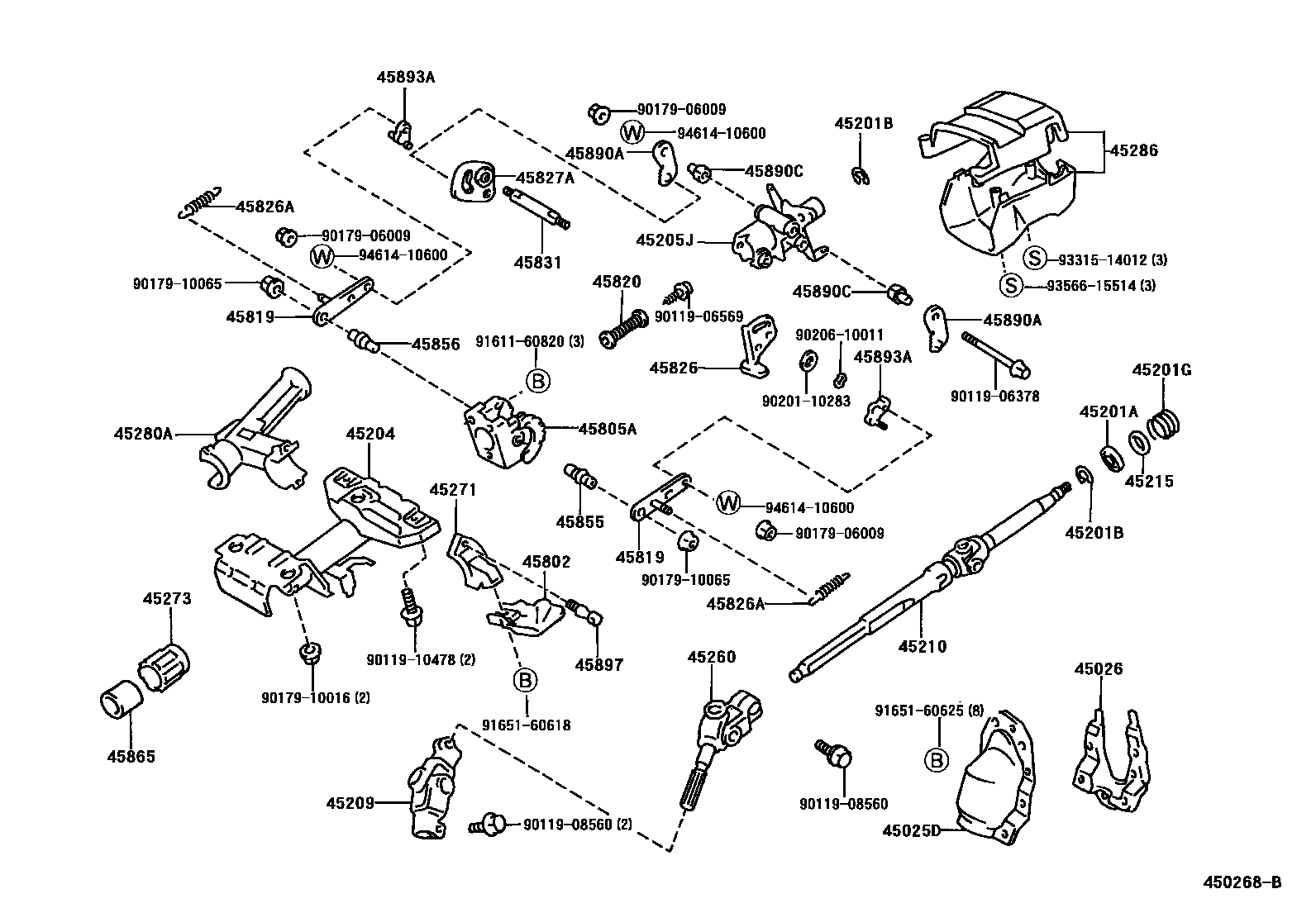

STEERING COLUMN & SHAFT

0001 1W(TILT STEERING) 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12170iEE101..3D..RHD;AE101,EE101..LB..RHD;EE101..5D..RHD..5F..XLI;AE101,CE100..RHD..(SI,XL)199205

main45025-12180iEE101..3D..RHD;AE101,EE101..LB..RHD;EE101..5D..RHD..5F..XLI;AE101,CE100..RHD..(SI,XL)199205

W(POWER STEERING)

main45025-12190iAE101,CE100,EE10#..LHD199205

main45025-12200iAE101,CE100,EE10#..LHD199205-199611

W(POWER STEERING)

main45025-12201iAE101,CE100,EE101..LHD199611

W(POWER STEERING)

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-12010iEE101..3D..RHD;AE101,EE101..LB..RHD;EE101..5D..RHD..5F..XLI;AE101,CE100..RHD..(SI,XL)199205

main45026-12020iEE101..3D..RHD;AE101,EE101..LB..RHD;EE101..5D..RHD..5F..XLI;AE101,CE100..RHD..(SI,XL)199205

W(POWER STEERING)

main45026-12030iAE101,CE100,EE10#..LHD199205

main45026-12040iAE102..LHD199211-199505

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18005iAE10#,CE100,EE10#199205-199704

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iAE10#,CE100,EE10#199205-199304

T=1.20

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iAE10#,CE100,EE10#199205-199704

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-12092iAE10#,CE100,EE10#199205-199505

main45204-12093iEE101..3D;AE101..SI,XLI;EE101..5D..5F;AE101..LHD..GLI;EE101..5D..LHD..3FC199505-199704

W(POWER STEERING)

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-12330iAE10#,CE100,EE101..RHD199205-199704

main45205-12340iAE101..LB..LHD;AE102,CE100,EE10#..LHD;AE101..HB..LHD..5F..GLI;AE101..HB..LHD..(SI,XLI)199205-199704

main45205-12370iAE101,CE100,EE101..LHD199505-199704

W(*80)

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12060iEE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;AE101..HB..LHD..GLI;EE101..5D..LHD..3FC;AE101,CE100,EE100..SI,STD,XL,XLI199205-199704

main45209-12080iCE100,EE101..STD199205-199704

W(TILT STEERING & POWER STEERING)

45210SHAFT ASSY, STEERING MAIN

main45210-12400iAE102;AE101..HB..RHD..GLI;EE101..5D..RHD..3FC..XLI199211-199704

sub45210-12560

main45210-12420iEE101..3D..RHD;EE101..5D..RHD..5F;AE101,CE100..RHD..(SI,XL)199505-199704

main45210-12440iAE101,CE100,EE101..RHD199205-199505

main45210-12460iAE101,CE100,EE10#..LHD199205-199505

main45210-12490iAE101,CE100,EE101..LHD199505-199704

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iAE10#,CE100,EE10#199205-199704

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12260iEE101..5D..RHD..3FC;AE101,CE100..RHD..(GLI,XL)199505-199704

W(TILT STEERING & POWER STEERING)

main45260-12370iCE100..LHD199505-199704

W(TILT STEERING & POWER STEERING)

main45260-12380iAE101,CE100,EE101..RHD199205-199505

W(TILT STEERING)

main45260-12390iAE101,CE100,EE101..RHD199205-199505

W(TILT STEERING & POWER STEERING)

main45260-12400iAE101,CE100,EE10#..LHD..(GLI,SI,XL,XLI)199205-199505

W(TILT STEERING)

main45260-12410iCE100,EE101..STD199205-199505

W(TILT STEERING & POWER STEERING)

45271CLAMP, STEERING COLUMN, UPPER

main45271-12070iEE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;AE101..HB..LHD..GLI;EE101..5D..LHD..3FC;AE101,CE100,EE100..SI,STD,XL,XLI199205-199704

main45271-12080iCE100,EE101..STD199205-199704

W(TILT STEERING)

45273BUSH, STEERING MAIN SHAFT

main45273-16010iAE101,CE100,EE10#199205-199308

main45273-16020iEE101..3D;EE101..5D..5F;AE101..LHD..GLI;EE101..5D..LHD..3FC;AE101,CE100..SI,STD,XL,XLI199512-199704

main45273-20030iEE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;AE101..HB..LHD..GLI;EE101..5D..LHD..3FC;AE101,CE100,EE100..SI,STD,XL,XLI199308-199512

main45273-20040iAE102;AE101..HB..RHD..GLI;EE101..5D..RHD..3FC..XLI199308-199512

W(TILT STEERING)

main45273-20050iEE101..3D;EE101..5D..5F;AE101..LHD..GLI;EE101..5D..LHD..3FC;AE101,CE100..SI,STD,XL,XLI199512-199704

W(TILT STEERING & POWER STEERING)

main45273-22020iCE100,EE101..STD199205-199308

W(TILT STEERING)

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12240iAE101,CE100,EE101..RHD199205-199501

main45280-12241iEE101..3D..RHD;AE101,EE101..LB..RHD;EE101..5D..RHD..5F..XLI;AE101,CE100..RHD..(SI,XL)199501-199704

sub45280-12220

main45280-12250iAE102..RHD;AE101..HB..RHD..GLI;EE101..5D..RHD..3FC..XLI199211-199704

sub45280-12230

main45280-12280iAE101,CE100,EE10#..LHD199205-199704

sub45280-12300

main45280-12290iCE100,EE101..STD199205-199704

W(TILT STEERING)

main45280-12350iEE101..5D..RHD..5F;AE101,EE101..3D..RHD199505-199704

W(IMMOBILIZER & TILT STEERING & POWER STEERING)

sub45280-12230

main45280-12360iAE101,EE101..LHD199505-199605

W(*80)

sub45280-12300

main45280-12370iAE101,EE101..LHD199505-199704

W(TILT STEERING & IMMOBILIZER)

45286COVER, STEERING COLUMN

main45286-12946-P0iCE100..RHD;EE101..3D..RHD;EE101..5D..RHD..5F199505-199704

SHADOW GRAY,TRIM1#

main45286-12946-W3iCE100..RHD;EE101..3D..RHD;AE101,EE101..LB..RHD;EE101..5D..RHD..5F..XLI199205-199704

DARK BLUE,TRIM8#

main45286-12947-P0iEE101..3D..RHD;AE101,EE101..LB..RHD;EE101..5D..RHD..5F..XLI;AE101,CE100..RHD..(SI,XL)199205-199704

W(TILT STEERING),SHADOW GRAY,TRIM1#

main45286-12947-W3iCE100..RHD;EE101..3D..RHD;AE101,EE101..LB..RHD;EE101..5D..RHD..5F..XLI199205-199704

W(TILT STEERING),DARK BLUE,TRIM8#

main45286-12948-P0iAE101,CE100,EE10#..LHD199205-199704

SHADOW GRAY,TRIM1#

main45286-12948-W3iAE101,CE100,EE10#..LHD..(GLI,STD,XL,XLI)199205-199704

DARK BLUE,TRIM8#

main45286-12949-P0iCE100,EE101..STD199205-199704

W(TILT STEERING),SHADOW GRAY,TRIM1#

main45286-12949-W3iCE100,EE101..STD199205-199704

W(TILT STEERING),DARK BLUE,TRIM8#

main45286-12957-B0iAE101,CE100,EE101..LHD199505-199704

W(*80),SHADOW GRAY,TRIM1#

main45286-12957-J0iAE101,CE100,EE101..LHD..(GLI,STD,XL,XLI)199505-199704

W(*80),DARK BLUE,TRIM8#

main45286-12958-B0iAE101,CE100,EE101..LHD199505-199704

W(*80 & TILT STEERING),SHADOW GRAY,TRIM1#

main45286-12958-J0iAE101,CE100,EE101..LHD..(GLI,STD,XL,XLI)199505-199704

W(*80 & TILT STEERING),DARK BLUE,TRIM8#

45802PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1

main45874-12060iAE10#,CE100,EE10#199205-199505

main45874-12070iAE101,CE100,EE101199505-199704

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-12010iAE10#,CE100,EE10#199205-199704

45819RETAINER, TILT LEVER

main45819-12020×2iAE10#,CE100,EE10#199205-199704

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-12020iAE10#,CE100,EE10#199205-199704

45826LEVER, STEERING TILT

main45826-12021iAE101..LB..4FC;AE101..4FC..XLI;AE101..HB..RHD..4FC;AE10#,CE100,EE10#..3FC,5F199205-199704

main45826-12050iAE101,CE100,EE101..LHD199505-199704

W(*80 & TILT STEERING & POWER STEERING)

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90507-12029×2iAE10#,CE100,EE10#199205-199704

45827ALEVER, STEERING TILT SUB

main45827-12020iAE10#,CE100,EE10#199205-199704

45831BOLT, TILT LEVER LOCK, NO.1

main45831-12010iAE10#,CE100,EE10#199205-199704

45855BOLT, TILT STEERING, NO.1

main45855-12030iAE10#,CE100,EE10#199205-199704

OD=9.989-9.998

main45855-12040iAE10#,CE100,EE10#199205-199704

OD=9.998-10.007

45856BOLT, TILT STEERING, NO.2

main45856-12030iAE10#,CE100,EE10#199205-199704

OD=9.989-9.998

main45856-12040iAE10#,CE100,EE10#199205-199704

OD=9.998-10.007

45865COLLAR, STEERING MAIN SHAFT

main45865-12060iAE10#,CE100,EE10#199205-199704

45890APAWL ASSY, TILT STEERING

main45890-12021iAE10#,CE100,EE10#199205-199704

LH

main45890-12031iAE10#,CE100,EE10#199205-199704

RH

45890CCOLLAR(FOR TILT STEERING PAWL)

main90389-07004iAE10#,CE100,EE10#199205-199704

MARK 0,LH

main90389-07005iAE10#,CE100,EE10#199205-199704

MARK 2,LH

main90389-07006iAE10#,CE100,EE10#199205-199704

MARK 3,LH

main90389-07007iAE10#,CE100,EE10#199205-199704

MARK 4,LH

main90389-07008iAE10#,CE100,EE10#199205-199704

MARK A,RH

main90389-07009iAE10#,CE100,EE10#199205-199704

MARK 6,RH

main90389-07010iAE10#,CE100,EE10#199205-199704

MARK 7,RH

main90389-07011iAE10#,CE100,EE10#199205-199704

MARK 8,RH

45893ASTOPPER, TILT STEERING PAWL

main45893-12021iAE10#,CE100,EE10#199205-199704

MARK A,LH

main45893-12071iAE10#,CE100,EE10#199205-199704

MARK F OR 11,RH

main45893-12120iAE10#,CE100,EE10#199205-199704

MARK B,LH

main45893-12130iAE10#,CE100,EE10#199205-199704

MARK C,LH

main45893-12140iAE10#,CE100,EE10#199205-199704

MARK D,LH

main45893-12150iAE10#,CE100,EE10#199205-199704

MARK E,LH

main45893-12160iAE10#,CE100,EE10#199205-199704

MARK G OR 12,RH

main45893-12170iAE10#,CE100,EE10#199205-199704

MARK H OR 13,RH

main45893-12180iAE10#,CE100,EE10#199205-199704

MARK I OR 14,RH

main45893-12190iAE10#,CE100,EE10#199205-199704

MARK J OR 15,RH

45897BOLT, STEERING LOCK SET

main45897-12020×2iAE10#,CE100,EE10#199205-199704

9011906378

main90119-06378

9011906569

main90119-06569

9011908560

main90119-08560

9011910478

main90119-10478

9017906009

main90179-06009

9017910016

main90179-10016

9017910065

main90179-10065

9020110283

main90201-10283

9020610011

main90206-10011

9161160820

main91611-60820

9165160618

main91651-60618

9165160625

main91651-60625

9331514012

main93315-14012

9356615514

main93566-15514

9461410600

main94614-10600

45 parts on this diagram · 2 diagrams in section
