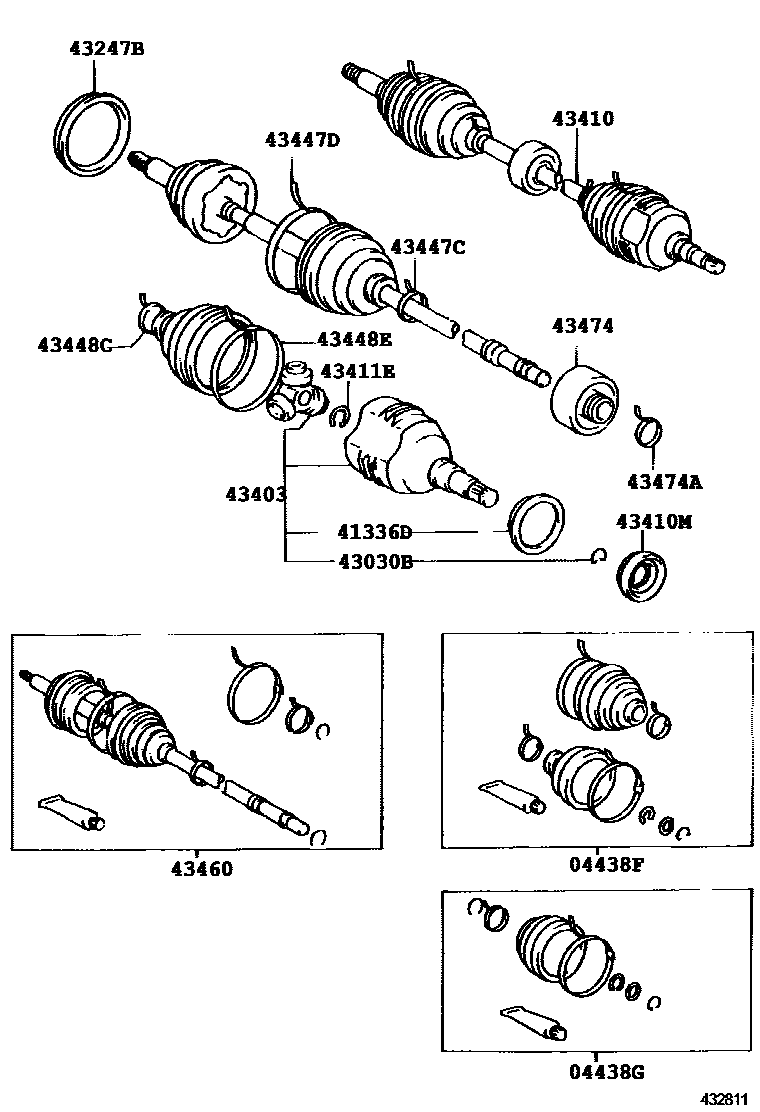

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-12172iAE101,EE10#¥10,800199205

sub04428-12270¥10,800

main04438-12270iCE100¥10,800199205-199408

sub04438-12290¥10,800

main04438-12290iCE100¥10,800199408

sub04438-20131¥10,800

main04438-20110iAE102¥10,800199211-199505

sub04438-20131¥10,800

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12162iAE10#,EE10#¥6,700199205-199511

sub04438-12410¥6,700

main04438-12260iCE100¥6,700199205-199511

sub04438-12420¥6,700

main04438-12410iAE101,EE101¥6,700199511

sub04438-12840¥6,700

main04438-12420iCE100¥6,700199511

sub04438-20121¥6,700

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iAE10#,EE10#¥130199205

main41336-32010iCE100¥200199205

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90521-26004iAE10#,EE10#¥100199205

main90521-27005iCE100¥110199205

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iAE10#,CE100,EE101¥780199205

W(*66)

main43247-33010iAE10#,CE100,EE10#¥2,400199205

43403JOINT SET, FRONT AXLE INBOARD, RH

main43030-20020iCE100¥26,300199205

main43403-12040iAE10#,EE10#¥27,100199205

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12350iCE100¥82,900199205

W(*66)

sub43410-12351¥82,700

sub90178-22001¥310

main43410-20152iAE101,EE10#¥82,600199205-199311

sub43410-20431¥82,600

sub90178-22001¥310

main43410-20341iCE100¥82,900199205

sub43410-20342¥82,700

sub90178-22001¥310

main43410-20420iAE102¥82,600199211-199309

sub43410-20421¥83,000

sub90178-22001¥310

main43410-20430iAE101,EE10#¥82,600199311-199410

sub43410-20431¥82,600

sub90178-22001¥310

main43410-20440iAE101,EE10#¥82,900199410

sub43410-20441¥82,600

sub90178-22001¥310

main43410-20450iAE101,EE101¥82,900199410

W(*66)

sub43410-20451¥82,600

sub90178-22001¥310

main43410-20460iAE102¥82,600199309-199505

sub43410-20461¥83,000

sub90178-22001¥310

main43410-20460iAE102¥82,600199211-199309

W(*66)

sub43410-20461¥83,000

sub90178-22001¥310

main43410-20470iAE101,EE101¥71,200199205-199410

W(*66)

sub43410-20450¥82,900

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34012iAE101..4FC¥350199205

main90311-34016iAE10#,EE10#..5F¥270199205

main90311-35019iCE100¥400199410-199507

main90311-35026iCE100¥290199205-199410

sub90311-35019¥400

main90311-35033iCE100¥400199507

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22005iAE10#,CE100,EE10#¥100199205

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-14010iAE102,CE100¥700199205

main90949-01078iAE101,EE10#¥80199205

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16020iAE101,EE10#¥280199307

main42345-16040iAE102,CE100¥550199307

main90949-01076iAE102,CE100¥380199205-199307

sub42345-12160¥300

main90949-01080iAE101,EE10#¥300199205-199307

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01078iAE10#,CE100,EE10#¥80199205

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16040iAE10#,CE100,EE10#¥550199307

main90949-01076iAE10#,CE100,EE10#¥380199205-199307

sub42345-12160¥300

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19655iCE100¥48,400199205

W(*66)

sub43460-19656¥48,300

sub90178-22001¥310

main43460-29098iAE101,EE10#¥47,500199205

sub43460-29099¥51,200

sub90178-22001¥310

main43460-29117iAE102¥51,400199211-199309

sub43460-29118¥51,400

sub90178-22001¥310

main43460-29147iCE100¥49,100199205

sub43460-29148¥51,200

sub90178-22001¥310

main43460-29167iAE101,EE101¥49,100199311

W(*66)

sub43460-29168¥51,200

sub90178-22001¥310

main43460-29197iAE102¥51,200199211-199307

W(*66)

sub43460-29198¥51,400

main43460-29198iAE102¥51,400199309-199505

sub43460-29199¥51,400

sub90178-22001¥310

main43460-29198iAE102¥51,400199307-199309

W(*66)

sub43460-29199¥51,400

sub90178-22001¥310

main43460-29235iAE101,EE101¥47,300199205-199311

W(*66)

sub43460-29167¥49,100

43474DAMPER, DRIVE SHAFT

main43474-12020iCE100¥4,940199205-199410

main43474-20050iAE102¥2,000199211-199410

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iAE10#,CE100,EE10#¥700199205-199307

main42345-16030iAE10#,CE100,EE10#¥660199307

16 parts on this diagram · 2 diagrams in section
