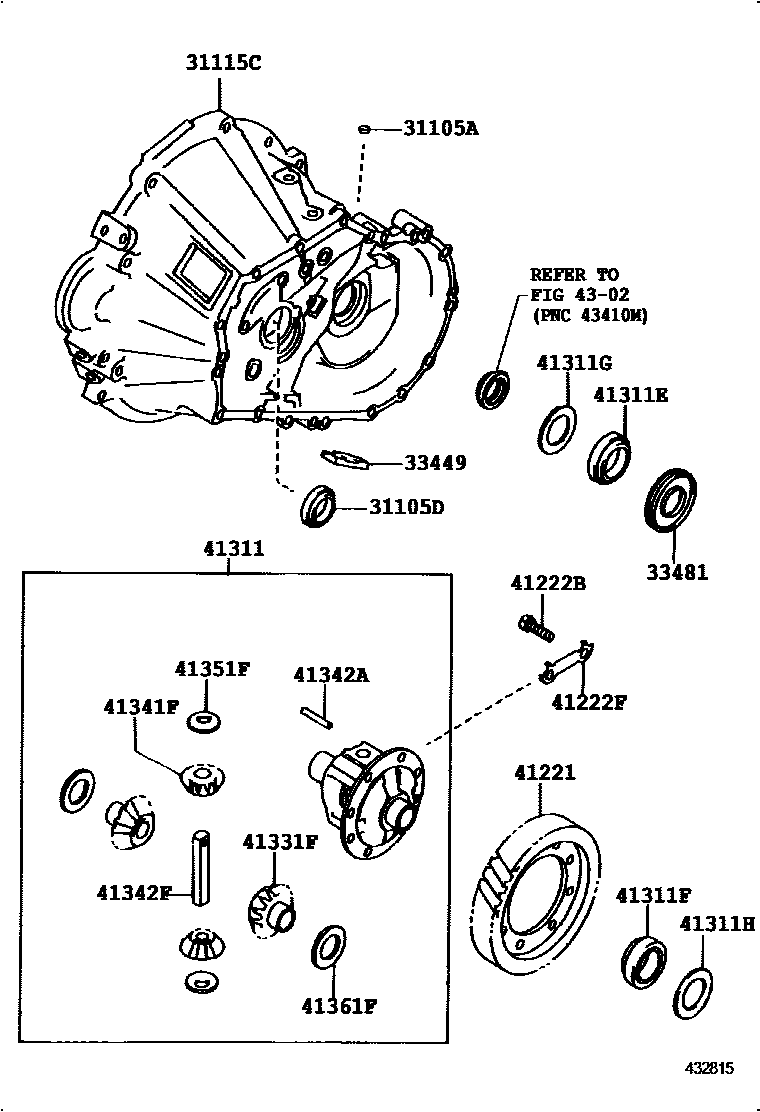

FRONT AXLE HOUSING & DIFFERENTIAL
31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=34,MARK 34X30-32
N=35,MARK 35X29-31
N=25
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.95
T=2.00
T=2.05
T=2.10
T=2.15
T=2.20
T=2.25
T=2.30
T=2.35
T=2.40
T=2.45
T=2.50
T=2.55
T=2.60
T=2.65
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.10
T=2.00,MARK V
T=2.35,MARK A
T=2.40,MARK B
T=2.45,MARK C
T=2.50,MARK D
T=2.55,MARK E
T=2.60,MARK F
T=2.65,MARK G
T=2.70,MARK H
T=2.75,MARK J
T=2.80,MARK K
T=2.85,MARK L
T=2.90,MARK M
T=2.10,MARK Q
T=2.15,MARK R
T=2.20,MARK S
T=2.25,MARK T
T=2.30,MARK U
T=2.05,MARK W
41331FGEAR, FRONT DIFFERENTIAL SIDE
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
4302
21 parts on this diagram · 4 diagrams in section
