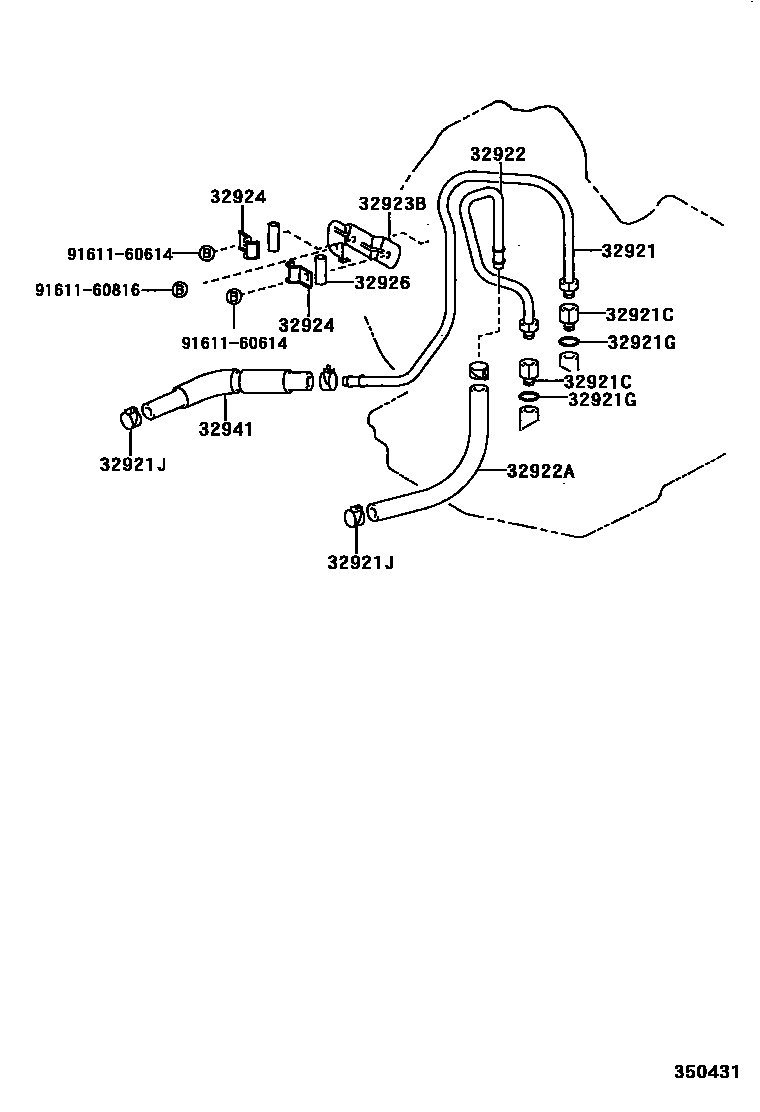

OIL COOLER & TUBE (ATM)

0001 1A240L 0002 1A132L

32921TUBE, OIL COOLER INLET, NO.1

main32921-12210iAE101..4FC199205

main32921-12280iEE101..3FC199205

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iAE101..4FC199205

INLET

main90407-14003iEE101..3FC199205

OUTLET

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iAE101,EE101..ATM199205

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039iAE101,EE101..ATM199205

sub96135-51300

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-12320iAE101..4FC199205

main32922-12360iEE101..3FC199205

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15020iEE101..3FC199511-199605

main90445-15042iAE101..4FC199205-199605

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-12190iEE101..3FC199205

main32923-12200iAE101..4FC199205

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-10082iAE101,EE101..ATM199205

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010iEE101..3FC199205-199301

L=30,ID=8

main32926-22010iAE101..4FC199205

L=35,ID=8

main32926-30011iEE101..3FC199205-199301

L=25,ID=8

32941HOSE, OIL COOLER INLET, NO.1

main32941-12171iAE101..4FC199205

main32941-12230iEE101..3FC199205

9161160614

main91611-60614

9161160816

main91611-60816

12 parts on this diagram · 2 diagrams in section
