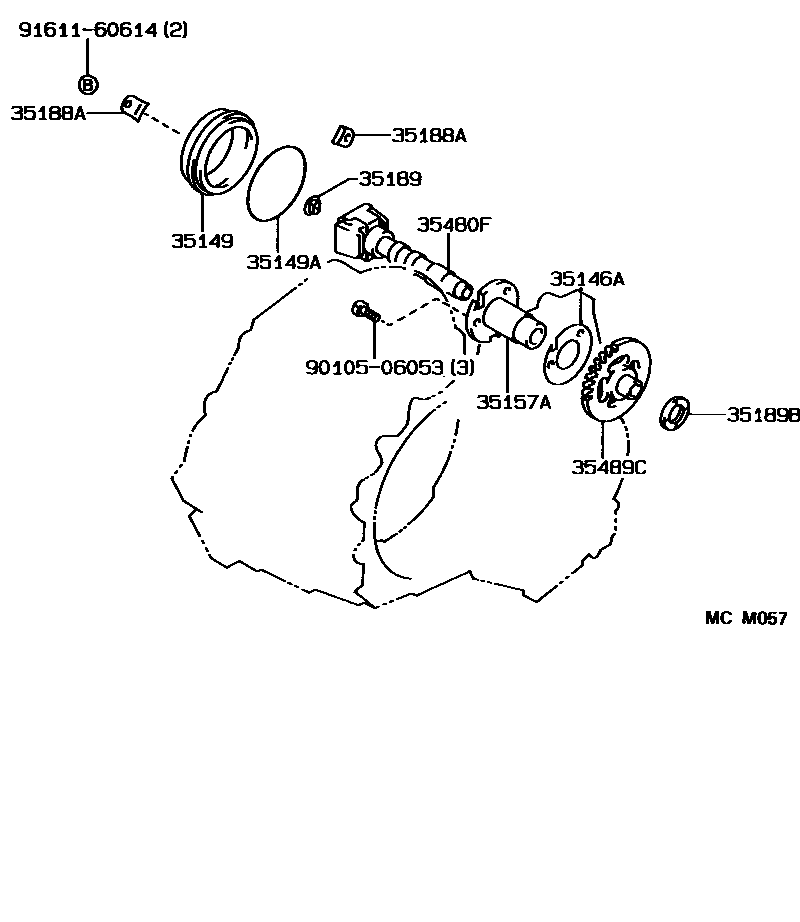

REAR OIL PUMP & GOVERNOR (ATM)

0001 1A240L 0002 1A132L

35146AGASKET, GOVERNOR BODY

main35146-20010iAE101..4FC¥230199205

35149COVER, GOVERNOR

main35149-12010iEE101..3FC¥660199205

main35149-20010iAE101..4FC¥720199205

35149ARING, O (FOR GOVERNOR COVER)

main90301-68001iAE101..4FC¥310199205

main90301-73001iEE101..3FC¥300199205

35157AADAPTER, GOVERNOR BODY

main35157-12010iEE101..3FC¥1,750199205

main35157-20031iAE101..4FC¥1,780199205

35188ABRACKET, GOVERNOR COVER

main35188-12010iEE101..3FC¥2,740199205

main35188-20010iAE101..4FC¥2,750199205

35189WASHER, GOVERNOR THRUST, NO.1

main35189-32011iAE101,EE101..ATM¥350199205

35189BWASHER, GOVERNOR THRUST, NO.2

main35189-12010iAE101..4FC¥340199205

35480FBODY ASSY, GOVERNOR

main35480-12030iAE101..4FC¥11,300199205

main35480-12040iEE101..3FC¥11,200199205-199505

sub35480-16070¥13,200

main35480-32013iEE101..3FC¥11,900199505

35489CGEAR, GOVERNOR DRIVEN

main35489-12010iAE101..4FC¥2,520199205

9010506053

main90105-06053¥70

9161160614

main91611-60614¥180

11 parts on this diagram · 2 diagrams in section
