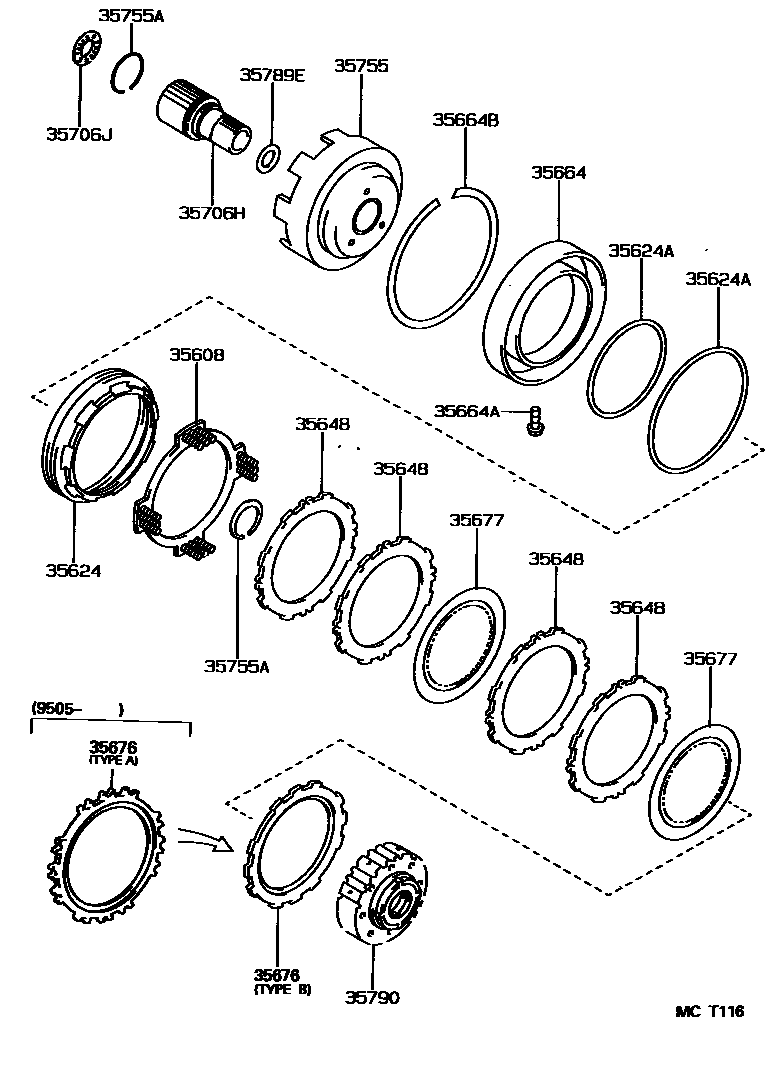

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iAE101,EE101..ATM¥1,480199205

35624PISTON, 2ND BRAKE

main35624-32010iAE101,EE101..ATM¥3,680199205

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iAE101,EE101..ATM¥640199205

INNER

main90301-99023iAE101,EE101..ATM¥1,090199205

OUTER

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-32010iAE101..4FC¥2,000199205

T=1.8

35664CYLINDER, 2ND BRAKE

main35664-32010iAE101,EE101..ATM¥5,400199205

35664ABOLT (FOR 2ND BRAKE CYLINDER)

main90109-06060iAE101,EE101..ATM¥160199205

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90521-99013iAE101,EE101..ATM¥550199205

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-32010iEE101..3FC;AE101..LB..4FC¥4,590199205-199704

T=3.5

sub35676-12030¥4,810

main35676-32010iAE101..HB..4FC¥4,590199211-199704

T=3.5,TYPE B

sub35676-12030¥4,810

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-12070iAE101..4FC¥3,010199505

main35677-20040iAE101..4FC¥2,980199205-199505

main35677-30040iEE101..3FC¥2,600199205

sub35677-43010¥2,070

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-12010iAE101,EE101..ATM¥10,400199210

main35706-32030iAE101,EE101..ATM¥10,000199205-199210

sub35706-12010¥10,400

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-30006iAE101,EE101..ATM¥770199205

35755DRUM, SUN GEAR INPUT

main35755-32020iAE101,EE101..ATM¥4,760199205

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-44002iAE101,EE101..ATM¥170199205

T=1.2,ID=44.0

main90520-47003iAE101,EE101..ATM¥160199205

T=2.3,ID=47.1

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iAE101,EE101..ATM¥530199205

35790CLUTCH ASSY, 1 WAY

main35790-32050iAE101,EE101..ATM¥10,800199205

15 parts on this diagram · 1 diagram in section
