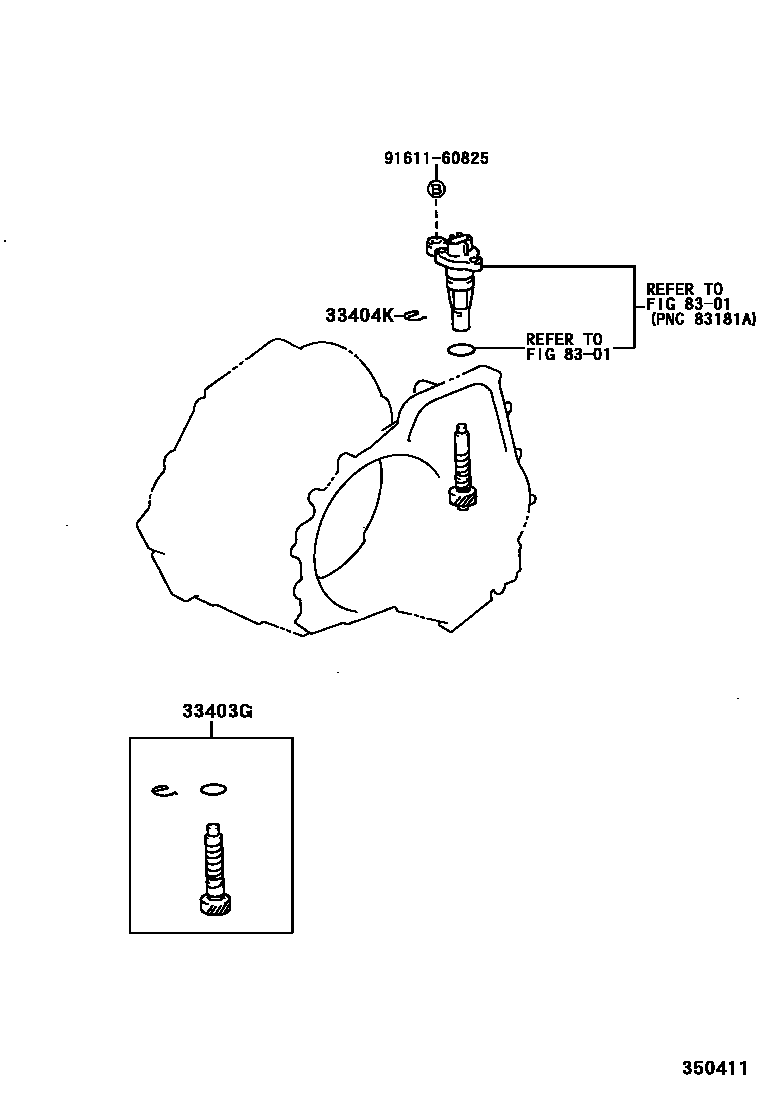

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A240L 0002 1A132L

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19465iAE101..4FC199205

N=31,MARK 31:35

main33403-19515iEE101..3FC199205

N=22,MARK 22:25

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAE101,EE101..ATM199205

8301

9161160825

main91611-60825

4 parts on this diagram · 2 diagrams in section
