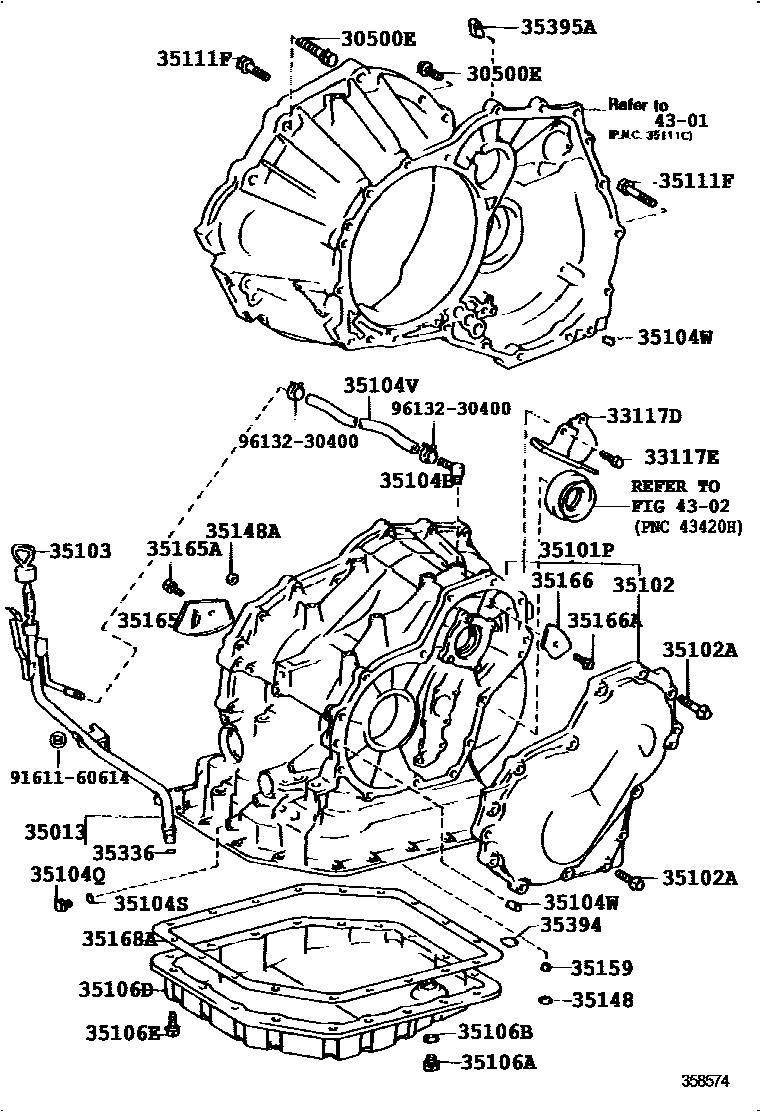

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A240L 0002 1A132L 0003 1A240L 0004 1A132L

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10077iAE101..4FC199205

*10-1.25PX43-26

main90105-10097iEE101..3FC199205

*10-1.25PX60-22

main90119-12168iAE101,EE101..ATM199205

*12-1.25PX55-30

main91611-61025iEE101..3FC199205-199605

*10-1.25PX25-25

sub91612-61025

main91619-61245iAE101,EE101..ATM199205

*12-1.25PX45-30

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iAE101..4FC199205

main33117-12040iEE101..3FC199205

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040iAE101,EE101..ATM199205

sub91641-H0820

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-12280iAE101..4FC199205-199505

main35013-12310iEE101..3FC199205-199505

main35013-12380iEE101..3FC199505

main35013-12390iAE101..4FC199505

35101PCASE & COVER SUB-ASSY, TRANSAXLE

main35101-12021iAE101..4FC199205-199302

main35101-12022iAE101..4FC199302-199502

sub35101-12023

main35101-12023iAE101..4FC199502

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-10011iEE101..3FC199205

main35102-20050iAE101..4FC199205

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08050iEE101..3FC199205

*8-1.25PX28-28

main90105-08056iEE101..3FC199205

*8-1.25PX40-40

main90105-08065iAE101..4FC199205

*8-1.25PX45-35

main90105-08068iAE101..4FC199205

*8-1.25PX35-30

sub90105-08333

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-12140iAE101..4FC199205-199505

main35103-12180iEE101..3FC199505

main35103-12190iEE101..3FC199205-199505

main35103-12270iAE101..4FC199505

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03089iEE101..3FC199205

main90930-03101iAE101..4FC199205

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iAE101..4FC199205

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iAE101..4FC199205

35104VHOSE (FOR BREATHER PLUG)

main90447-11019iAE101..4FC199205

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10007iAE101..4FC199205-199307

HOUSING SIDE

main90250-10021iAE101..4FC199307

HOUSING SIDE

main90250-11001iAE101..4FC199205

RR COVER SIDE

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iAE101..4FC199205

sub90341-10011

main90341-18016iEE101..3FC199205

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iAE101..4FC199205

main90430-18008iEE101..3FC199205

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-10022iEE101..3FC199205

main35106-12070iAE101..4FC199205

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iEE101..3FC199205

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08065iAE101..4FC199205

*8-1.25PX45-35

main90105-08066iAE101..4FC199205

*8-1.25PX72-30

main90105-08068iAE101..4FC199205

*8-1.25PX35-30

sub90105-08333

main90105-08071iAE101..4FC199205

*8-1.25PX30-25

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iAE101,EE101..ATM199205

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010iAE101..4FC199205

35159GASKET, BRAKE DRUM

main35159-20010iAE101..4FC199205

main35159-32011iEE101..3FC199205

35165PLATE, TRANSMISSION CASE, NO.1

main35165-12010iAE101..4FC199205

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iAE101..4FC199205

35166PLATE, TRANSMISSION CASE, NO.3

main35166-12010iAE101..4FC199205

35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)

main90105-06049iAE101..4FC199205

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iAE101..4FC199205

main35168-32010iEE101..3FC199205

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iAE101,EE101..ATM199205

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iAE101,EE101..ATM199205-199310

35395ASTRAINER, GOVERNOR OIL

main35395-12020iAE101..4FC199205

main35395-32020iEE101..3FC199205-199404

sub35395-32030

main35395-32030iEE101..3FC199404

4301

4302

9161160614

main91611-60614

9613230400

main96132-30400
