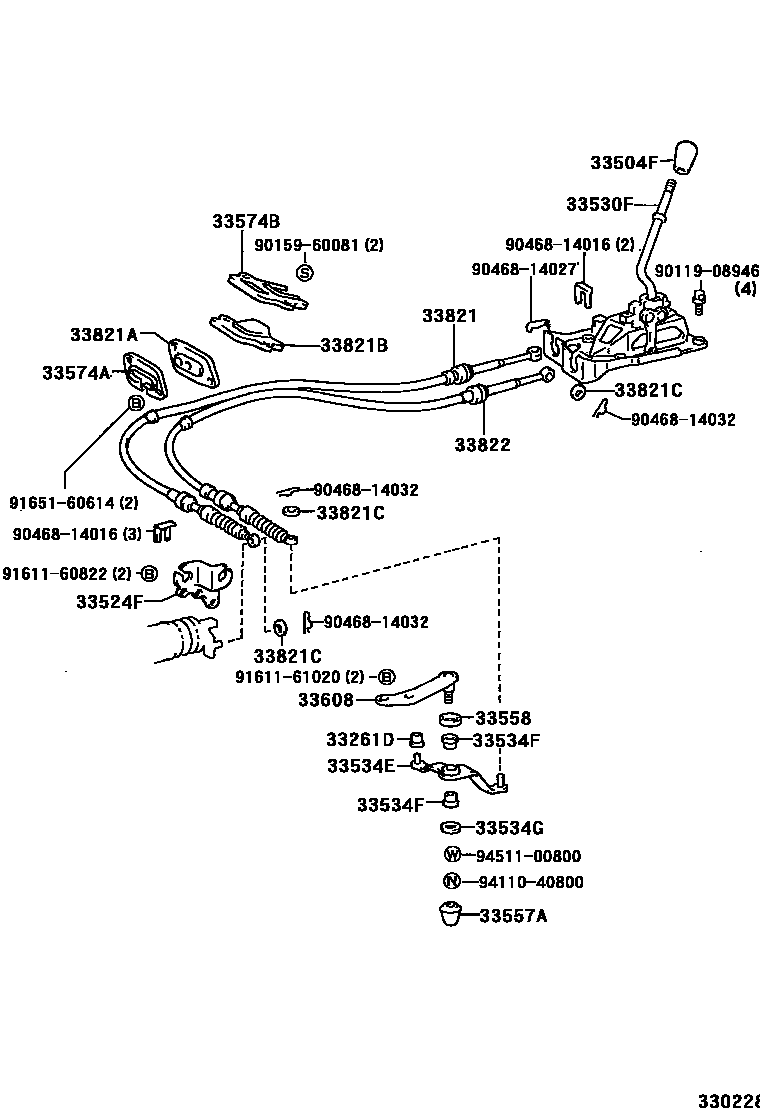

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iAE10#,EE10#..5F199408

main90389-10009iAE10#,EE10#..5F199205-199408

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-J0iAE101,CE100,EE10#..5F..(GLI,XL,XLI)199205-199704

DARK BLUE,TRIM8#

main33504-12180-P0iAE101,CE100,EE10#..5F..(GLI,SI,XL,XLI)199205-199505

SHADOW GRAY,TRIM1#

main33504-12200-B1iCE100,EE101..LHD..(XL,XLI)199412-199504

95 SPRING CAMPAIGN(FRANCE,BELGIUM),SHADOW GRAY,TRIM1#

sub33504-22140

main33504-14050-14iCE100,EE101..STD199205-199704

BLUE,TRIM8#

sub33504-14070

main33504-14050-B0iCE100,EE101..STD199205-199603

SHADOW GRAY,TRIM1#

sub33504-14070

main33504-14050-B1iCE100,EE101..STD199603-199704

DARK SMOKE GRAY,TRIM1#

sub33504-14070

main33542-12170-B0iEE101..RHD..3FC199205-199409

SHADOW GRAY,TRIM1#

main33542-12170-J0iEE101..RHD..3FC199205-199409

DARK BLUE,TRIM8#

main33542-12171-B0iEE101..RHD..3FC199409-199704

SHADOW GRAY,TRIM1#

main33542-12171-J0iEE101..RHD..3FC199409-199704

DARK BLUE,TRIM8#

main33542-12180-B0iAE101..RHD..4FC199205-199404

SHADOW GRAY,TRIM1#

main33542-12180-J0iAE101..RHD..4FC199205-199404

DARK BLUE,TRIM8#

main33542-12181-B0iAE101..RHD..4FC199404-199704

SHADOW GRAY,TRIM1#

main33542-12181-J0iAE101..RHD..4FC199404-199704

DARK BLUE,TRIM8#

main33542-12190-B0iEE101..LHD..3FC199205-199704

SHADOW GRAY,TRIM1#

main33542-12190-J0iEE101..LHD..3FC199205-199704

DARK BLUE,TRIM8#

main33542-12200-B0iAE101..LHD..4FC199205-199407

SHADOW GRAY,TRIM1#

main33542-12200-J0iAE101..LHD..4FC199205-199407

DARK BLUE,TRIM8#

main33542-12201-B0iAE101..LHD..4FC199407-199704

SHADOW GRAY,TRIM1#

main33542-12201-J0iAE101..LHD..4FC199407-199704

DARK BLUE,TRIM8#

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-12011iAE10#,EE10#..5F199205

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-12570iAE10#,CE100,EE101..RHD..5F199205-199505

main33530-12620iAE10#,CE100,EE10#..LHD..5F199205-199505

main33530-12630iAE101,CE100,EE101..RHD..5F199505

main33530-12680iAE101,CE100,EE101..LHD..5F199505-199703

main33530-12681iAE101,CE100,EE101..LHD..5F199703

33534ECRANK, SELECTING BELL, NO.2

main33534-10060iEE101..5F199701

main33534-16050iAE10#,EE10#..5F199205-199408

main33534-16051iAE101..5F199701

main33534-33010iCE100199205

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022×2iAE10#,CE100,EE10#..5F199205

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iAE10#,CE100,EE10#..5F199205

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-32010iAE10#,CE100,EE10#..5F199205

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030iAE10#,EE10#..5F199205

main33558-32010iCE100199205

33574ARETAINER, SHIFT CABLE GROMMET, NO.1

main33574-12040iAE101,EE101..ATM199205

main33574-12080iAE10#,CE100,EE10#..5F199205

33574BRETAINER, SHIFT CABLE GROMMET, NO.2

main33574-12060iAE10#,CE100,EE10#..5F199205

33608SUPPORT SUB-ASSY, SELECTING BELLCRANK

main33608-10031iEE10#..5F199205-199408

main33608-10032iEE10#..5F199408

main33608-16020iAE10#..5F199205-199408

main33608-16021iAE10#..5F199408

main33608-33010iCE100199205

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-12460iAE10#,EE10#..5F199205-199505

main33821-12490iCE100199205-199505

main33821-12720iAE101,EE101..5F199505

CHUO HATSUJO

main33821-12730iAE101,EE101..5F199505

NIPPON CABLE

main33821-12740iCE100199505

33821AGROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main90480-01400iAE10#,CE100,EE10#..5F199205

33821BGROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE)

main90480-01391iAE101,EE101..ATM199205-199505

main90480-01398iAE10#,CE100,EE10#..5F199205

main90480-01678iAE101,EE101..ATM199505

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08077×2iAE10#,CE100,EE10#..5F199205

OD=30,TRANSAXLE SIDE

main90201-10042iAE10#,CE100,EE10#..5F199205

SHIFT LEVER SIDE

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-12190iAE10#,EE10#..5F199205-199505

main33822-12220iCE100199205-199505

main33822-12290iAE101,EE101..5F199505

main33822-12310iCE100199505

9011908946

main90119-08946

9015960081

main90159-60081

9046814016

main90468-14016

9046814027

main90468-14027

9046814032

main90468-14032

9161160822

main91611-60822

9161161020

main91611-61020

9165160614

main91651-60614

9411040800

main94110-40800

9451100800

main94511-00800

27 parts on this diagram · 7 diagrams in section
