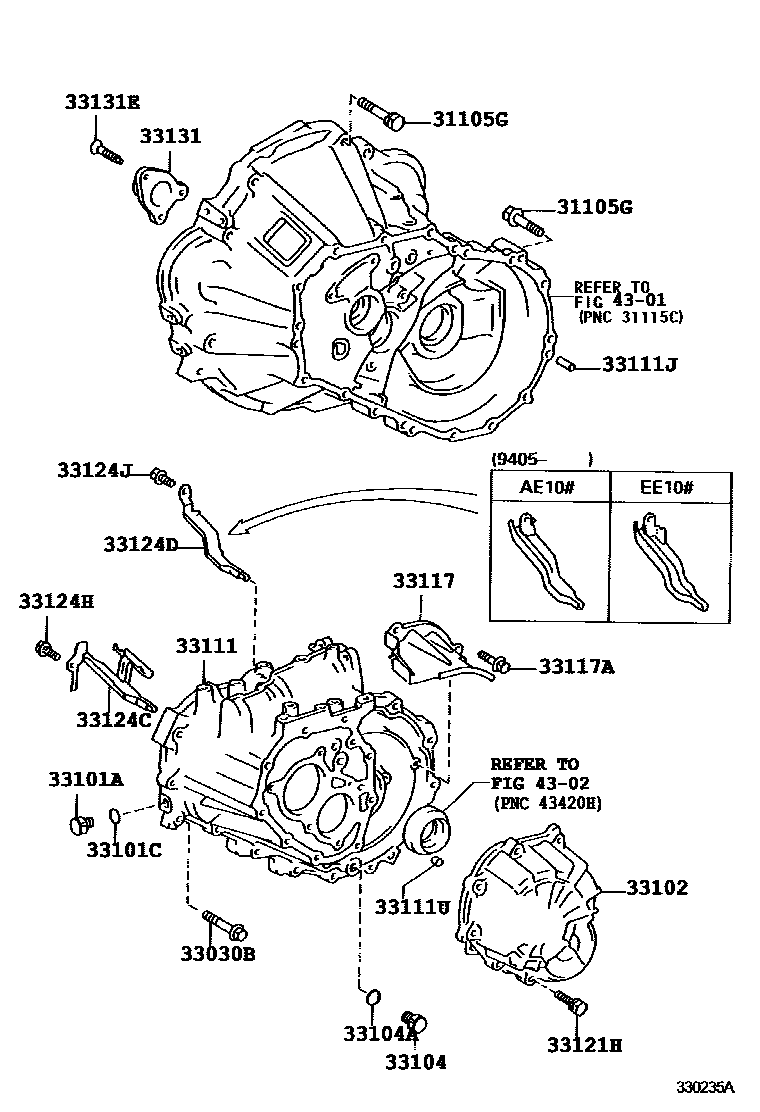

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C52,C150 0002 1S50

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iCE100¥180199205

*8-1.25PX18-15

sub91641-H0820¥90

main90105-10077iAE10#,CE100..5F¥260199205

*10-1.25PX43-26

main90105-10097iEE10#..5F¥250199205

*10-1.25PX60-22

main90119-12042iAE10#..5F¥260199205

*12-1.25PX75-30

main90119-12168iCE100¥170199205

*12-1.25PX55-30

main91611-61025iEE100¥240199205-199505

*10-1.25PX25-25

sub91612-61025¥120

main91619-61260iEE10#..5F¥130199205

*12-1.25PX60-30

main91621-60614iEE100¥120199205-199505

*6-1.00PX14-14

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iCE100¥300199205

*8-1.25PX45-27.5

sub90105-08430¥100

main90105-08064iAE10#..5F¥190199205

*8-1.25PX51-28

sub90105-08353¥100

main90105-08086iAE10#..5F¥110199205

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iAE10#,CE100,EE10#..5F¥180199205-199306

main90341-18033iCE100¥190199205-199306

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAE10#,CE100,EE10#..5F¥110199205

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10021iEE10#..5F¥3,510199205-199208

sub33102-10022¥3,510

main33102-10022iEE10#..5F¥3,510199208-199504

sub33102-10023¥3,540

main33102-10023iEE10#..5F¥3,540199504

main33102-12021iAE10#..5F¥9,800199205

main33102-33020iCE100¥16,300199205

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAE10#,CE100,EE10#..5F¥180199205

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAE10#,CE100,EE10#..5F¥110199205

33111CASE, MANUAL TRANSMISSION

main33111-10071iEE10#..5F¥39,100199205-199405

sub33111-16050¥35,000

sub33124-10021¥1,260

main33111-16040iAE10#..5F¥35,000199205-199405

sub33111-16070¥35,000

sub90109-12073¥230

main33111-16050iEE10#..5F¥35,000199405-199505

sub33111-16080¥35,000

sub90109-12073¥230

main33111-16051iEE101..5F¥35,100199505-199704

sub33111-16052¥35,100

sub90109-12073¥230

main33111-16060iAE10#..5F¥35,000199405-199505

sub33111-16070¥35,000

sub90109-12073¥230

main33111-16061iAE101..5F¥35,100199505-199704

sub33111-16062¥35,100

sub90109-12073¥230

main33111-33030iCE100¥37,900199205-199411

sub33111-33040¥37,800

main33111-33031iCE100¥38,100199411-199704

sub33111-32030¥38,100

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iCE100¥120199205

L=23,OD=8

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iAE10#..5F¥120199205

L=11,OD=11

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-16010iAE10#,EE10#..5F¥730199205-199505

main33117-32011iCE100¥2,010199205

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iCE100¥180199205-199505

sub91641-H0820¥90

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08273iCE100¥170199205

main90119-08494iEE10#..5F¥140199205-199410

sub90119-08373¥140

main90119-08A34iEE10#..5F¥130199410

sub90119-08373¥140

main91611-60835iAE10#..5F¥90199205

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10010iEE10#..5F¥1,560199205-199504

main33124-10012iEE10#..5F¥750199504

main33124-12010iAE10#..5F¥1,190199205-199503

main33124-12012iAE10#..5F¥710199503

sub33124-20050¥440

main33124-33010iCE100¥720199205

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10020iEE10#..5F¥1,190199205-199405

main33124-10021iEE10#..5F¥1,260199405

main33124-12020iAE10#..5F¥1,190199205-199405

main33124-12021iAE10#..5F¥720199405

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60820iAE10#,EE10#..5F¥200199205

sub91611-G0820¥160

main91651-60618iCE100¥90199205

33124JBOLT, W/WASHER

main91611-60820iAE10#,EE10#..5F¥200199205

sub91611-G0820¥160

33131RETAINER, BEARING, FRONT(MTM)

main33131-12071iAE10#..5F¥1,760199205-199608

sub33131-12080¥1,760

main33131-12080iAE101..5F¥1,760199608

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAE10#..5F¥70199205

4301

4302
