TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

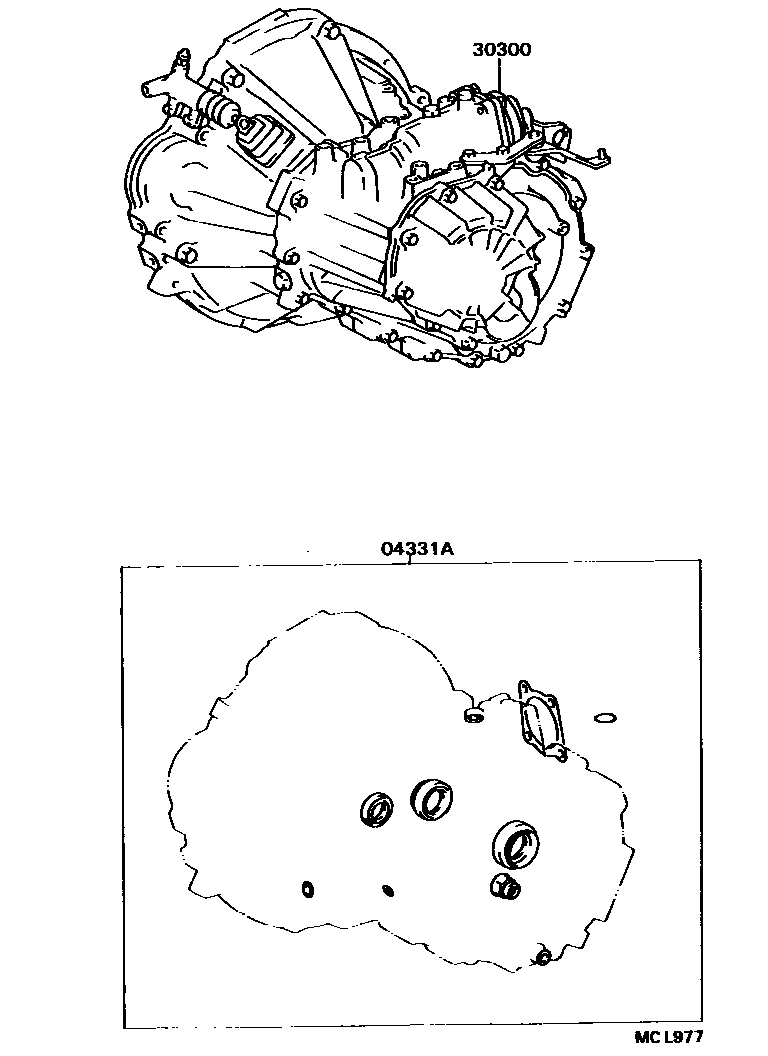

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-12110i199205
main04331-32011i199205
30300TRANSAXLE ASSY, MANUAL
main30300-12731i199205-199206
sub30300-1A120
main30300-12800i199205-199505
sub30300-12801
main30300-12801i199505
main30300-12860i199205-199405
sub30300-12861
main30300-12861i199405-199505
sub30300-12862
main30300-12862i199505
main30300-1A080i199211-199505
sub30300-1A081
main30300-1A120i199206

2 parts on this diagram · 2 diagrams in section
