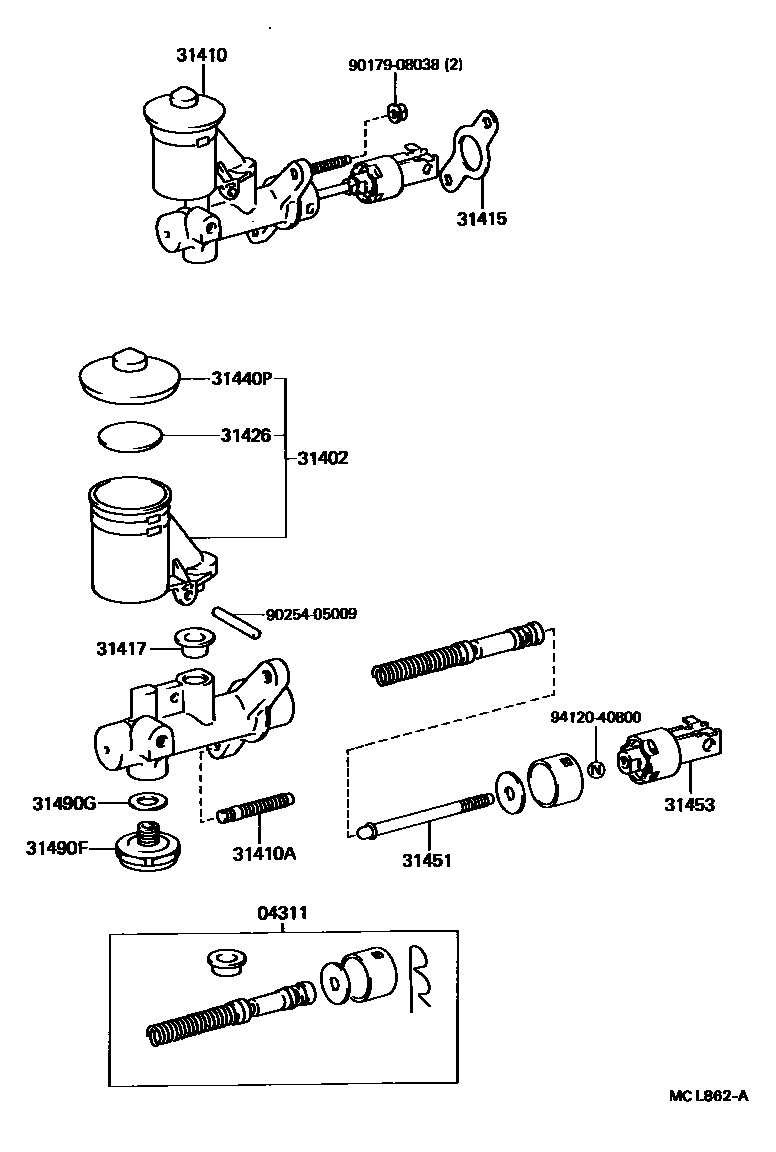

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12100iAE101,CE100,EE10#..5F199205-199704

main04311-12110iEE10#..5F;AE102..RHD;AE101..LHD..5F199208-199704

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-12030iAE101,CE100..RHD..5F199205-199311

main31402-12040iAE101,EE10#..LHD..5F199307

sub31402-12050

main31402-12050iAE102,CE100..LHD199205-199307

main31402-12060iAE102..RHD199205-199505

31410CYLINDER ASSY, CLUTCH MASTER

main31410-12301iAE101..RHD..5F199205-199311

sub31410-12302

main31410-12302iAE101,EE101..RHD..5F199311

sub31410-12312

main31410-12311iEE101..RHD..5F199205-199208

sub31410-12312

main31410-12312iAE102,EE101..RHD..5F199208-199505

main31410-12361iCE100..RHD199205-199311

sub31410-12362

main31410-12362iCE100..RHD199311

main31410-12370iAE101,EE10#..LHD..5F199307

sub31410-12371

main31410-12380iAE102,CE100..LHD199205-199307

sub31410-12381

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iAE10#,CE100,EE10#..5F199205

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iAE10#,CE100,EE10#..5F199205

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iAE10#,CE100,EE10#..5F199205

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iAE10#,CE100,EE10#..LHD..5F199205

main31426-30011iAE10#,CE100,EE101..RHD..5F199205

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iAE10#,CE100,EE10#..5F199205

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20090iEE101..LHD..5F;AE101,EE100..5F199310-199311

main31451-35070iAE101..RHD..5F199205-199310

main31451-35080iAE102,CE100199205-199311

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010iAE101..LHD..5F;AE102,CE100,EE10#..5F199205-199311

main31453-10020iAE101..RHD..5F199205-199310

main31453-10040iEE101..LHD..5F;AE101,EE100..5F199310-199311

31490FACCUMULATOR ASSY, MASTER CYLINDER

main31490-12010iCE100..RHD199205

31490GGASKET(FOR CLUTCH MASTER CYLINDER ACCUMULATOR)

main90430-16005iCE100..RHD199205

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

15 parts on this diagram · 6 diagrams in section
