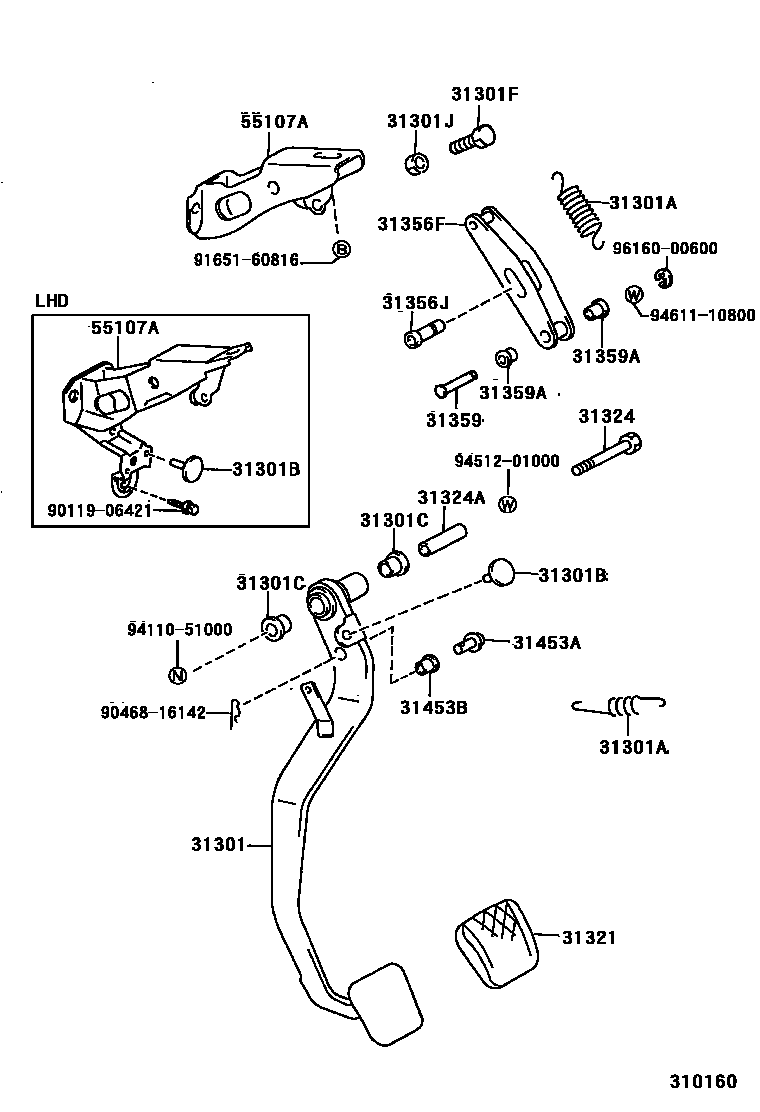

CLUTCH PEDAL & FLEXIBLE HOSE
31301ASPRING(FOR CLUTCH PEDAL)
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31301JNUT(FOR CLUTCH PEDAL STOPPER)
31321PAD, CLUTCH PEDAL
31324SHAFT, CLUTCH PEDAL
31324ACOLLAR, CLUTCH PEDAL SHAFT
31356FPLATE, CLUTCH PEDAL OVER CENTER, NO.1
31356JCOLLAR(FOR CLUTCH PEDAL OVER CENTER PLATE NO.1)
31359PIN, CLUTCH PEDAL OVER CENTER SPRING
31359ABUSH(FOR CLUTCH PEDAL OVER CENTER SPRING PIN)
31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
55107ASUPPORT SUB-ASSY, CLUTCH PEDAL
9011906421
main90119-06421
9046816142
main90468-16142
9165160816
main91651-60816
9411051000
main94110-51000
9451201000
main94512-01000
9461110800
main94611-10800
9616000600
main96160-00600
23 parts on this diagram · 5 diagrams in section
