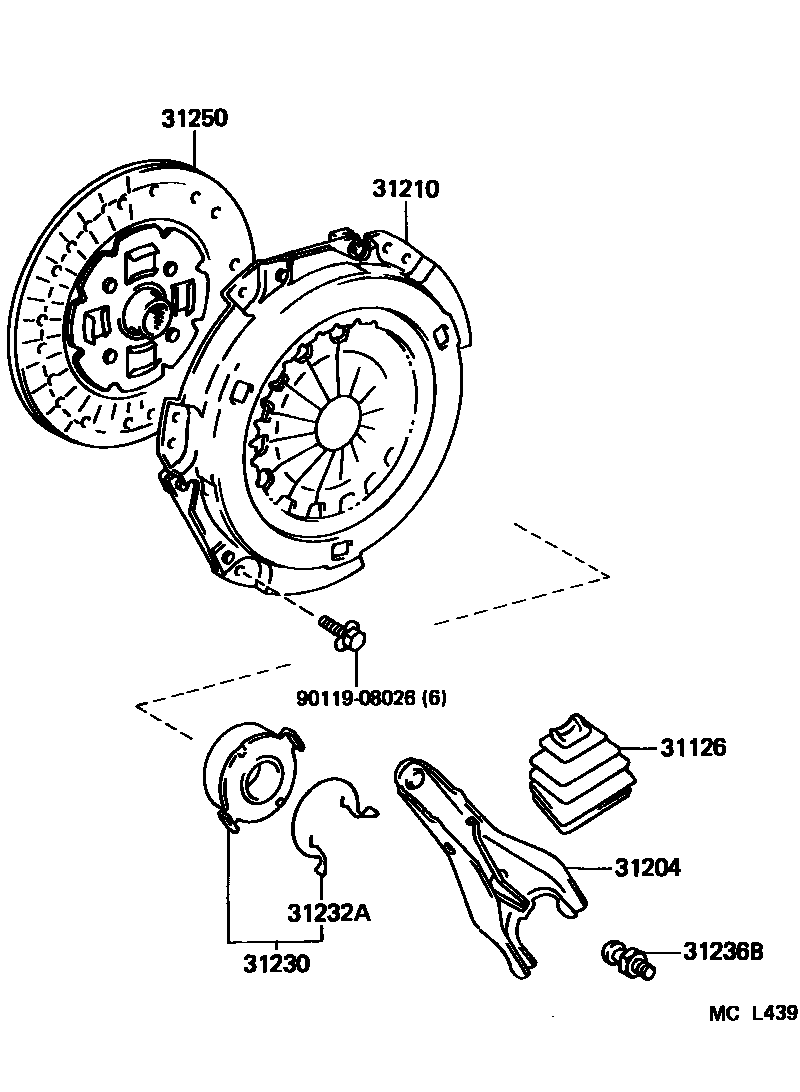

CLUTCH & RELEASE FORK
31204FORK SUB-ASSY, CLUTCH RELEASE
31210COVER ASSY, CLUTCH
F & S
sub31210-12152
sub31210-12181
sub31210-12201
sub31210-52050
sub31210-12221
sub31210-12320
31232ACLIP, RELEASE BEARING HUB
TYPE 1
TYPE 2
TYPE 3
TYPE 4
TYPE 5
TYPE 6
TYPE 7
31236BSUPPORT, RELEASE FORK
31250DISC ASSY, CLUTCH
sub31250-12390
sub31250-12281
sub31250-12282
sub31250-12283
sub31250-12380
sub31250-12360
sub31250-20280
sub31250-12370
9011908026
main90119-08026
8 parts on this diagram · 2 diagrams in section
