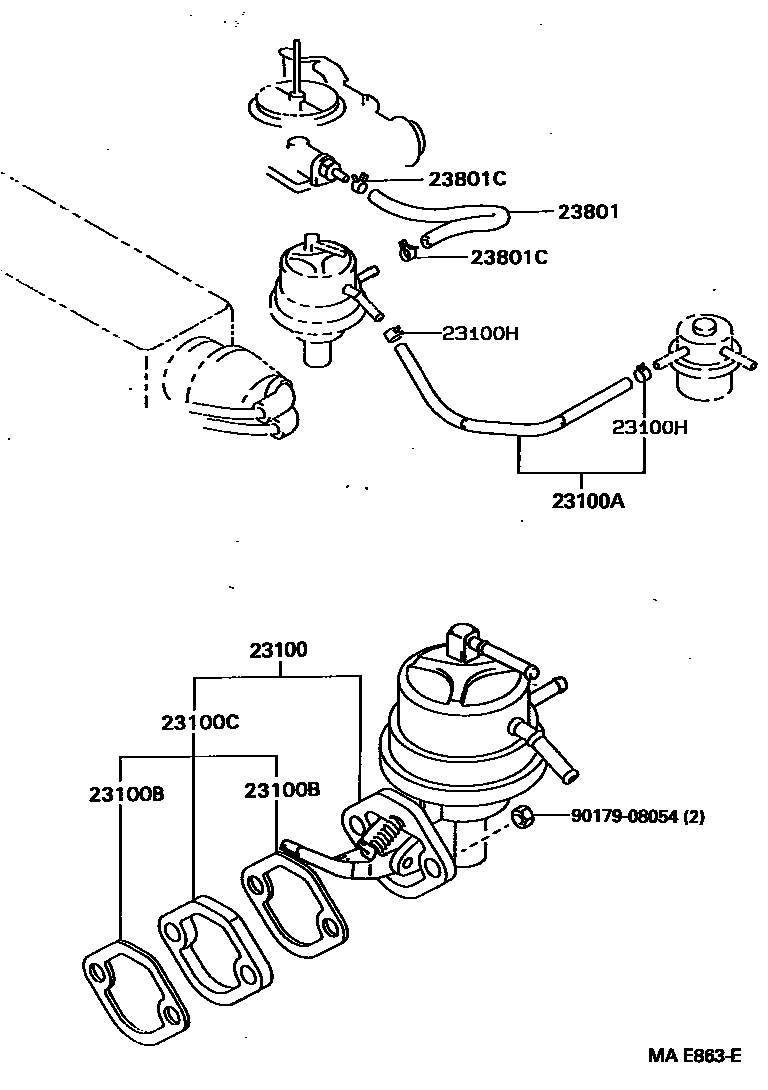

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-19255i2E..EE100199205-199503

main23100-19256i2E..EE100199503-199505

sub23100-19257

sub95334-06010

23100AHOSE, FUEL

main23271-11180i2E..EE100199205-199505

23100BGASKET, FUEL PUMP

main90923-05024×2i2E..EE100199205-199505

23100CINSULATOR, FUEL PUMP

main23915-10021i2E..EE100199205-199505

23100HCLIP(FOR FUEL HOSE)

main96132-41100×2i2E..EE100199205-199505

sub96132-51100

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main95333-06020i2E..EE100199205-199304

sub95337-06020

main95334-06015i2E..EE100199304-199505

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96135-41100×2i2E..EE100199205-199505

sub96135-51100

9017908054

main90179-08054

8 parts on this diagram · 1 diagram in section
