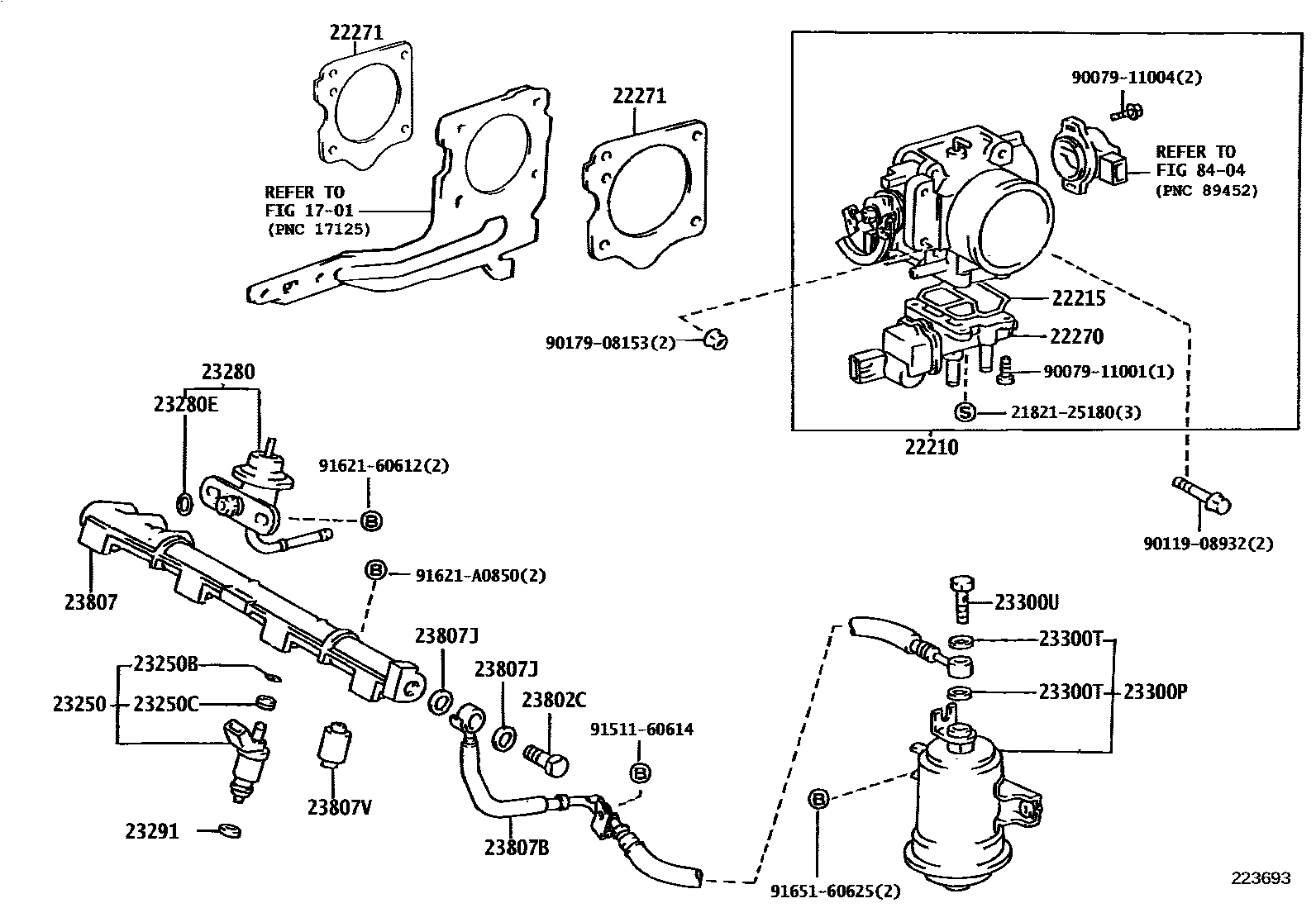

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1701MANIFOLD

→ Go to FIG 17-01

22210BODY ASSY, THROTTLE

main22210-11340i4EFE..EE101..5F199205-199505

main22210-11350i4EFE..EE101..3FC199205-199505

main22210-11440i4EFE..EE101..5F199505-199601

main22210-11450i4EFE..EE101..3FC199505-199601

main22210-11480i4EFE..EE101..5F199601

main22210-11490i4EFE..EE101..3FC199601

main22210-16710i4AFE,7AFE..AE10#..RHD199205-199605

main22210-16720i4AFE..AE101..LHD..4FC199205-199605

main22210-16740i4AFE,7AFE..AE10#..LHD..5F199205-199605

main22210-16800i4AFE..AE101..LHD..4FC199605

main22210-16860i4AFE..AE101..LHD..5F199605

main22210-16890i4AFE..AE101..RHD199605

22215GASKET, THROTTLE BODY COVER

main22215-11110i4EFE..EE101199205-199505

main22215-74400i4AFE,7AFE..AE10#199205

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-11010i4EFE..EE101199505

main22270-15010i4AFE,7AFE..AE10#199205-199605

main22270-16060i4AFE..AE101199605

22271GASKET, THROTTLE BODY

main22271-11020i4EFE..EE101199205-199407

main22271-11030i4EFE..EE101199407

main22271-15020i4AFE,7AFE..AE10#199205

23250INJECTOR ASSY, FUEL

main23209-11100i4EFE..EE101199205-199505

main23209-11110i4EFE..EE101199505

main23209-16150i4AFE..AE101199205

main23209-16160i7AFE..AE102199211-199505

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i4AFE,7AFE..AE10#199205

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i4EFE..EE101199205

23280REGULATOR ASSY, FUEL PRESSURE

main23280-11070i4EFE..EE101199205

main23280-15020i4AFE,7AFE..AE10#199205

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i4AFE,7AFE..AE10#199205

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i4AFE,7AFE..AE10#199205

23300PFILTER, FUEL(FOR EFI)

main23300-19285i7AFE..AE102..LHD;4AFE..AE101..LB..LHD;4AFE..AE101..HB..LHD..5F199205-199505

EUROPE POSSESSION

main23300-19285i4AFE..AE101..HB..5F..XLI;4AFE,7AFE..AE10#..LHD..5F..(GLI,GTI,SI)199307-199505

EUROPE POSSESSION OR ENGLAND SEPC

main23300-19295i4AFE,7AFE..AE10#199205

23300TGASKET(FOR FUEL FILTER)

main90430-12026i4EFE..EE101199205

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i4EFE..EE101199205

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-08004i4EFE..EE101199305

main90401-08010i4EFE..EE101199205-199305

main90401-12097i4AFE,7AFE..AE10#199205

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-11060i4EFE..EE101199205

main23814-15050i4AFE,7AFE..AE10#199205

23807BHOSE, FUEL DELIVERY PIPE

main23271-15270i4AFE,7AFE..AE10#199205-199306

main23271-16200i4AFE,7AFE..AE10#199306

23807JGASKET, PIPE FUEL DELIVARY INLET

main90430-12026i4AFE,7AFE..AE10#199205

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23890-11010i4EFE..EE101199205-199604

main23891-11020i4EFE..EE101199604

main90561-08020i4AFE,7AFE..AE10#199205

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9007911001

main90079-11001

9007911004

main90079-11004

9011908932

main90119-08932

9017908153

main90179-08153

9151160614

main91511-60614

9162160612

main91621-60612

91621A0850

main91621-A0850

9165160625

main91651-60625

29 parts on this diagram · 4 diagrams in section
