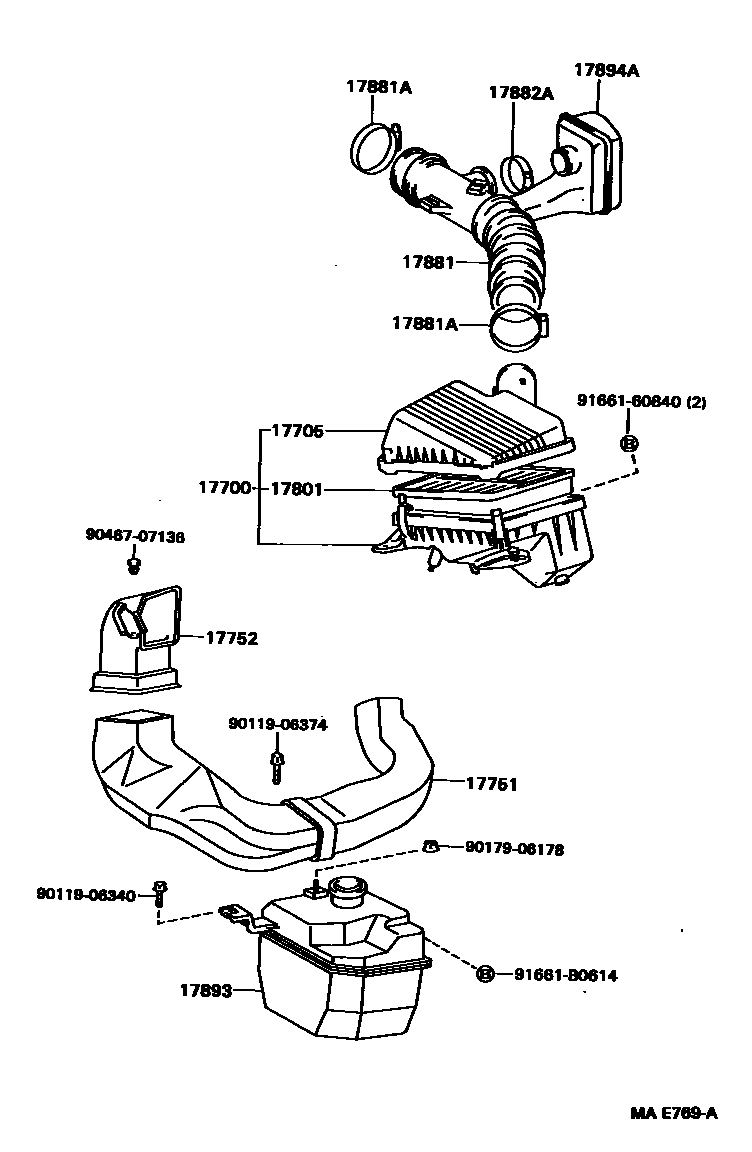

AIR CLEANER
17700CLEANER ASSY, AIR
(L)
(J)
17751INLET, AIR CLEANER, NO.1
(L)
(J)
17752INLET, AIR CLEANER, NO.2
(L)
(J)
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(L)
(J)
17881HOSE, AIR CLEANER, NO.1
(L)
TYPE B:REFER TO ILLUSTRATION
(J)
(J)
TYPE A:REFER TO ILLUSTRATION
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
AIR CLEANER SIDE
THROTTLE BODY SIDE
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
(L)
(L)
(J)
TYPE A:REFER TO ILLUSTRATION
17893RESONATOR, INTAKE AIR
(L)
(J)
17894ARESONATOR, INTAKE AIR, NO.2
(L)
(L)
(J)
(J)
TYPE A:REFER TO ILLUSTRATION
9011906340
main90119-06340
9011906374
main90119-06374
9017906178
main90179-06178
9046707136
main90467-07136
9166160840
main91661-60840
91661B0614
main91661-B0614
17 parts on this diagram · 6 diagrams in section
