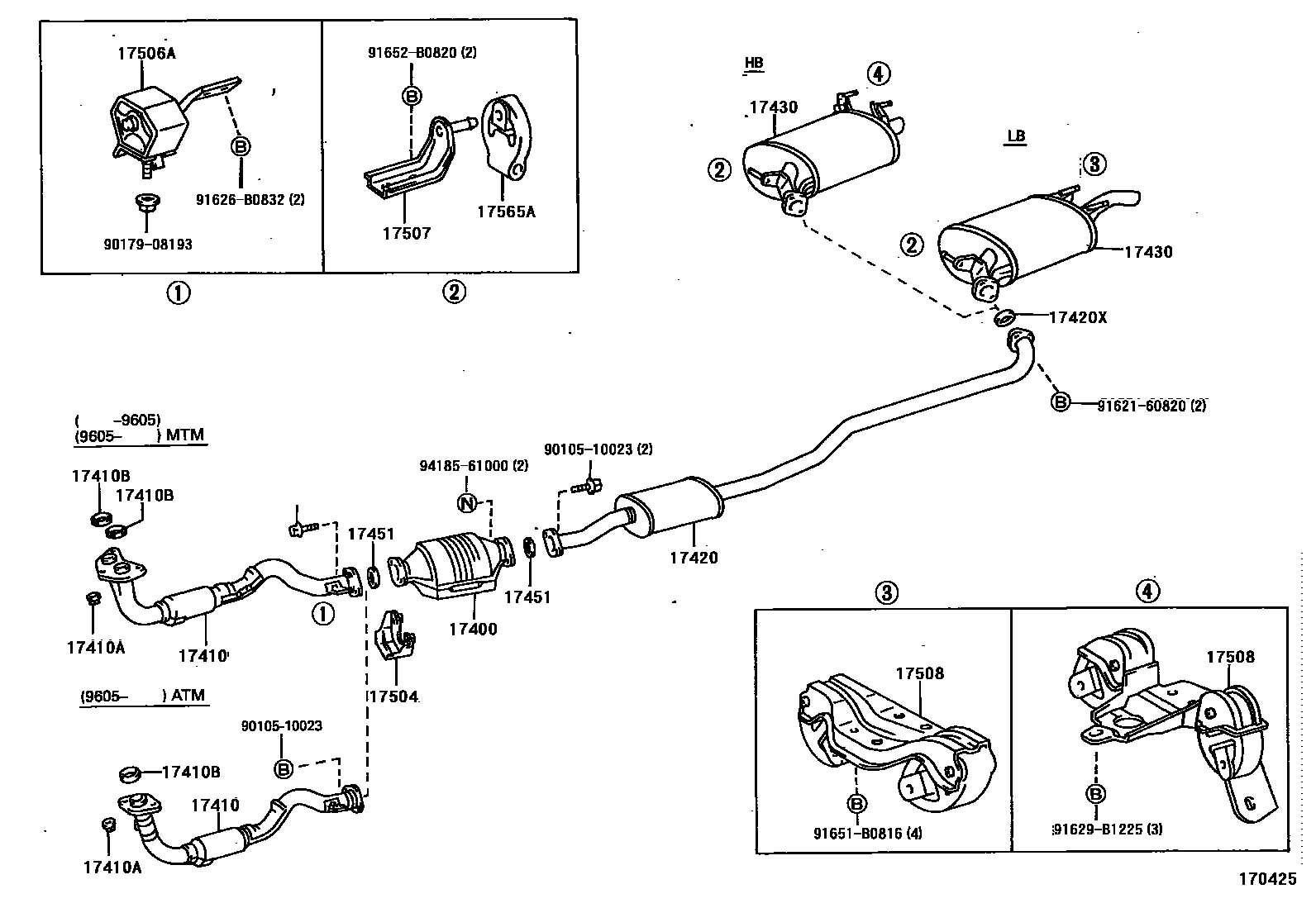

EXHAUST PIPE

0001 1 0003 1W/O(CONVERTER) 0004 1W(CONVERTER) 0005 1 0006 1 0007 1

17400CONVERTER ASSY, W/CATALYST

main18450-16250i4EFE..EE101199205-199505

main18450-16610i4AFE,7AFE..AE10#199205

main18450-64010i2C..CE100..LHD199305-199605

17410PIPE ASSY, EXHAUST, FRONT

main17410-11580i2E..EE100199205-199505

main17410-11610i4EFE..EE101199205-199505

main17410-11810i4EFE..EE101199505

main17410-1A030i4AFE..AE101199205-199605

main17410-1A040i7AFE..AE102199211-199505

main17410-1A360i4AFE..AE101..4FC199605

main17410-64532i2C..CE100199205-199305

main17410-64600i2C..CE100199305-199505

sub17410-64601

main17410-64601i2C..CE100199505

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i4AFE..AE101..5F199205-199605

17410BGASKET, EXHAUST PIPE

main90917-06061i4AFE,7AFE..AE10#199205-199605

main90917-06065i4AFE..AE101..4FC199605

main90917-06069i2E,4EFE..EE10#199205-199505

main90917-06077i2C..CE100199305

main90917-06080i4EFE..EE101199505

17420PIPE ASSY, EXHAUST, CENTER

main17420-11230i2E..EE100199205-199505

main17420-11350i4EFE..EE101199505

main17420-11360i4EFE..EE101199509

REPAIR PART

main17420-16580i4EFE..EE101199205-199505

sub17420-16630

main17420-16590i4AFE,7AFE..AE10#199205

main17420-64131i2C..CE100199205-199305

main17420-64200i2C..CE100..LHD199305-199605

W/O(CONVERTER)

main17420-64210i2C..CE100..LHD199305-199605

W(CONVERTER)

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06074i4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10#199205

17430PIPE ASSY, EXHAUST, TAIL

main17430-11640i4AFE,7AFE,4EFE..AE10#,EE101..LB199205-199505

main17430-1A220i2E..EE100..LB199205-199505

main17430-1A290i2E..EE100..HB199205-199505

main17430-1A300i4AFE,7AFE,4EFE..AE10#,EE101..HB199205

main17430-64680i2C..CE100..LB199205-199505

main17430-64770i2C..CE100..HB199205

sub17430-1A300

17451GASKET, EXHAUST PIPE

main90917-06043i4AFE,7AFE..AE10#199205

FRONT

main90917-06045i2C..CE100..LHD199305-199605

W(CONVERTER)

main90917-06045i4EFE..EE101199205-199505

main90917-06045i2C..CE100199305-199605

W/O(CONVERTER)

main90917-06057i4AFE,7AFE..AE10#199205

REAR

main90917-06074i2C,2E..CE100,EE100199205-199505

main90917-06082i4EFE..EE101199505

17504BRACKET SUB-ASSY, CATALYTIC CONVERTER

main17504-16011i4EFE..EE101199205-199505

main17504-42010i4AFE,7AFE..AE10#199205

main17582-41030i2C..CE100..LHD199305-199605

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-15070i2E..EE100199205-199502

sub17506-16120

main17506-15080i4EFE..EE101199505

main17506-16090i4AFE,7AFE,2C,4EFE..AE10#,CE100,EE101199205-199502

sub17506-16140

main17506-16120i2E..EE100..LB199502-199505

main17506-16140i4AFE,2C..AE101,CE100199502-199505

17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT

main17507-15040i4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10#199205

17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3

main17508-15050i4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10#..LB199205-199505

main17508-16070i4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10#..HB199205-199505

main17508-16080i4AFE,2C,4EFE..AE101,CE100,EE101199505

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-16230i4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10#199205

sub17565-28020

9010510023

main90105-10023

9017908193

main90179-08193

9162160820

main91621-60820

91626B0832

main91626-B0832

91629B1225

main91629-B1225

91651B0816

main91651-B0816

91652B0820

main91652-B0820

9418561000

main94185-61000

21 parts on this diagram · 6 diagrams in section
