V-BELT

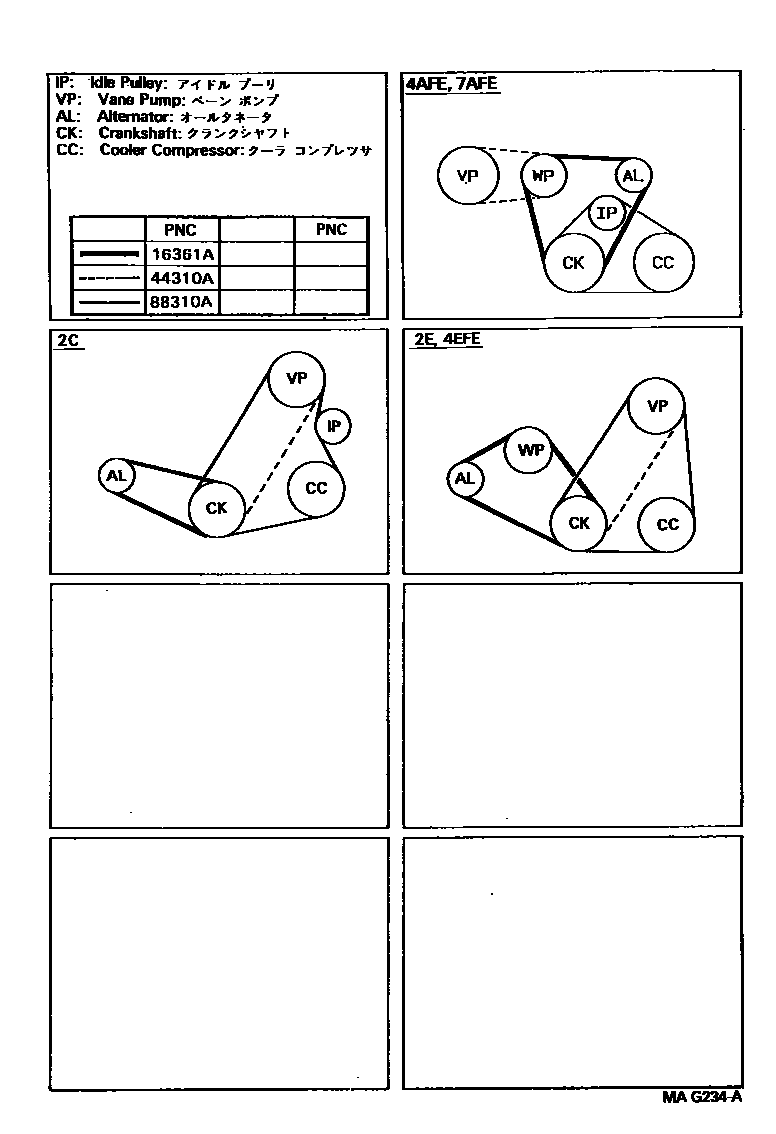

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91055i199301

(L)

main90916-02372i199205

main99364-20820i199205

main99365-20970i199205

(J)

44310ABELT, V(FOR VANE PUMP)

main90916-02256i199205-199305

main99363-50630i199205-199305

main99363-80630i199305-199605

main99363-90630i199605

main99365-50920i199205-199305

main99365-71110i199305-199505

main99365-80920i199305-199605

main99365-81110i199505-199605

main99365-90910i199605

W(POWER STEERING)

main99365-91110i199605

W(POWER STEERING)

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02354i199505-199704

main90916-02354i199512-199604

96 SPRING CAMPAIGN (SWITZERLAND)

main90916-02364i199205-199305

main99364-80860i199305-199505

main99365-20880i199205-199305

main99365-21070i199205-199704

W(*66 & POWER STEERING)

main99365-21070i199205-199505

W(POEWR STEERING)

main99365-21070i199206-199704

W(POEWR STEERING),MITUBOSI

main99365-21070i199505-199704

main99365-21080i199305-199509

W(POEWR STEERING),MITSUBOSHI

main99365-21080i199509-199704

W(POEWR STEERING)

main99365-21190i199401-199505

L=1190,EXHAUST EMISSION CONTROL(US'87) & W(*66 & POWER STEERING)

main99365-21190i199205-199505

L=1190,W(POEWR STEERING)

main99365-21190i199205-199305

L=1190,W(POEWR STEERING),MITSUBOSHI

main99365-21190i199505-199704

L=1190

main99365-21190i199505-199704

L=1190,W(*66 & POWER STEERING)

main99365-80890i199305-199704

main99365-81080i199305-199508

W(POEWR STEERING),BANDO

main99365-81120i199401-199505

L=1120,EXHAUST EMISSION CONTROL(US'87) & W(*66)

main99365-81120i199205-199704

L=1120

main99365-81190i199205-199305

W(POEWR STEERING),BANDO

3 parts on this diagram · 1 diagram in section
