RADIATOR & WATER OUTLET

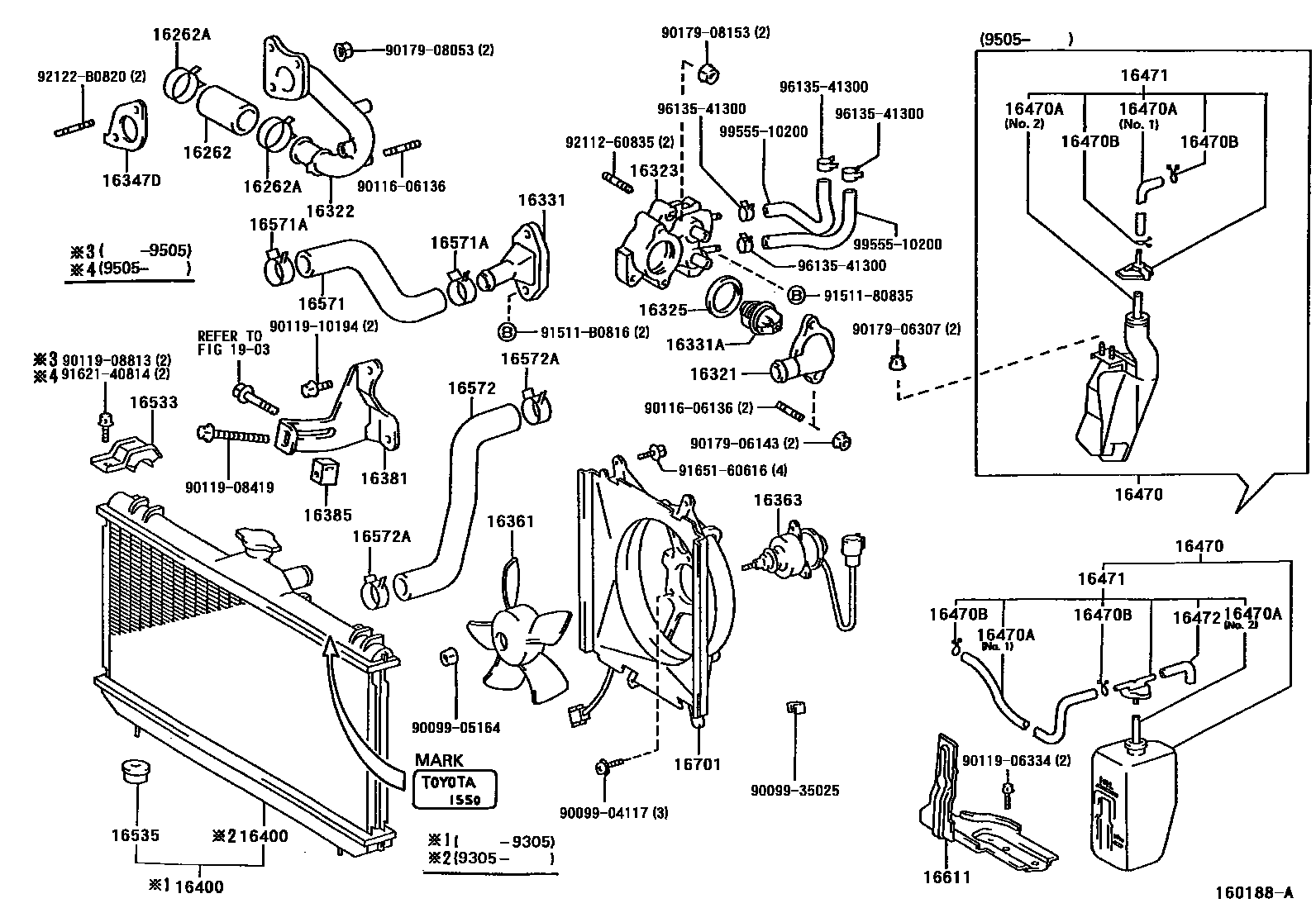

Parts diagram
16262HOSE, WATER INLET
main16262-10010i¥800199205-199410
sub16262-10011¥820
main16262-10011i¥820199410
main16262-10020i¥800199205-199410
sub16262-10022¥810
main16262-10022i¥810199410
main16262-15040i¥910199205
sub16262-16030¥900
16262ACLIP(FOR WATER INLET HOSE)
main90467-34003i¥400199205
sub90467-34004¥390
main90467-37002i¥480199205
sub90467-37005¥410
16321INLET, WATER
main16321-11011i¥2,530199205
main16321-15040i¥3,730199205
main16321-64020i¥3,780199205
16322PIPE, WATER INLET
main16322-11081i¥5,400199205-199505
sub16322-11091¥5,400
main16322-11161i¥4,770199205-199407
main16322-11162i¥4,760199407
main16322-15050i¥7,400199205
main16322-16060i¥6,100199211-199505
16323HOUSING, WATER INLET
main16323-16420i¥10,000199205
sub16323-16410¥10,000
16325GASKET, WATER INLET HOUSING, NO.1
main16325-63010i¥640199205-199301
sub16325-63011¥680
main16325-63011i¥680199301
16331OUTLET, WATER
main16331-15080i¥1,960199205
main16331-64030i¥6,600199404-199505
main16331-64070i¥5,500199205-199404
main16331-64120i¥12,800199505
16331ATHERMOSTAT
main90916-03046i¥1,740199205-199608
*WAX 82-95
main90916-03115i¥1,350199608-199704
*WAX 82-95
16347DGASKET, WATER BY-PASS
main16347-15010i¥130199205
16361FAN
main16361-02050i¥4,460199301-199307
EUROPE POSSESSION OR W(AIR CONDITIONER),NIPPONDENSO USA
main16361-02050i¥4,460199307-199505
EUROPE POSSESSION OR UNITED KINGDOM SPEC OR W(AIR CONDITIONER),NIPPONDENSO USA
main16361-02050i¥4,460199301
NIPPONDENSO USA
main16361-02050i¥4,460199301-199505
W(AIR CONDITIONER),NIPPONDENSO USA
main16361-11010i¥4,500199205-199505
main16361-11020i¥4,500199205-199505
W(AIR CONDITIONER)
main16361-11020i¥4,500199205-199505
EUROPE POSSESSION OR W(AIR CONDITIONER)
main16361-11020i¥4,500199301-199307
EUROPE POSSESSION OR W(AIR CONDITIONER),NIPPONDENSO JAPAN
main16361-11020i¥4,500199301-199505
W(AIR CONDITIONER),NIPPONDENSO JAPAN
main16361-11020i¥4,500199307-199505
EUROPE POSSESSION OR UNITED KINGDOM SPEC OR W(AIR CONDITIONER),NIPPONDENSO JAPAN
main16361-11020i¥4,500199205
main16361-11020i¥4,500199301
NIPPONDENSO JAPAN
main16361-63020i¥2,870199212
EUROPE POSSESSION & W(AIR CONDITIONER)
sub16361-74070¥4,110
16363MOTOR, COOLING FAN
main16363-02040i¥23,700199505-199605
(L)
main16363-02040i¥23,700199505-199605
W(AIR CONDITIONER),(L)
main16363-15120i¥21,900199205-199605
main16363-74020i¥23,700199205-199505
W(AIR CONDITIONER)
main16363-74020i¥23,700199307-199505
EUROPE POSSESSION OR ENGLAND SPEC OR W(AIR CONDITIONER)
main16363-74020i¥23,700199205-199605
(J)
main16363-74020i¥23,700199205-199605
W(AIR CONDITIONER),(J)
main16363-74020i¥23,700199205
16381BAR, FAN BELT ADJUSTING
main16381-11030i¥680199205
main16381-15080i¥2,340199205
main16381-64080i¥1,790199205
16385SLIDER, FAN BELT ADJUSTING
main16385-15020i¥930199205
sub16385-15030¥840
main16385-64011i¥910199205
16400RADIATOR ASSY
main16400-15500i¥35,000199205-199305
MARK 1550
sub16400-15501¥40,300
sub16535-74010¥880
main16400-15501i¥40,300199305-199704
MARK 1550
sub16400-16690¥44,300
main16400-15530i¥31,500199205-199305
MARK 1553
sub16400-15531¥31,500
sub16535-74010¥880
main16400-15531i¥31,500199305-199505
MARK 1553
sub16400-15690¥36,300
main16400-15690i¥36,300199505-199704
MARK 1569
sub16400-16660¥36,300
main16400-15690i¥36,300199512-199604
'96 SPRING CAMPAIGN(SWITZERLAND)
sub16400-16660¥36,300
main16400-16490i¥28,300199205-199305
MARK 1649
sub16400-16491¥32,600
sub16535-74010¥880
main16400-16491i¥32,600199305-199704
MARK 1649
sub16400-16620¥32,600
main16400-64630i¥34,700199205-199305
MARK 6463
sub16400-64631¥39,900
sub16535-74070¥2,570
main16400-64631i¥39,900199305
MARK 6463
sub16400-6A070¥44,000
main16400-64650i¥34,900199205-199305
MARK 6465
sub16400-64651¥40,200
sub16535-74070¥2,570
main16400-64651i¥40,200199305-199505
MARK 6465
sub16400-6A060¥41,200
main16400-64720i¥34,900199205-199305
MARK 6472
sub16400-64721¥44,200
sub16535-74070¥2,570
main16400-64721i¥44,200199305
MARK 6472
16470TANK ASSY, RADIATOR RESERVE
main16470-15080i¥2,890199205-199305
sub16470-15081¥2,890
main16470-15081i¥2,890199305-199505
main16470-15090i¥2,870199505
main16470-64130i¥2,370199205
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
main16471-15080i199205-199505
NO.1
main16471-64130i199205
NO.2
main16478-15090i199505
NO.1
main16478-64130i199205
NO.1
main90445-12078i¥580199505
NO.2
main90445-12078i¥580199205-199505
L=600(*H,L=170),NO.2
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
main90467-11085i¥100199205
16471CAP SUB-ASSY, RESERVE TANK
main16405-15090i199205-199305
sub16405-15091
main16405-15091i199305-199505
main16405-15100i199505
main16405-64080i199205
16472HOSE, BREATHER
main16477-15080i199205-199505
main16477-64130i199205
16533SUPPORT, RADIATOR, UPPER
main16533-02020i¥3,650199301
(L)
main16533-02020i¥3,650199305
W(ABS),(L),RH
main16533-15120i¥3,650199205
(J)
main16533-15120i¥3,650199305
W(ABS),(J),RH
main16533-15130i¥3,990199305
W(ABS),LH
main16533-64120i¥3,500199205
main16533-64120i¥3,500199305
W(ABS),RH
main16533-64160i¥3,590199305
W(ABS),LH
16535SUPPORT, RADIATOR, LOWER
main16535-15050i¥2,220199205-199211
TOYOTA GOUSEI
sub16535-74010¥880
main16535-74010i¥880199211-199301
W(AIR CONDITIONER),MARUYASU
sub90916-04002¥840
main16535-74010i¥880199205-199211
MARUYASU
sub90916-04002¥840
main16535-74010i¥880199206-199301
W(AIR CONDITIONER),TOYOTA GOUSEI
sub90916-04002¥840
main16535-74010i¥880199206-199301
EUROPE POSSESSION OR W(AIR CONDITIONER),TOYOTA GOUSEI
sub90916-04002¥840
main16535-74010i¥880199211-199301
EUROPE POSSESSION OR W(AIR CONDITIONER),MARUYASU
sub90916-04002¥840
main16535-74010i¥880199205-199505
sub90916-04002¥840
main16535-74070i¥2,570199205
main90916-04002i¥840199505
MARUYASU
main90916-04003i¥350199505
TOYOTA GOUSEI
16571HOSE, RADIATOR, INLET
main16571-02030i¥1,010199505
(L)
main16571-02040i¥1,010199301
main16571-02060i199301-199505
(L)
main16571-11130i¥1,620199205
main16571-15160i¥1,600199205
(J)
main16571-16180i¥1,260199211-199505
(J)
main16571-64160i¥1,610199205-199505
main16571-64250i¥1,620199505
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
main90467-31003i¥240199205
ENGINE SIDE
main90467-34003i¥400199205
RADIATOR SIDE
sub90467-34004¥390
main90467-34003i¥400199205-199505
sub90467-34004¥390
main90467-37002i¥480199505-199601
ENGINE SIDE
sub90467-37005¥410
main90467-37005i¥410199601
ENGINE SIDE
16572HOSE, RADIATOR, OUTLET
main16572-02030i¥2,600199301
(L)
main16572-02050i199301-199505
(L)
main16572-11220i¥2,620199205
main16572-11230i¥2,390199205-199612
sub16572-11231¥2,390
main16572-11231i¥2,390199612
main16572-15210i¥2,600199205
(J)
main16572-16150i¥2,390199211-199505
(J)
main16572-64200i¥1,970199205
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
main90467-31003i¥240199205
ENGINE SIDE
main90467-34003i¥400199205
RADIATOR SIDE
sub90467-34004¥390
main90467-37002i¥480199205
INLET SIDE
sub90467-37005¥410
16611BRACKET, RADIATOR RESERVE TANK
main16611-15020i¥1,940199205-199505
16701SHROUD SUB-ASSY, FAN
main16711-02050i199301-199308
NIPPONDENSO USA
sub16711-02051¥6,900
main16711-02050i199301-199307
EUROPE POSSESSION OR W(AIR CONDITIONER),NIPPONDENSO USA
sub16711-02051¥6,900
main16711-02050i199301-199308
W(AIR CONDITIONER),NIPPONDENSO USA
sub16711-02051¥6,900
main16711-02050i199307-199308
EUROPE POSSESSION OR UNITED KINGDOM SPEC OR W(AIR CONDITIONER),NIPPONDENSO USA
sub16711-02051¥6,900
main16711-02051i¥6,900199308-199505
W(AIR CONDITIONER),NIPPONDENSO USA
main16711-02051i¥6,900199308-199505
EUROPE POSSESSION OR UNITED KINGDOM SPEC OR W(AIR CONDITIONER),NIPPONDENSO USA
main16711-02051i¥6,900199308-199704
NIPPONDENSO USA
main16711-15260i¥8,100199205-199308
sub16711-15261¥8,000
main16711-15261i¥8,000199308-199505
main16711-15270i¥8,100199205-199301
EUROPE POSSESSION OR W(AIR CONDITIONER)
sub16711-15271¥8,000
main16711-15270i¥8,100199205-199301
W(AIR CONDITIONER)
sub16711-15271¥8,000
main16711-15270i¥8,100199301-199307
EUROPE POSSESSION OR W(AIR CONDITIONER),NIPPONDENSO JAPAN
sub16711-15271¥8,000
main16711-15270i¥8,100199301-199308
NIPPONDENSO JAPAN
sub16711-15271¥8,000
main16711-15270i¥8,100199301-199308
W(AIR CONDITIONER),NIPPONDENSO JAPAN
sub16711-15271¥8,000
main16711-15270i¥8,100199307-199308
EUROPE POSSESSION OR UNITED KINGDOM SPEC OR W(AIR CONDITIONER),NIPPONDENSO JAPAN
sub16711-15271¥8,000
main16711-15271i¥8,000199308-199505
W(AIR CONDITIONER),NIPPONDENSO JAPAN
main16711-15271i¥8,000199308-199505
EUROPE POSSESSION OR UNITED KINGDOM SPEC OR W(AIR CONDITIONER),NIPPONDENSO JAPAN
main16711-15271i¥8,000199308-199704
NIPPONDENSO JAPAN
main16711-15280i¥7,000199212-199307
EUROPE POSSESSION & W(AIR CONDITIONER)
sub16711-15281¥6,900
main16711-15281i¥6,900199307-199704
EUROPE POSSESSION & W(AIR CONDITIONER)
main16711-16220i¥7,000199205-199308
sub16711-16221¥6,900
main16711-16221i¥6,900199308
main16711-16230i¥7,000199205-199308
W(AIR CONDITIONER)
sub16711-16231¥7,000
main16711-16231i¥7,000199308
main16711-16231i¥7,000199308-199505
W(AIR CONDITIONER)
main16711-64300i¥7,100199205-199309
EUROPE POSSESSION OR W(AIR CONDITIONER)
sub16711-64301¥7,200
main16711-64300i¥7,100199205-199309
W(AIR CONDITIONER)
sub16711-64301¥7,200
main16711-64301i¥7,200199309-199505
EUROPE POSSESSION OR W(AIR CONDITIONER)
main16711-64301i¥7,200199309-199505
W(AIR CONDITIONER)
main16711-64301i¥7,200199309
main16711-64400i¥7,100199205-199309
sub16711-64401¥7,100
main16711-64401i¥7,100199309-199505
1903
9009904117
main90099-04117
9009905164
main90099-05164¥0
9009935025
main90099-35025
9011606136
main90116-06136¥130
9011906334
main90119-06334¥120
9011908419
main90119-08419¥280
9011908813
main90119-08813¥160
9011910194
main90119-10194¥190
9017906143
main90179-06143¥80
9017906307
main90179-06307¥120
9017908053
main90179-08053¥140
9017908153
main90179-08153¥90
9151180835
main91511-80835¥90
91511B0816
main91511-B0816¥90
9162140814
main91621-40814¥90
9165160616
main91651-60616¥100
9211260835
main92112-60835¥190
92122B0820
main92122-B0820¥160
9613541300
main96135-41300¥140
9955510200
main99555-10200¥320

48 parts on this diagram · 9 diagrams in section
