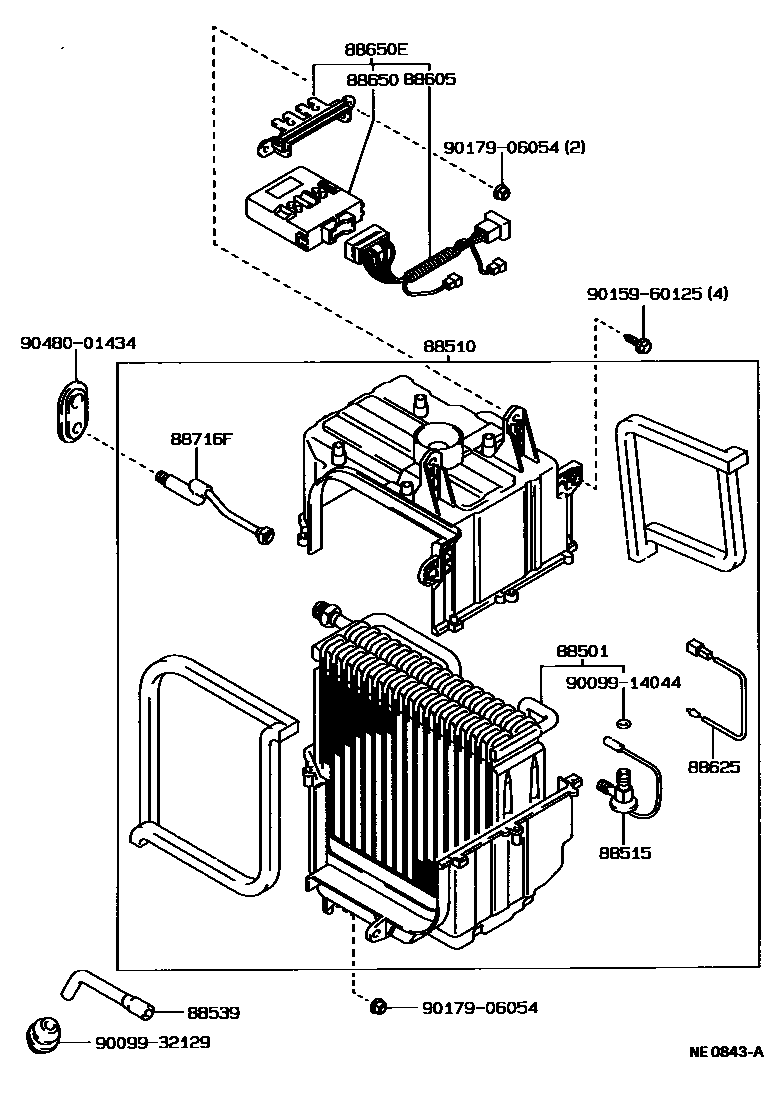

HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12340iCE90,EE90..LHD..3D..(CBR,DSL)198705-199206

88510UNIT ASSY, COOLER

main88510-12760iAE92,CE90,EE90..LHD..(CBR,DSL)198705-199206

88515VALVE, COOLER EXPANSION

main88515-16040iCE90,EE90..LHD..5D..(CBR,DSL)¥7,100198705-199206

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-12100iAE92..CBR198705-199206

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-1A270iEE90..LHD198705-198908

main88605-1A291iEE90..LHD..CBR198908-198911

W(POWER STEERING)

sub88605-1A292

main88605-1A292iEE90..LHD..3D..CBR198911-199206

W(POWER STEERING)

main88605-1A292iEE90..LHD..CBR199009-199106

main88605-1A350iCE90..LHD198705-199206

main88605-1A370iCE90..LHD..XL198705-199206

W(POWER STEERING)

main88605-1E170iAE92..CBR198807-198908

main88605-1E171iAE92..CBR198908-198911

sub88605-1E172

main88605-1E172iEE90..LHD..CBR198911-199206

88625THERMISTOR, COOLER, NO.1

main88625-12230iAE92,CE90,EE90..LHD..(CBR,DSL)199106-199206

main88625-32040iCE90,EE90..LHD..3D..(CBR,DSL)198705-199106

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-12610iEE90..LHD..(GL,XL)198705-198908

W(POWER STEERING)

main88650-12670iAE92..CBR198705-198908

main88650-12710iCE90..STD198705-199206

main88650-12720iCE90..LHD..XL198705-199206

W(POWER STEERING)

main88650-1A010iEE90..LHD..(GL,XL)198705-198908

main88650-1A240iAE92,EE90..LHD..CBR198908-199206

sub88650-1A500

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-12460iAE92..CBR198705-198807

sub88650-12461

main88650-12461iAE92..CBR198807-198908

main88650-12462iEE90..LHD..CBR198908-198911

sub88650-12463

main88650-12463iEE90..LHD..CBR198911-199206

main88650-12481iEE90..LHD..CBR198908-198911

W(POWER STEERING)

sub88650-12482

main88650-12482iEE90..LHD..3D..CBR198911-199206

W(POWER STEERING)

main88650-12482iEE90..LHD..CBR199009-199106

main88650-12540iCE90..LHD198705-199206

main88650-12560iCE90..LHD..XL198705-199206

W(POWER STEERING)

main88650-1A020iEE90..LHD198705-198908

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88726-12310iAE92..CBR198705-199206

9009914044

main90099-14044

9009932129

main90099-32129

9015960125

main90159-60125¥120

9017906054

main90179-06054¥100

9048001434

main90480-01434

14 parts on this diagram · 1 diagram in section
