153520
›

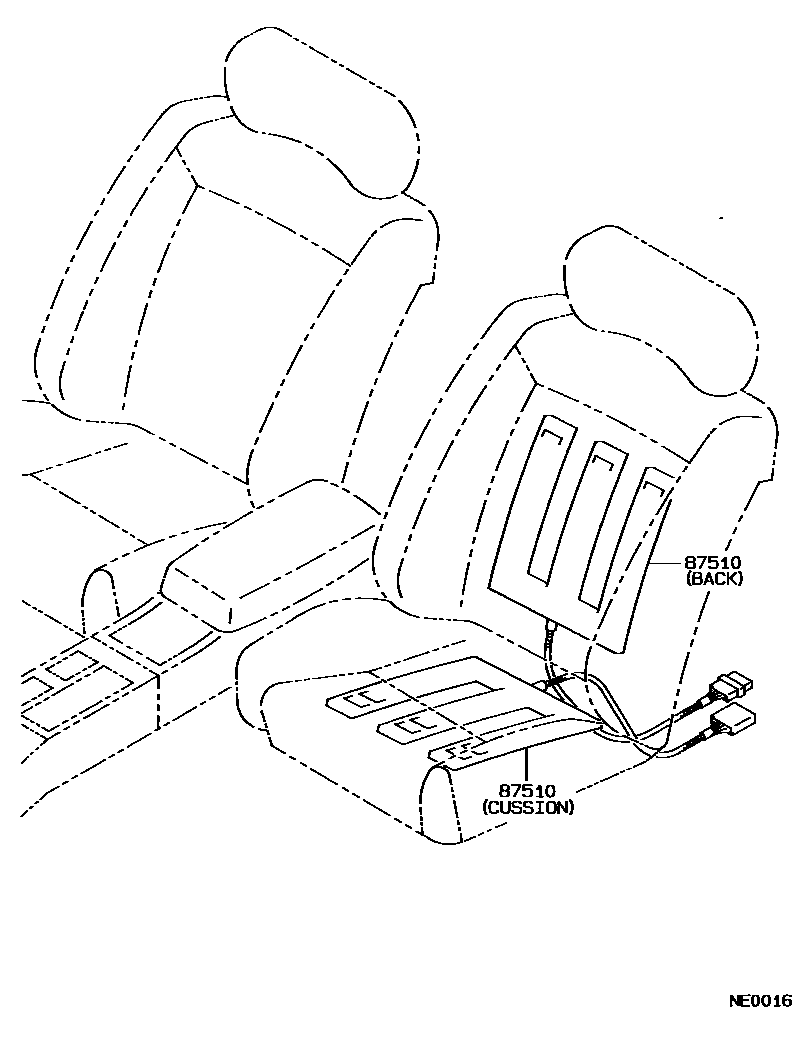

SEAT MOTOR & SEAT HEATER
SEAT MOTOR & SEAT HEATER
87510
HEATER ASSY, SEAT
main
87510-12070
i
AE92..LHD
198705-199211
CUSHION
main
87510-12070
i
AE92,CE90,EE90..LHD..(GL,GLI,SR5,XL,XLI)
198908-199211
CHSHION
main
87510-12080
i
AE92..LHD
198705-199206
BACK
main
87510-12110
i
AE92..LHD..EFI
198708-199211
BACK
1 parts on this diagram · 1 diagram in section
